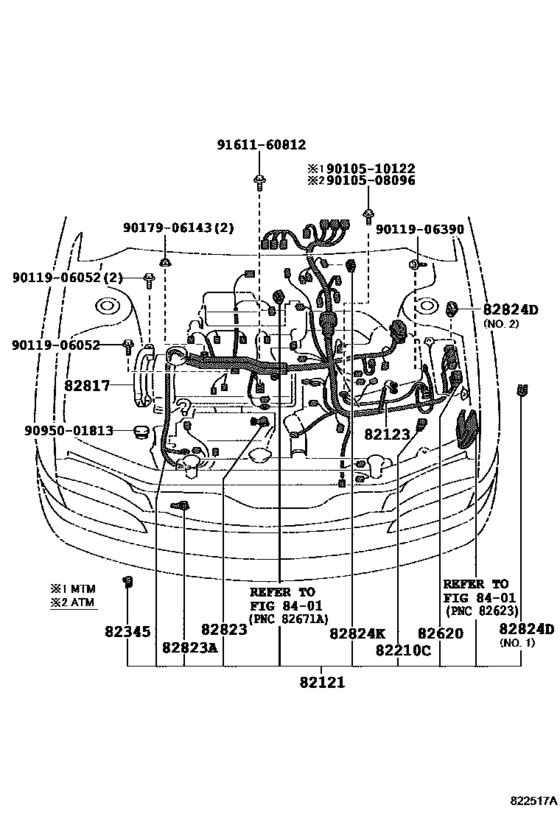

Wiring & Clamp ([08.1995 - ] ｴﾝｼﾞﾝ (9508- )ROSSO,STOUR,VTOUR,ZTOUR) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-1L391 Wire, Engine[05.1996 - 04.1997] AE111..(STOUR,ZTOUR)..4FC |
82121-1L391 |
US $658.11 |
||
|
82121
|
82121
82121-1N520 Wire, Engine[04.1997 - 04.1998] AE111..(STOUR,ZTOUR)..4FC |
82121-1N520 |
US $659.57 |
||
|
82121
|
82121
82121-1N521 Wire, Engine[04.1998 - 07.2002] AE111..(ROSSO,STOUR,ZTOUR)..4FC |
82121-1N521 |
US $659.57 |
||
|
82123
|
82123
82123-12290
Wire, Engine, No.3
[08.1995 - 04.1997] AE11# |
82123-12290 |
— | ||
|
82210C
|
82210C
90982-08228 Fusible Link[08.1995 - 04.1997] AE11# ５０Ａ，オス端子 |
90982-08228 |
US $10.39 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[08.1995 - 04.1997] AE11# １００Ａ，オス端子 |
90982-08246 |
from US $7.29 |
||
|
82210C
|
82210C
90982-08257 Fusible Link[08.1995 - 04.1997] AE11# ４０Ａ，オス端子 |
90982-08257 |
US $12.54 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[04.1997 - 07.2002] AE11# ３０Ａ，メス端子 |
90982-08280 |
from US $3.88 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[08.1995 - 04.1997] AE11# ５０Ａ，メス端子 |
90982-08282 |
from US $7.88 |
||
|
82620
|
82620
82620-12240 Block Assy, Fusible Link[05.1996 - 04.1997] AE11# |
82620-12240 |
US $11.36 |
||
|
82817
|
82817
82817-1A070 Protector, Wiring Harness, No.1[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
82817-1A070 |
from US $10.12 |
||
|
82823
|
82823
82823-12090 Cap, Terminal, No.1[08.1995 - 04.1997] AE11# |
82823-12090 |
US $11.15 |
||
|
82823A
|
82823A
82823-22060 Cap, Terminal, No.1[08.1995 - 04.1997] AE11# |
82823-22060 |
US $16.31 |
||
|
82824D
|
82824D
82824-24010 Connector, Wiring Harness[08.1995 - 04.1997] AE11# ＮＯ．２ |
82824-24010 |
US $4.54 |
||
|
82824K
|
82824K
82824-12210 Block, Junction[04.1997 - 07.2002] AE11# |
82824-12210 |
US $35.64 |
||
|
82824K
|
82824K
82824-30130 Connector, Wiring Harness[08.1995 - 04.1997] AE11# |
82824-30130 |
US $3.94 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906052
|
9011906052
90119-06052 New Genuine Part |
90119-06052 |
US $2.15 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9095001813
|
9095001813
90950-01813 New Genuine Part |
90950-01813 |
US $1.60 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
