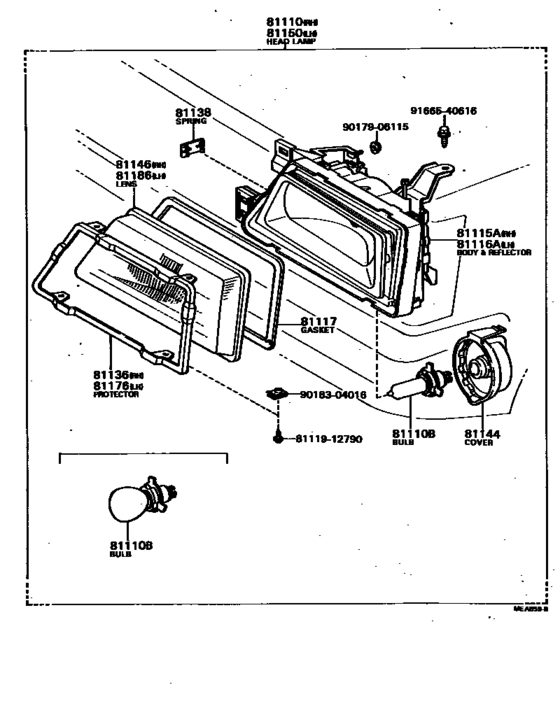

Headlamp ([08.1981 - ] (8108- )2D) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- AE70
- grade
- SE
- body
- LB
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 03.1979
- To
- 04.1983
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-80023
Headlamp Assy, Rh
[03.1979 - 08.1981] AE70,KE70,TE7# KOITO |
81110-80023 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-12570 Headlamp Assy, Rh[03.1979 - 08.1981] AE70,KE70,TE7# KOITO |
81110-12570 |
US $173.26 |
||
|
81110
|
81110
81110-80024
Headlamp Assy, Rh
[03.1979 - 08.1981] AE70,KE70,TE7# IKI |
81110-80024 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-12580 Headlamp Assy, Rh[03.1979 - 08.1981] AE70,KE70,TE7# IKI |
81110-12580 |
US $195.10 |
||
|
81110
|
81110
81110-80025 Headlamp Assy, RhRH [03.1979 - 08.1981] AE70,KE70,TE7# SEMI-SEALED TYPE,HALOGEN |
81110-80025 |
US $267.90 |
||
|
81110
|
81110
81110-80167 Headlamp Assy, RhRH [08.1981 - 04.1983] AE70,KE70,TE71..(DX,SE,SR,SX,TRS,XL)..2D |
81110-80167 |
US $339.25 |
||
|
81110
|
81110
81110-80168 Headlamp Assy, RhRH [08.1981 - 04.1983] AE70,KE70,TE71..2D HALOGEN |
81110-80168 |
US $359.63 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[03.1979 - 04.1983] AE70,CE70,KE70,TE7# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W,HALOGEN |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [03.1979 - 04.1983] AE70,CE70,KE70,TE7# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W,HALOGEN |
90981-13058 |
from US $30.40 |
||
|
81110B
|
81110B
90981-13022 Bulb(For Headlamp, No.1)[08.1981 - 04.1983] AE70,CE70,KE70,TE71..DX,SE,SPD,SR,SX,TRS,XL １２Ｖ ６５／６０Ｗ，ホワイト,12V 65/60W |
90981-13022 |
US $21.84 |
||
|
81115A
|
81115A
81135-12810
Body And Reflector Sub-Assy, Headlamp, Rh
[08.1981 - 04.1983] AE70,KE70,TE71..(DX,SE,SR,SX,TRS,XL)..2D |
81135-12810 |
— | ||
|
81115A
|
81115A
81135-12820
Body And Reflector Sub-Assy, Headlamp, Rh
[08.1981 - 04.1983] AE70,KE70,TE71..2D HALOGEN |
81135-12820 |
— | ||
|
81116A
|
81116A
81175-12740
Body And Reflector Sub-Assy, Headlamp, Lh
[08.1981 - 04.1983] AE70,KE70,TE71..(DX,SE,SR,SX,TRS,XL)..2D |
81175-12740 |
— | ||
|
81116A
|
81116A
81175-12750
Body And Reflector Sub-Assy, Headlamp, Lh
[08.1981 - 04.1983] AE70,KE70,TE71..2D HALOGEN |
81175-12750 |
— | ||
|
81117
|
81117
81147-12800 Packing, Headlamp HousingHEADLAMP HOUSING [08.1981 - 04.1983] AE70,CE70,KE70,TE71 |
81147-12800 |
US $22.13 |
||
|
81136
|
81136
81116-12820 Protector, Headlamp, No.1 RhHEADLAMP, NO.1 RH [08.1981 - 04.1983] AE70,KE70,TE71..2D |
81116-12820 |
US $21.55 |
||
|
81138
|
81138
81138-20550 Spring, Headlamp[08.1981 - 04.1983] AE70,CE70,KE70,TE71 |
81138-20550 |
US $3.20 |
||
|
81144
|
81144
81139-30490
Cover, Sealed Beam Unit
[08.1981 - 04.1983] AE70,CE70,KE70,TE71 |
81139-30490 |
— | ||
|
81146
|
81146
81146-12800 Lens, Headlamp, RhHEADLAMP, RH [08.1981 - 04.1983] AE70,CE70,KE70,TE71 |
81146-12800 |
US $103.38 |
||
|
81150
|
81150
81150-80023
Headlamp Assy, Lh
[03.1979 - 08.1981] AE70,KE70,TE7# KOITO |
81150-80023 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-12500
Headlamp Assy, Lh
[03.1979 - 08.1981] AE70,KE70,TE7# KOITO |
81150-12500 |
— | ||
|
81150
|
81150
81150-80024
Headlamp Assy, Lh
[03.1979 - 08.1981] AE70,KE70,TE7# IKI |
81150-80024 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-12510
Headlamp Assy, Lh
[03.1979 - 08.1981] AE70,KE70,TE7# IKI |
81150-12510 |
— | ||
|
81150
|
81150
81150-80025 Headlamp Assy, LhLH [03.1979 - 08.1981] AE70,KE70,TE7# SEMI-SEALED TYPE,HALOGEN |
81150-80025 |
US $267.90 |
||
|
81150
|
81150
81150-80164 Headlamp Assy, LhLH [08.1981 - 04.1983] AE70,KE70,TE71..(DX,SE,SR,SX,TRS,XL)..2D |
81150-80164 |
US $339.25 |
||
|
81150
|
81150
81150-80165 Headlamp Assy, LhLH [08.1981 - 04.1983] AE70,KE70,TE71..2D HALOGEN |
81150-80165 |
US $359.63 |
||
|
81176
|
81176
81156-12750
Protector, Headlamp, No.1 Lh
[08.1981 - 04.1983] AE70,KE70,TE71..2D |
81156-12750 |
— | ||
|
81186
|
81186
81186-12730
Lens, Headlamp, Lh
[08.1981 - 04.1983] AE70,CE70,KE70,TE71 |
81186-12730 |
— | ||
|
8111912790
|
8111912790
81119-12790 Screw, Headlamp |
81119-12790 |
US $2.18 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9018304016
|
9018304016
90183-04016 Nut, Spring |
90183-04016 |
US $1.02 |
||
| replacement | |||||
|
9018304016
|
9018304016
90183-04020
Nut, Spring
|
90183-04020 |
— | ||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
