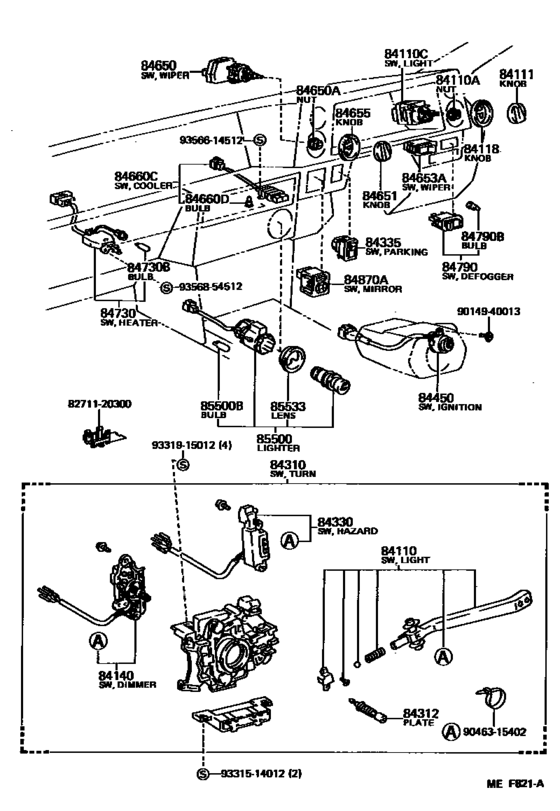

Switch & Relay & Computer ([05.1983 - ] (8305- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- SE
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- SPRINTER TRUENO
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- SPRINTER TRUENO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-19545
Switch Assy, Light Control, No.1
[05.1983 - 04.1987] AE8# |
84112-19545 |
— | ||
|
84110A
|
84110A
90179-14010 Bolt Or Nut, Light Control Switch SetLIGHT CONTROL SWITCH SET [05.1983 - 04.1987] AE8# |
90179-14010 |
US $5.28 |
||
|
84110C
|
84110C
84110-12120 Switch Assy, Light Control, No.2LIGHT CONTROL, NO.2 [05.1983 - 01.1984] AE8#..APX,SE |
84110-12120 |
US $152.64 |
||
|
84111
|
84111
84111-12060 Knob, Light Control SwitchLIGHT CONTROL SWITCH [05.1983 - 04.1987] AE8# |
84111-12060 |
US $15.84 |
||
|
84118
|
84118
84118-12050 Knob, Light Control RheostatLIGHT CONTROL RHEOSTAT [05.1983 - 04.1987] AE8#..APX,SE W/RHEOSTAT |
84118-12050 |
US $13.10 |
||
| replacement | |||||
|
84118
|
84118
84118-12040 Knob, Light Control RheostatWINDSHIELD WIPER VOLUME SWITCH [05.1983 - 04.1987] AE8#..APX,SE W/RHEOSTAT |
84118-12040 |
US $15.68 |
||
|
84140
|
84140
84140-19285 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [05.1983 - 04.1987] AE8# |
84140-19285 |
US $38.44 |
||
| replacement | |||||
|
84140
|
84140
84140-24010 Switch Assy, Headlamp Dimmer[05.1983 - 04.1987] AE8# |
84140-24010 |
US $62.67 |
||
|
84310
|
84310
84310-12500 Switch Assy, Turn SignalTURN SIGNAL [05.1983 - 04.1987] AE8# |
84310-12500 |
US $139.12 |
||
|
84312
|
84312
84312-32010 Plate, Horn Contact[05.1983 - 04.1987] AE8# |
84312-32010 |
from US $8.13 |
||
|
84330
|
84330
84332-19255 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [05.1983 - 04.1987] AE8# |
84332-19255 |
US $48.63 |
||
|
84335
|
84335
84330-12120
Switch Assy, Parking Lamp
[05.1985 - 04.1987] AE8# |
84330-12120 |
— | ||
|
84335
|
84335
84330-14110
Switch Assy, Parking Lamp
[05.1983 - 05.1985] AE8# |
84330-14110 |
— | ||
|
84450
|
84450
84450-12120 Switch Assy, Ignition Or Starter[05.1983 - 09.1986] AE8# |
84450-12120 |
US $76.96 |
||
|
84450
|
84450
84450-17030 Switch Assy, Ignition Or Starter[09.1986 - 04.1987] AE8# |
84450-17030 |
US $58.82 |
||
| replacement | |||||
|
84450
|
84450
84450-17020 Switch Assy, Ignition Or StarterIGNITION OR STARTER [09.1986 - 04.1987] AE8# |
84450-17020 |
US $66.42 |
||
|
84650
|
84650
84650-12050
Switch Assy, Windshield Wiper
[05.1983 - 04.1987] AE8#..APX,SE |
84650-12050 |
— | ||
|
84650A
|
84650A
90179-14010 Bolt Or Nut, Light Control Switch SetLIGHT CONTROL SWITCH SET [05.1983 - 04.1987] AE8# |
90179-14010 |
US $5.28 |
||
|
84651
|
84651
84651-12040 Knob, Windshield Wiper SwitchWINDSHIELD WIPER SWITCH [05.1983 - 04.1987] AE8# |
84651-12040 |
US $14.56 |
||
|
84655
|
84655
84655-12010 Knob, Windshield Wiper Volume Switch[05.1983 - 04.1987] AE8#..APX,SE |
84655-12010 |
US $12.23 |
||
| replacement | |||||
|
84655
|
84655
84118-12040 Knob, Light Control RheostatWINDSHIELD WIPER VOLUME SWITCH [05.1983 - 04.1987] AE8#..APX,SE |
84118-12040 |
US $15.68 |
||
|
84660C
|
84660C
84660-12070 Switch, CoolerCOOLER [05.1983 - 05.1985] AE8# |
84660-12070 |
US $67.85 |
||
| replacement | |||||
|
84660C
|
84660C
84660-12071 Switch, CoolerCOOLER [05.1983 - 05.1985] AE8# |
84660-12071 |
US $68.43 |
||
|
84660C
|
84660C
84660-12071 Switch, CoolerCOOLER [05.1985 - 04.1987] AE8# |
84660-12071 |
US $68.43 |
||
|
84660D
|
84660D
88607-12010
Bulb(For Cooler Switch)
[05.1983 - 04.1987] AE8# |
88607-12010 |
— | ||
|
84730
|
84730
84732-12140 Switch Assy, Heater BlowerHEATER BLOWER [05.1983 - 04.1987] AE8# |
84732-12140 |
US $59.40 |
||
|
84730
|
84730
84732-12150 Switch Assy, Heater BlowerHEATER BLOWER [05.1983 - 04.1987] AE8# W/*AAC |
84732-12150 |
US $59.55 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[05.1983 - 04.1987] AE8# １４Ｖ １．４Ｗ,12V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84790
|
84790
84790-12120 Switch Assy, Rear Window Defogger[05.1983 - 04.1984] AE8# |
84790-12120 |
US $62.47 |
||
|
84790
|
84790
84790-12131 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [04.1984 - 04.1987] AE8# MATSUSHITA |
84790-12131 |
US $56.06 |
||
|
84790B
|
84790B
84999-10110 Bulb, Indicator Lamp[05.1983 - 04.1984] AE8# １２Ｖ １．１２Ｗ |
84999-10110 |
US $7.20 |
||
|
84790B
|
84790B
84999-20060 Bulb(For Rear Window Defogger Switch)[04.1984 - 04.1987] AE8# MATSUSHITA |
84999-20060 |
US $5.53 |
||
|
84870A
|
84870A
84870-22040
Switch Assy, Outer Mirror
[05.1983 - 05.1985] AE8#..APX,SE,XL |
84870-22040 |
— | ||
|
85500
|
85500
85500-12190
Lighter Assy, Cigarette
[05.1983 - 04.1987] AE8# |
85500-12190 |
— | ||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[05.1983 - 04.1987] AE8# １４Ｖ １．４Ｗ,12V 1.4W |
90981-11014 |
from US $1.92 |
||
|
85533
|
85533
85533-20011
Lens, Cigarette Lighter Indicator
[05.1983 - 04.1987] AE8# |
85533-20011 |
— | ||
|
8271120300
|
8271120300
82711-20300 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20300 |
US $9.17 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.12 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
