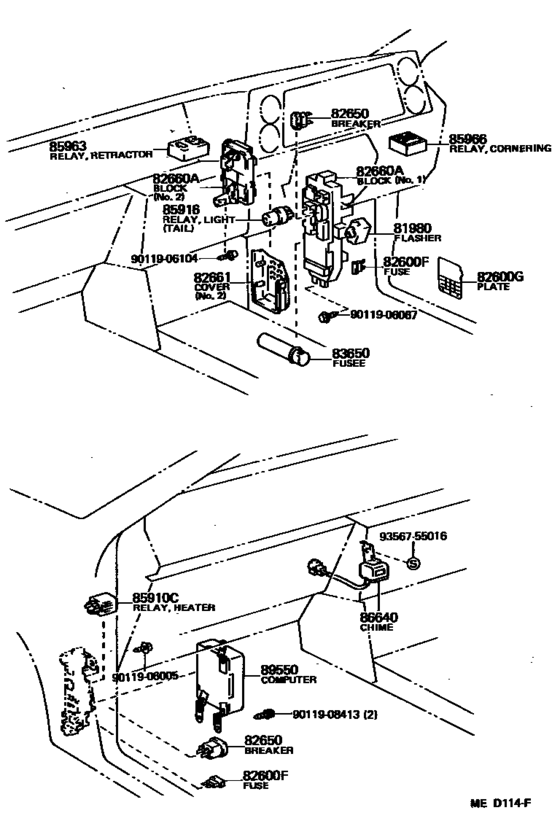

Switch & Relay & Computer ([05.1983 - ] (8305- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- SE
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- SPRINTER TRUENO
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- SPRINTER TRUENO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[08.1985 - 04.1987] AE8# |
81980-16010 |
US $121.36 |
||
|
81980
|
81980
81980-22070
Flasher Assy, Turn Signal
[05.1983 - 08.1985] AE8# |
81980-22070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[05.1983 - 08.1985] AE8# |
81980-16010 |
US $121.36 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[05.1983 - 04.1987] AE8# ３０Ａ,30A |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[05.1983 - 04.1987] AE8# １０Ａ,10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[05.1983 - 04.1987] AE8# １５Ａ,15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[05.1983 - 04.1987] AE8# ２０Ａ,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[05.1983 - 04.1987] AE8# ７．５Ａ,7.5A |
90982-09005 |
from US $1.09 |
||
|
82600G
|
82600G
82683-12020 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [05.1985 - 04.1987] AE8# |
82683-12020 |
US $4.08 |
||
|
82600G
|
82600G
82683-12070
Plate, Caution(For Fuse)
[05.1983 - 05.1985] AE8# |
82683-12070 |
— | ||
|
82650
|
82650
82650-12010 Breaker Assy, Wiring Circuit, No.1WIRING CIRCUIT, NO.1 [05.1983 - 04.1987] AE8# 20A,TOKAIRIKA |
82650-12010 |
US $17.33 |
||
| replacement | |||||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[05.1983 - 04.1987] AE8# 20A,TOKAIRIKA |
82650-35010 |
US $18 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[05.1983 - 04.1987] AE8# ３０Ａ,30A |
82650-20011 |
US $14.08 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[05.1983 - 04.1987] AE8# ２０Ａ,20A,MATSUSHITA |
82650-35010 |
US $18 |
||
|
82660A
|
82660A
82660-12130
Block Assy, Relay, Cowl Side
[05.1983 - 04.1987] AE8# NO.1 |
82660-12130 |
— | ||
|
82660A
|
82660A
82660-12220 Block Assy, Relay, Cowl SideRELAY, COWL SIDE [05.1983 - 04.1987] AE8# NO.2 |
82660-12220 |
US $202.38 |
||
|
82661
|
82661
82661-12050 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [05.1983 - 01.1984] AE8# ENGINE ROOM |
82661-12050 |
US $23.30 |
||
| replacement | |||||
|
82661
|
82661
82661-12051 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [05.1983 - 01.1984] AE8# ENGINE ROOM |
82661-12051 |
US $23.44 |
||
|
82661
|
82661
82661-12051 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [01.1984 - 04.1987] AE8# ENGINE ROOM |
82661-12051 |
US $23.44 |
||
|
82661
|
82661
82661-12100
Cover, Relay Block, No.1
[05.1983 - 04.1987] AE8# NO.2 |
82661-12100 |
— | ||
|
83650
|
83650
90986-01003
Fusee
[05.1983 - 04.1987] AE8# |
90986-01003 |
— | ||
|
85910C
|
85910C
85913-30020
Relay, Ignition, No.1
[05.1983 - 05.1985] AE8# |
85913-30020 |
— | ||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[05.1985 - 04.1987] AE8# |
90987-04002 |
from US $25.17 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[05.1983 - 04.1987] AE8# TAIL & HEAD |
90987-01003 |
from US $35.26 |
||
|
85963
|
85963
85963-14011
Relay, Light Retractor Control
[05.1983 - 04.1987] AE8# |
85963-14011 |
— | ||
|
86640
|
86640
86640-12070
Chime Assy
[05.1983 - 04.1987] AE8# |
86640-12070 |
— | ||
|
89550
|
89550
89550-12670
Computer Assy, Emission Control
[05.1983 - 10.1983] AE85..4FC |
89550-12670 |
— | ||
|
89550
|
89550
89550-12671
Computer Assy, Emission Control
[10.1983 - 05.1985] AE85..4FC |
89550-12671 |
— | ||
|
89550
|
89550
89550-12850
Computer Assy, Emission Control
[05.1985 - 04.1987] AE85..4FC |
89550-12850 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9011906104
|
9011906104
90119-06104 New Genuine Part |
90119-06104 |
US $1.89 |
||
|
9011908413
|
9011908413
90119-08413 New Genuine Part |
90119-08413 |
US $0.70 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
