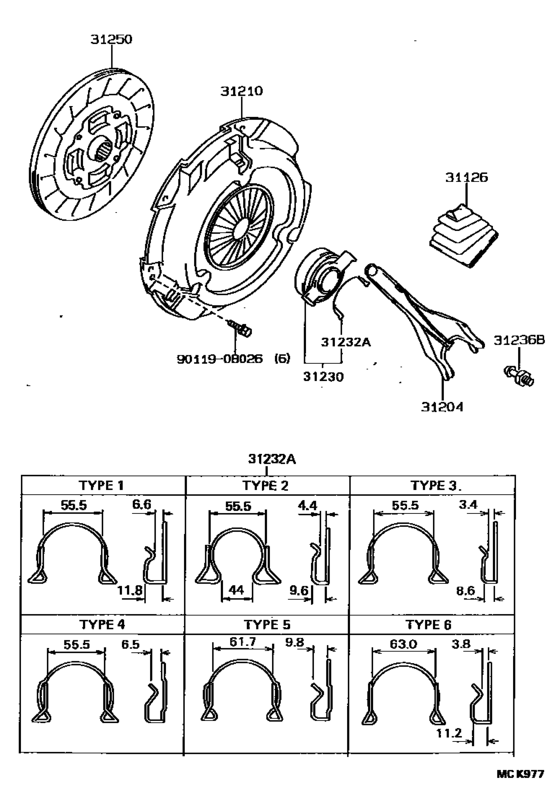

Clutch & Release Fork ([05.1987 - ] (8705- )5F) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGE
- TRANSMISSION
- GT
- Model
- SPRINTER TRUENO
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- EFI
- Vehicle Model
- SPRINTER TRUENO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[05.1987 - 08.1988] AE9#..5F |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-12050 Fork Sub-Assy, Clutch Release[05.1987 - 08.1988] AE9#..5F..(CBR,EFI) |
31204-12050 |
from US $39.98 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[05.1991 - 06.1991] AE9#..5F |
31204-17010 |
from US $44.23 |
||
|
31210
|
31210
31210-12120 Cover Assy, Clutch[05.1987 - 05.1989] AE92..5F..EFI |
31210-12120 |
US $163.07 |
||
| replacement | |||||
|
31210
|
31210
31210-20391
Cover Assy, Clutch
[05.1987 - 05.1989] AE92..5F..EFI |
31210-20391 |
— | ||
|
31210
|
31210
31210-12150 Cover Assy, Clutch[05.1989 - 11.1989] AE92..5F..EFI |
31210-12150 |
US $179.09 |
||
| replacement | |||||
|
31210
|
31210
31210-12152 Cover Assy, Clutch[05.1989 - 11.1989] AE92..5F..EFI |
31210-12152 |
US $155.79 |
||
|
31210
|
31210
31210-12151 Cover Assy, Clutch[11.1989 - 06.1991] AE92..5F..EFI |
31210-12151 |
US $179.09 |
||
| replacement | |||||
|
31210
|
31210
31210-12152 Cover Assy, Clutch[11.1989 - 06.1991] AE92..5F..EFI |
31210-12152 |
US $155.79 |
||
|
31230
|
31230
31230-12100 Bearing Assy, Clutch Release[05.1987 - 08.1987] AE9#..5F..(CBR,EFI) |
31230-12100 |
US $65.37 |
||
| replacement | |||||
|
31230
|
31230
31230-16061 Bearing Assy, Clutch Release[05.1987 - 08.1987] AE9#..5F..(CBR,EFI) |
31230-16061 |
US $67.94 |
||
|
31230
|
31230
31230-12140
Bearing Assy, Clutch Release
[08.1987 - 11.1988] AE9#..5F..(CBR,EFI) |
31230-12140 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-16061 Bearing Assy, Clutch Release[08.1987 - 11.1988] AE9#..5F..(CBR,EFI) |
31230-16061 |
US $67.94 |
||
|
31230
|
31230
31230-12170
Bearing Assy, Clutch Release
[05.1991 - 06.1991] AE9#..5F..(EFI,EFIS) |
31230-12170 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[05.1991 - 06.1991] AE9#..5F..(EFI,EFIS) |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-12020
Clip, Release Bearing Hub
[05.1987 - 08.1987] AE9#..5F..(CBR,EFI) TYPE 1 |
31232-12020 |
— | ||
|
31232A
|
31232A
31232-12030 Clip, Release Bearing Hub[05.1987 - 08.1987] AE9#..5F..(CBR,EFI) TYPE 2 |
31232-12030 |
US $2.33 |
||
|
31232A
|
31232A
31232-12040
Clip, Release Bearing Hub
[05.1987 - 08.1988] AE9#..5F..(CBR,EFI) |
31232-12040 |
— | ||
|
31232A
|
31232A
31232-12050
Clip, Release Bearing Hub
[05.1991 - 06.1991] AE9#..5F..(EFI,EFIS) |
31232-12050 |
— | ||
|
31232A
|
31232A
31232-12060
Clip, Release Bearing Hub
[05.1991 - 06.1991] AE9#..5F..(EFI,EFIS) |
31232-12060 |
— | ||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[05.1991 - 06.1991] AE9#..5F..EFI |
31232-12070 |
US $3.20 |
||
|
31232A
|
31232A
31232-16031
Clip, Release Bearing Hub
[07.1988 - 08.1988] AE9#..5F..(CBR,EFI) |
31232-16031 |
— | ||
|
31236B
|
31236B
31236-12011 Ball, Release Fork[05.1987 - 08.1988] AE9#..5F..(CBR,EFI) |
31236-12011 |
from US $11.36 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[05.1991 - 06.1991] AE9#..5F..(EFI,EFIS) |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-12320 Disc Assy, Clutch[04.1991 - 06.1991] AE92..5F..EFI |
31250-12320 |
US $151.42 |
||
| replacement | |||||
|
31250
|
31250
31250-12361 Disc Assy, Clutch[04.1991 - 06.1991] AE92..5F..EFI |
31250-12361 |
from US $126.83 |
||
|
31250
|
31250
31250-17010
Disc Assy, Clutch
[05.1987 - 05.1989] AE92..5F..EFI |
31250-17010 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12393 Disc Assy, Clutch[05.1987 - 05.1989] AE92..5F..EFI |
31250-12393 |
from US $106.56 |
||
|
31250
|
31250
31250-17020 Disc Assy, Clutch[05.1989 - 04.1991] AE92..5F..EFI |
31250-17020 |
US $151.42 |
||
| replacement | |||||
|
31250
|
31250
31250-12361 Disc Assy, Clutch[05.1989 - 04.1991] AE92..5F..EFI |
31250-12361 |
from US $126.83 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
