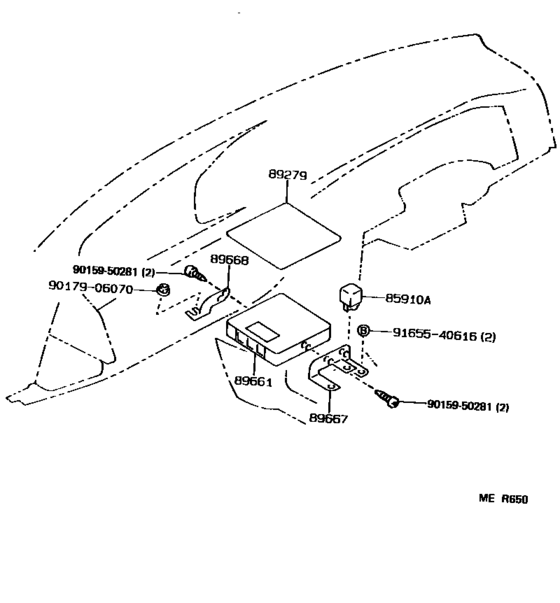

Electronic Fuel Injection System ([05.1987 - ] (8705- )EFI,EFIS ; (8705- )EE96..3FC) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- grade
- GT
- body
- 5D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- SPRINTER
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-12010
Relay Assy, Circuit Opening
[05.1987 - 06.1991] AE9#..EFI,EFIS |
85910-12010 |
— | ||
|
89279
|
89279
89279-12020 Cover, Engine Control Computer[08.1987 - 03.1990] AE9#..EFI,EFIS |
89279-12020 |
US $4.22 |
||
|
89661
|
89661
89661-12180 Computer, Engine Control[05.1987 - 07.1988] AE92 |
89661-12180 |
US $1,327.87 |
||
| replacements | |||||
|
89661
|
89661
89661-12182 Computer, Engine Control[05.1987 - 07.1988] AE92 |
89661-12182 |
US $1,306.03 |
||
|
89661
|
89661
89661-12331 Computer, Engine Control[05.1987 - 07.1988] AE92 |
89661-12331 |
US $1,324.96 |
||
|
89661
|
89661
89661-12181 Computer, Engine Control[07.1988 - 04.1989] AE92..5F |
89661-12181 |
US $1,324.96 |
||
| replacement | |||||
|
89661
|
89661
89661-12182 Computer, Engine Control[07.1988 - 04.1989] AE92..5F |
89661-12182 |
US $1,306.03 |
||
|
89661
|
89661
89661-12182 Computer, Engine Control[04.1989 - 05.1989] AE92..5F |
89661-12182 |
US $1,306.03 |
||
|
89661
|
89661
89661-12570 Computer, Engine Control[05.1989 - 09.1989] AE92 |
89661-12570 |
US $1,587.04 |
||
| replacement | |||||
|
89661
|
89661
89661-20890 Computer, Engine Control[05.1989 - 09.1989] AE92 |
89661-20890 |
US $1,601.60 |
||
|
89661
|
89661
89661-12690 Computer, Engine Control[09.1990 - 06.1991] AE92 |
89661-12690 |
US $1,601.60 |
||
|
89661
|
89661
89661-20890 Computer, Engine Control[09.1989 - 09.1990] AE92 |
89661-20890 |
US $1,601.60 |
||
|
89667
|
89667
89667-12020 Bracket, Emission Control Computer, No.1[05.1987 - 03.1990] AE91,92..EFI,EFIS |
89667-12020 |
US $9.46 |
||
|
89668
|
89668
89668-12030 Bracket, Emission Control Computer, No.2[05.1987 - 03.1990] AE9#..EFI,EFIS |
89668-12030 |
US $6.41 |
||
|
9015950281
|
9015950281
90159-50281 New Genuine Part |
90159-50281 |
US $1.60 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
