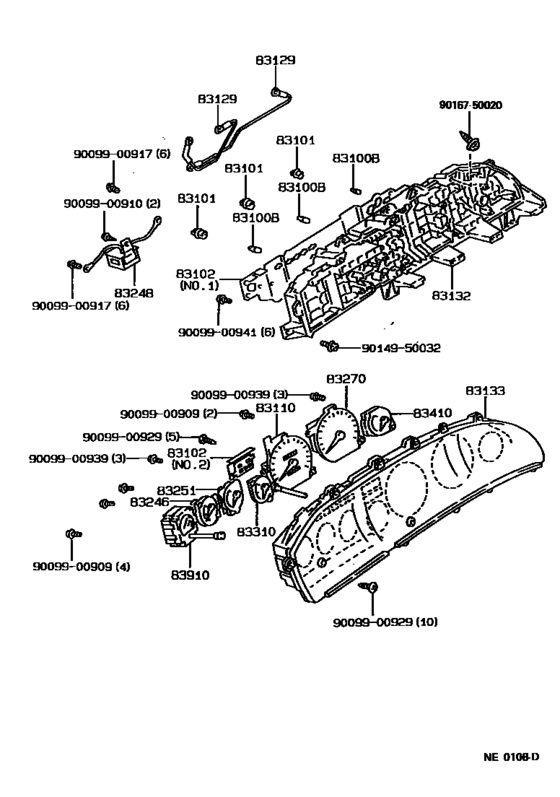

Meter ([05.1987 - ] (8705- )GT,XI,XS ; (8905- )SE..EFIS) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- AE92
- grade
- GT
- body
- 5D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- SPRINTER
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83101-20080
Bulb, Combination Meter, No.1
[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ １．４Ｗ，ソケット付き |
83101-20080 |
— | ||
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ ３．４Ｗ，ブルー キャップ |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
83109-20030
Bulb, Combination Meter, No.1
[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ １．４Ｗ，ブルー キャップ |
83109-20030 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ ３．４Ｗ |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ ３．４Ｗ |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[05.1987 - 06.1991] AE9#,CE9#,EE9# 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1987 - 06.1991] AE9#,CE9#,EE9# 14V 1.4W BULB |
83101-14040 |
US $3.02 |
||
|
83102
|
83102
83247-1E080
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1987 - 05.1989] AE92..4FC ＮＯ．１; AE92..5F ｱﾘ(TEMS),ＮＯ．１; AE91..XI;AE92..5F NO.1 |
83247-1E080 |
— | ||
|
83102
|
83102
83247-1E081
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1989 - 06.1991] AE92..4FC ＮＯ．１; AE92..5F ｱﾘ(TEMS),ＮＯ．１; AE92..5F;AE91..EFIS NO.1; AE92..5D..4FC ｱﾘ(TEMS & ESC),ＮＯ．１ |
83247-1E081 |
— | ||
|
83102
|
83102
83247-1E140
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1987 - 05.1989] AE92..5F ｱﾘ(TEMS),ＮＯ．２ |
83247-1E140 |
— | ||
|
83102
|
83102
83247-1E141
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1989 - 06.1991] AE92..5F ｱﾘ(TEMS),ＮＯ．２ |
83247-1E141 |
— | ||
|
83102
|
83102
83247-1E740
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1987 - 05.1989] AE92 ｱﾘ(*DS),ＮＯ．１ |
83247-1E740 |
— | ||
|
83102
|
83102
83247-1E760
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1987 - 05.1989] AE92 ｱﾘ(*DS),ＮＯ．２ |
83247-1E760 |
— | ||
|
83110
|
83110
83110-1E080 Speedometer Assy[05.1987 - 05.1989] AE91,92..GT,XI |
83110-1E080 |
US $419.33 |
||
|
83110
|
83110
83110-1E081 Speedometer Assy[05.1989 - 06.1991] AE92;AE91..EFIS |
83110-1E081 |
US $390.21 |
||
| replacement | |||||
|
83110
|
83110
83110-1E082 Speedometer Assy[05.1989 - 06.1991] AE92;AE91..EFIS |
83110-1E082 |
US $385.84 |
||
|
83129
|
83129
83129-12010
Wire, Meter
[05.1987 - 06.1991] AE91..SE..EFIS;AE91,92..GT,XI,XS L=225,WHITE |
83129-12010 |
— | ||
|
83129
|
83129
83129-12030
Wire, Meter
[05.1987 - 06.1991] AE91..SE..EFIS;AE91,92..GT,XI,XS L=105,BLUE |
83129-12030 |
— | ||
|
83129
|
83129
83129-12090
Wire, Meter
[05.1987 - 06.1991] AE91,92..GT,XI,XS ＮＯ．１ |
83129-12090 |
— | ||
|
83129
|
83129
83129-12110
Wire, Meter
[05.1987 - 06.1991] AE91,92..GT,XI,XS ＮＯ．２ |
83129-12110 |
— | ||
|
83132
|
83132
83132-1A090
Case, Combination Meter
[05.1987 - 05.1989] AE91,92..GT,XI |
83132-1A090 |
— | ||
|
83132
|
83132
83132-1A091
Case, Combination Meter
[05.1989 - 06.1991] AE92;AE91..EFIS; AE92..5D ｱﾘ(TEMS & ESC) |
83132-1A091 |
— | ||
|
83132
|
83132
83132-1A290
Case, Combination Meter
[05.1987 - 06.1991] AE91,92..GT,XI,XS ｱﾘ(*DS) |
83132-1A290 |
— | ||
|
83133
|
83133
83133-1A250
Plate, Combination Meter, No.1
[05.1987 - 06.1991] AE92..5F |
83133-1A250 |
— | ||
|
83133
|
83133
83133-1A270
Plate, Combination Meter, No.1
[05.1987 - 06.1991] AE92..5F ｱﾘ(TEMS) |
83133-1A270 |
— | ||
| replacement | |||||
|
83133
|
83133
83133-1A290
Plate, Combination Meter, No.1
[05.1987 - 06.1991] AE92..5F ｱﾘ(TEMS) |
83133-1A290 |
— | ||
|
83133
|
83133
83133-1E170
Plate, Combination Meter, No.1
[05.1987 - 06.1991] AE91,92..GT,XI,XS ＮＯ．３ |
83133-1E170 |
— | ||
|
83133
|
83133
83133-1E190
Plate, Combination Meter, No.1
[05.1987 - 06.1991] AE91..5F..(XI,XS) ＮＯ．１; AE92..5F ｱﾘ(*DS),ＮＯ．１ |
83133-1E190 |
— | ||
|
83133
|
83133
83133-1E210
Plate, Combination Meter, No.1
[05.1987 - 05.1989] AE92..5F ｱﾘ(*DS & TEMS),ＮＯ．１ |
83133-1E210 |
— | ||
|
83133
|
83133
83133-1E290
Plate, Combination Meter, No.1
[05.1987 - 06.1991] AE91,92..GT,XI,XS ＮＯ．２ |
83133-1E290 |
— | ||
|
83133
|
83133
83133-1E550
Plate, Combination Meter, No.1
[05.1989 - 06.1991] AE92..5F ｱﾘ(*DS & TEMS),ＮＯ．１ |
83133-1E550 |
— | ||
|
83246
|
83246
83246-12170 Gauge, Oil Pressure Receiver[05.1987 - 05.1989] AE91,92..GT,XI |
83246-12170 |
US $74.26 |
||
|
83246
|
83246
83246-12171 Gauge, Oil Pressure Receiver[05.1989 - 06.1991] AE92;AE91..EFIS |
83246-12171 |
US $38 |
||
|
83248
|
83248
86640-12120
Chime, Speed Warning
[05.1989 - 06.1991] AE91,92..GT,XS |
86640-12120 |
— | ||
|
83248
|
83248
86640-12130 Chime, Speed Warning[05.1987 - 05.1989] AE91,92..GT,XI ｱﾘ(*DS) |
86640-12130 |
US $34.36 |
||
|
83248
|
83248
86640-12140 Chime, Speed Warning[05.1987 - 05.1989] AE91,92..GT,XI |
86640-12140 |
US $36.40 |
||
|
83251
|
83251
83251-12070 Meter, Voltage[05.1987 - 05.1989] AE91,92..GT,XI |
83251-12070 |
US $113.57 |
||
|
83251
|
83251
83251-12071 Meter, Voltage[05.1989 - 06.1991] AE92;AE91..EFIS |
83251-12071 |
US $113.57 |
||
|
83270
|
83270
83242-1A710 Tachometer Assy, Engine[05.1987 - 05.1989] AE92 |
83242-1A710 |
US $487.76 |
||
|
83270
|
83270
83242-1A711 Tachometer Assy, Engine[05.1989 - 06.1991] AE92 |
83242-1A711 |
US $483.39 |
||
|
83270
|
83270
83242-1E310 Tachometer Assy, Engine[05.1989 - 08.1990] AE92..4D ｱﾘ(ESC); AE92..5D ｱﾘ(TEMS & ESC) |
83242-1E310 |
US $487.76 |
||
|
83270
|
83270
83242-1E490 Tachometer Assy, Engine[08.1990 - 06.1991] AE92..4D ｱﾘ(ESC); AE92..5D ｱﾘ(TEMS & ESC) |
83242-1E490 |
US $506.69 |
||
|
83310
|
83310
83243-1A150 Gage Assy, Fuel Receiver[05.1987 - 05.1989] AE91,92..GT,XI |
83243-1A150 |
US $119.39 |
||
|
83310
|
83310
83243-1A151 Gauge Sub-Assy, Fuel Receiver[05.1989 - 06.1991] AE92;AE91..EFIS |
83243-1A151 |
US $68.43 |
||
|
83410
|
83410
83244-1A550 Gage Assy, Water Temperature Receiver[05.1987 - 05.1989] AE91,92..GT,XI |
83244-1A550 |
US $58.39 |
||
|
83410
|
83410
83244-1A551 Gauge Sub-Assy, Water Temperature Receiver[05.1989 - 06.1991] AE92;AE91..EFIS |
83244-1A551 |
US $68.43 |
||
|
83910
|
83910
83910-12440 Clock Assy[05.1987 - 06.1991] AE91..SE..EFIS;AE91,92..GT,XI,XS |
83910-12440 |
US $409.14 |
||
|
83910
|
83910
83910-14340 Clock Assy[05.1987 - 06.1991] AE91,92..GT,XI,XS ｱﾘ(*DS) |
83910-14340 |
US $409.14 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9009900941
|
9009900941
90099-00941
New Genuine Part
|
90099-00941 |
— | ||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
US $1.28 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $1.92 |
||
