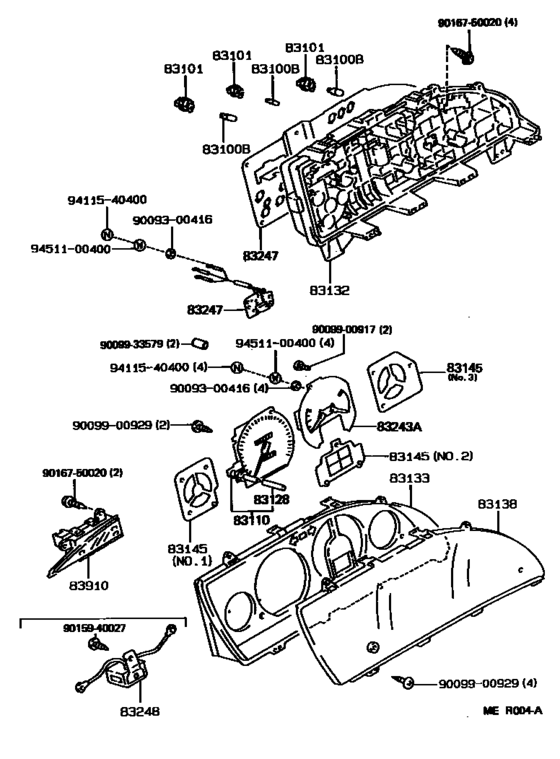

Meter ([09.1990 - ] (9009- )AV1) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- AE95
- grade
- AV1
- body
- WG
- ENGINE
- 4AFHE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
- Fuel Induction
- EFIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[09.1990 - 08.1995] AE95..AV1 １２Ｖ ３．４Ｗ，ブルー キャップ |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[08.1991 - 08.1995] AE95 １４Ｖ ２．０Ｗ，ソケットなし |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1990 - 08.1995] AE95..AV1 １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1990 - 08.1992] AE95..AV1 １２Ｖ ３．４Ｗ |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1990 - 08.1992] AE95..AV1 １２Ｖ ３．４Ｗ |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1990 - 08.1992] AE95..AV1 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1990 - 08.1991] AE95..AV1 12V 1.4W BULB |
83101-14040 |
US $2.98 |
||
|
83110
|
83110
83110-1A801 Speedometer Assy[09.1990 - 08.1992] AE95..AV1 |
83110-1A801 |
US $390.21 |
||
| replacement | |||||
|
83110
|
83110
83110-1A802 Speedometer Assy[09.1990 - 08.1992] AE95..AV1 |
83110-1A802 |
US $385.84 |
||
|
83110
|
83110
83110-1A802 Speedometer Assy[08.1992 - 08.1995] AE95..AV1 |
83110-1A802 |
US $385.84 |
||
|
83128
|
83128
83128-14630
Knob, Trip Counter
[09.1990 - 08.1995] AE95 |
83128-14630 |
— | ||
|
83132
|
83132
83132-1A210
Case, Combination Meter
[09.1990 - 08.1991] AE95..AV1 |
83132-1A210 |
— | ||
|
83132
|
83132
83132-1A550
Case, Combination Meter
[08.1991 - 08.1995] AE95..AV1 |
83132-1A550 |
— | ||
|
83133
|
83133
83133-1A730
Plate, Combination Meter, No.1
[09.1990 - 08.1995] AE95..AV1 |
83133-1A730 |
— | ||
|
83138
|
83138
83138-1A010
Glass, Speedometer
[09.1990 - 08.1995] AE95..AV1 |
83138-1A010 |
— | ||
|
83145
|
83145
83145-13010
Lens, Meter, No.1
[09.1990 - 08.1995] AE95..4FC..AV1 ＮＯ．１ |
83145-13010 |
— | ||
|
83145
|
83145
83145-13330
Lens, Meter, No.1
[09.1990 - 08.1991] AE95..4FC..AV1 ＮＯ．３ |
83145-13330 |
— | ||
| replacement | |||||
|
83145
|
83145
83145-13350
Lens, Meter, No.1
[09.1990 - 08.1991] AE95..4FC..AV1 ＮＯ．３ |
83145-13350 |
— | ||
|
83145
|
83145
83145-13450
Lens, Meter, No.1
[08.1991 - 08.1995] AE95..4FC..AV1 ＮＯ．３ |
83145-13450 |
— | ||
|
83145
|
83145
83145-1E390
Lens, Meter, No.1
[09.1990 - 08.1995] AE95..AV1 ＮＯ．２ |
83145-1E390 |
— | ||
|
83243A
|
83243A
83243-1A371 Gauge Sub-Assy, Fuel Receiver[09.1990 - 08.1995] AE95..4FC..AV1 |
83243-1A371 |
US $78.62 |
||
|
83247
|
83247
83247-13110
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1990 - 08.1991] AE95..4FC..AV1 AT OIL TEMP |
83247-13110 |
— | ||
|
83247
|
83247
83247-13650
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1990 - 08.1991] AE95..4FC..AV1 |
83247-13650 |
— | ||
|
83247
|
83247
83247-1H490
Plate, Meter Circuit
[08.1991 - 08.1995] AE95..4FC..AV1 |
83247-1H490 |
— | ||
|
83247
|
83247
83247-1H610
Plate, Meter Circuit
[08.1991 - 08.1995] AE95..4FC..AV1 AT OIL TEMP |
83247-1H610 |
— | ||
|
83248
|
83248
86640-12120
Chime, Speed Warning
[09.1990 - 08.1995] AE95 |
86640-12120 |
— | ||
|
83910
|
83910
83910-12400 Clock Assy[09.1990 - 08.1995] AE95..AV1 JECO |
83910-12400 |
US $410.59 |
||
|
83910
|
83910
83910-12450 Clock Assy[09.1990 - 08.1995] AE95..AV1 RHYTHM |
83910-12450 |
US $426.61 |
||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009933579
|
9009933579
90099-33579
New Genuine Part
|
90099-33579 |
— | ||
|
9015940027
|
9015940027
90159-40027 New Genuine Part |
90159-40027 |
US $0.76 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $1.92 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
