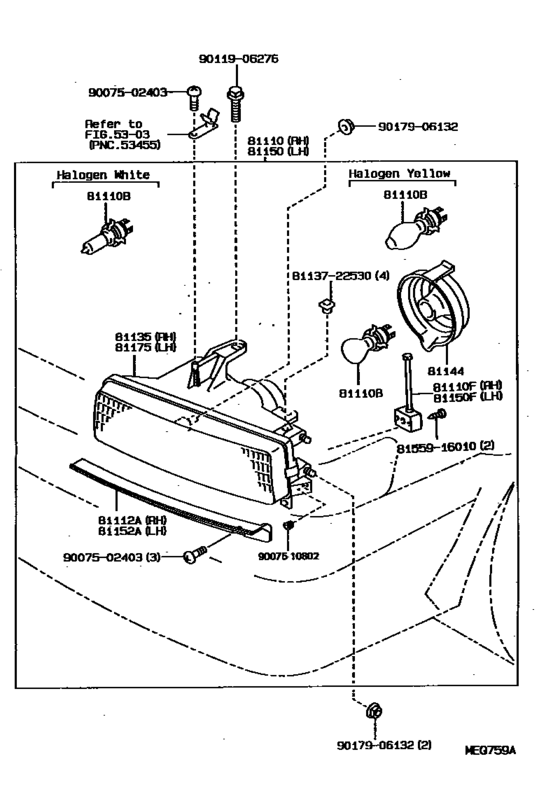

Headlamp ([08.1987 - 08.1990] (8708-9008)WG) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- AE95
- grade
- AV1
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER
- From
- 02.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-1A840 Headlamp Assy, Rh[02.1988 - 09.1990] AE95..AV1 |
81110-1A840 |
US $396.03 |
||
|
81110
|
81110
81110-1A850 Headlamp Assy, Rh[02.1988 - 08.1989] AE95..AV1 ﾊﾛｹﾞﾝ ﾎﾜｲﾄ |
81110-1A850 |
US $426.61 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[05.1987 - 05.1989] AE91,92,CE90,EE90;AE95..AV1,AV2,MX,RVS,SE １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [05.1987 - 05.1989] AE91,92,CE90,EE90;AE95..AV1,AV2,MX,RVS,SE １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $30.40 |
||
|
81110B
|
81110B
90981-13022 Bulb(For Headlamp, No.1)[05.1987 - 06.1991] AE91,95,CE90,95,EE90..AV1,DX,L,LX １２Ｖ ６５／６０Ｗ，ホワイト |
90981-13022 |
US $21.84 |
||
|
81110F
|
81110F
90075-99077 Gear Unit Assy, Rh No.1[05.1987 - 06.1991] AE9#,CE90,95,EE90 |
90075-99077 |
US $14.08 |
||
|
81112A
|
81112A
81116-1A850 Rim, Headlamp, Rh[02.1988 - 09.1990] AE95..WG |
81116-1A850 |
US $22.42 |
||
|
81135
|
81135
81130-1A670 Unit Assy, Headlamp, Rh[05.1987 - 05.1989] AE91,95,CE90,EE90..AV1,DX,L,LX |
81130-1A670 |
US $304.30 |
||
|
81135
|
81135
81130-1A680 Unit Assy, Headlamp, Rh[05.1987 - 05.1989] AE9#,CE90,EE90..AV2,G,GT,MX,RVS,SE,XI; AE95..AV1;AE91,CE90,EE90..DX,L,LX ﾊﾛｹﾞﾝ ﾎﾜｲﾄ |
81130-1A680 |
US $304.30 |
||
|
81144
|
81144
81139-20730 Cover, Headlamp, No.1[05.1987 - 06.1991] AE9#,CE90,95,EE90 |
81139-20730 |
US $18.54 |
||
|
81150
|
81150
81160-1A840 Headlamp Assy, Lh[02.1988 - 09.1990] AE95..AV1 |
81160-1A840 |
US $390.21 |
||
|
81150
|
81150
81160-1A850 Headlamp Assy, Lh[02.1988 - 08.1989] AE95..AV1 ﾊﾛｹﾞﾝ ﾎﾜｲﾄ |
81160-1A850 |
US $420.78 |
||
|
81150F
|
81150F
90075-99077 Gear Unit Assy, Rh No.1[05.1987 - 06.1991] AE9#,CE90,95,EE90 |
90075-99077 |
US $14.08 |
||
|
81152A
|
81152A
81156-1A850 Rim, Headlamp, Lh[02.1988 - 09.1990] AE95..WG |
81156-1A850 |
US $22.42 |
||
|
81175
|
81175
81170-1A670 Unit Assy, Headlamp, Lh[05.1987 - 05.1989] AE91,95,CE90,EE90..AV1,DX,L,LX |
81170-1A670 |
US $304.30 |
||
|
81175
|
81175
81170-1A680 Unit Assy, Headlamp, Lh[05.1987 - 05.1989] AE9#,CE90,EE90..AV2,G,GT,MX,RVS,SE,XI; AE95..AV1;AE91,CE90,EE90..DX,L,LX ﾊﾛｹﾞﾝ ﾎﾜｲﾄ |
81170-1A680 |
US $304.30 |
||
|
8113722530
|
8113722530
81137-22530
Nut, Headlamp Self Locking
|
81137-22530 |
— | ||
| replacement | |||||
|
8113722530
|
8113722530
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
US $2.08 |
||
|
8155916010
|
8155916010
81559-16010 Moulding, Rear Combination Lamp, Rh |
81559-16010 |
US $3.20 |
||
|
9007502403
|
9007502403
90075-02403 New Genuine Part |
90075-02403 |
US $1.92 |
||
|
9007510802
|
9007510802
90075-10802
Side Turn Signal Lamp Retainer
|
90075-10802 |
— | ||
|
9011906276
|
9011906276
90119-06276 Bolt |
90119-06276 |
from US $1.89 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
