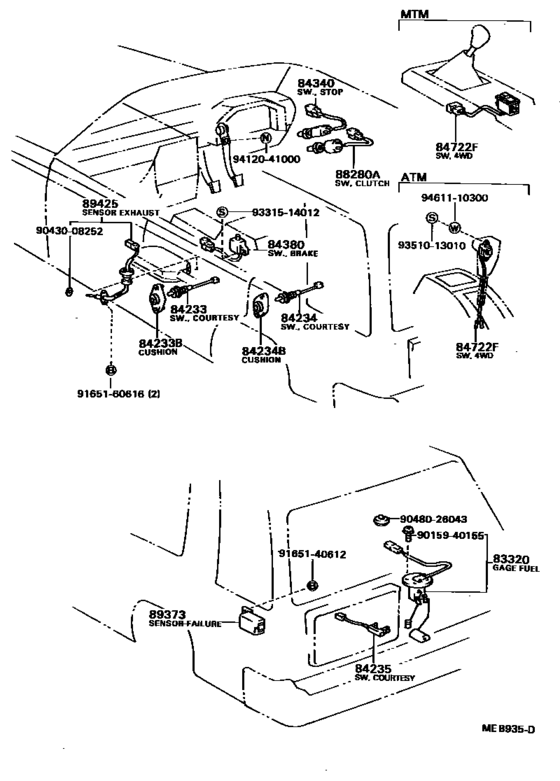

Switch & Relay & Computer ([08.1982 - ] (8208- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- AL25
- grade
- AV2
- body
- WG
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- SPRINTER CARIB
- From
- 08.1984
- To
- 01.1988
- Gear Shift Type
- 6F
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-16120
Gage Assy, Fuel Sender
[08.1982 - 08.1984] AL25..AV2 |
83320-16120 |
— | ||
| replacement | |||||
|
83320
|
83320
83320-19865
Gage Assy, Fuel Sender
[08.1982 - 08.1984] AL25..AV2 |
83320-19865 |
— | ||
|
83320
|
83320
83320-19855
Gage Assy, Fuel Sender
[08.1984 - 01.1988] AL25 W/FUEL WARNING |
83320-19855 |
— | ||
| replacement | |||||
|
83320
|
83320
83320-19865
Gage Assy, Fuel Sender
[08.1984 - 01.1988] AL25 W/FUEL WARNING |
83320-19865 |
— | ||
|
84233
|
84233
84231-20080
Switch Assy, Courtesy Lamp (For Front Door)
[08.1982 - 01.1988] AL25 |
84231-20080 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-28010 Switch Assy, Courtesy Lamp[08.1982 - 01.1988] AL25 |
84231-28010 |
from US $16.26 |
||
|
84233B
|
84233B
84234-22010 Cushion, Courtesy Switch (For Front Door)[08.1982 - 01.1988] AL25 |
84234-22010 |
from US $7.20 |
||
|
84234
|
84234
84231-20080
Switch Assy, Courtesy Lamp (For Front Door)
[08.1982 - 01.1988] AL25 |
84231-20080 |
— | ||
| replacement | |||||
|
84234
|
84234
84231-28010 Switch Assy, Courtesy Lamp[08.1982 - 01.1988] AL25 |
84231-28010 |
from US $16.26 |
||
|
84234B
|
84234B
84234-22010 Cushion, Courtesy Switch (For Front Door)[08.1982 - 01.1988] AL25 |
84234-22010 |
from US $7.20 |
||
|
84235
|
84235
84230-16020 Switch Assy, Courtesy Lamp (For Rear Door)[08.1982 - 01.1988] AL25 |
84230-16020 |
US $15.20 |
||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[06.1985 - 01.1988] AL25 MATSUSHITA |
84340-30030 |
from US $28.78 |
||
|
84340
|
84340
84340-32010
Switch Assy, Stop Lamp
[08.1982 - 06.1985] AL25 |
84340-32010 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[08.1982 - 06.1985] AL25 |
84340-30030 |
from US $28.78 |
||
|
84380
|
84380
84550-16010
Switch Assy, Brake Warning Test
[08.1984 - 01.1988] AL25 |
84550-16010 |
— | ||
|
84380
|
84380
84550-24010
Switch Assy, Brake Warning Test
[08.1982 - 08.1984] AL25 |
84550-24010 |
— | ||
|
84722F
|
84722F
84724-16010 Switch, Transmission Control[05.1986 - 01.1988] AL25..6F |
84724-16010 |
US $100.46 |
||
|
88280A
|
88280A
88280-16010
Switch Assy, Clutch
[08.1982 - 08.1984] AL25..6F |
88280-16010 |
— | ||
|
89373
|
89373
89373-16030 Sensor, Lamp Failure Indicator[08.1982 - 08.1984] AL25..AV2 |
89373-16030 |
US $262.08 |
||
|
89373
|
89373
89373-16050 Sensor, Lamp Failure Indicator[08.1984 - 01.1988] AL25..AV2 |
89373-16050 |
US $241.70 |
||
|
89425
|
89425
89425-19245 Sensor, Exhaust Gas Temperature[08.1982 - 08.1984] AL25 |
89425-19245 |
US $294.11 |
||
|
89425
|
89425
89425-19305 Sensor, Exhaust Gas Temperature[08.1984 - 01.1988] AL25 MATSUSHITA |
89425-19305 |
US $304.30 |
||
|
89425
|
89425
89425-19345 Sensor, Exhaust Gas Temperature[08.1984 - 01.1988] AL25 DENSO |
89425-19345 |
US $282.46 |
||
|
9015940155
|
9015940155
90159-40155 SCREW WWASHER |
90159-40155 |
US $1.92 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9048026043
|
9048026043
90480-26043
Grommet (For Accelerator Wire)
|
90480-26043 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.76 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
