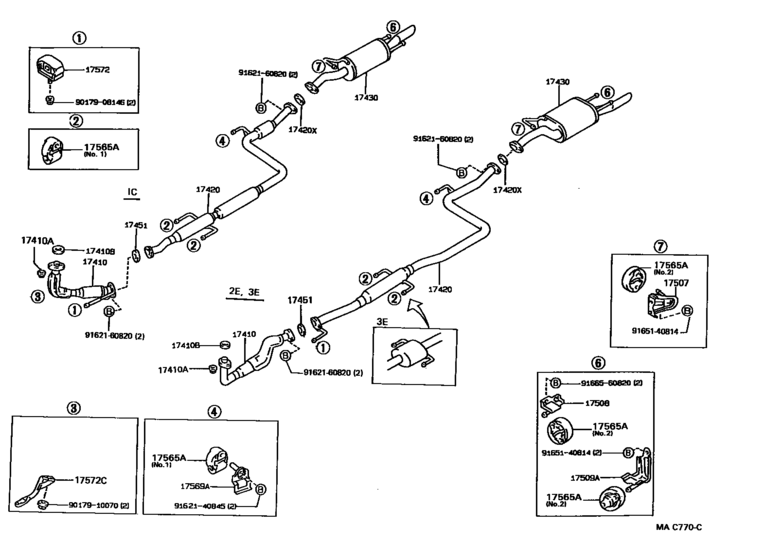

Exhaust Pipe ([08.1989 - 08.1991] (8908-9108)1C,2E,3E..CE96,EE96,98) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1988 - 1991
- Sales region
- Japan
- Frame
- CE96
- grade
- DX
- body
- V
- ENGINE
- 1C
- TRANSMISSION
- ATM
- Model
- SPRINTER
- From
- 08.1988
- To
- 08.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-64270 Pipe Assy, Exhaust, Front[05.1987 - 08.1991] 1C..CE90,96 |
17410-64270 |
US $400.40 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1987 - 08.1991] 4AF#,5AF,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9# |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1987 - 08.1991] 4AF#,5AF,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[05.1987 - 03.1989] 4AF#,5AF#,1C,2E,3E..AE91,95,CE9#,EE9# |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[05.1987 - 03.1989] 4AF#,5AF#,1C,2E,3E..AE91,95,CE9#,EE9# |
90917-06039 |
from US $2.36 |
||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[03.1989 - 08.1991] 4AF#,5AF,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9# |
90917-06039 |
from US $2.36 |
||
|
17420
|
17420
17420-64100 Pipe Assy, Exhaust, Center[08.1988 - 05.1989] 1C..CE96 |
17420-64100 |
US $449.90 |
||
| replacement | |||||
|
17420
|
17420
17420-64101 Pipe Assy, Exhaust, Center[08.1988 - 05.1989] 1C..CE96 |
17420-64101 |
US $541.63 |
||
|
17420
|
17420
17420-64101 Pipe Assy, Exhaust, Center[05.1989 - 08.1991] 1C..CE96 |
17420-64101 |
US $541.63 |
||
|
17420X
|
17420X
90917-06004
Gasket(For Manifold Extension)
[05.1987 - 03.1989] 4AF#,1C,3E..AE95,CE9#,EE98 |
90917-06004 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[05.1987 - 03.1989] 4AF#,1C,3E..AE95,CE9#,EE98 |
90917-06039 |
from US $2.36 |
||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[03.1989 - 08.1991] 4AF#,1C,2C,3E..AE95,CE9#,EE98 |
90917-06039 |
from US $2.36 |
||
|
17430
|
17430
17430-11220 Pipe Assy, Exhaust, Tail[08.1988 - 08.1989] 1C..CE96 |
17430-11220 |
US $337.79 |
||
|
17430
|
17430
17430-64570 Pipe Assy, Exhaust, Tail[08.1989 - 08.1991] 1C..CE96 |
17430-64570 |
US $339.25 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[05.1987 - 03.1989] 4AF#,5AF#,1C,2E..AE91,95,CE9#,EE90,96 |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[05.1987 - 03.1989] 4AF#,5AF#,1C,2E..AE91,95,CE9#,EE90,96 |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[03.1989 - 08.1989] 4AF#,5AF,5AFE,1C,2E..AE91,95,CE9#,EE90,96 |
90917-06039 |
from US $2.36 |
||
|
17507
|
17507
17507-11030 Bracket Sub-Assy, Exhaust Pipe No.2 Support[08.1988 - 08.1991] 1C,2E,3E..CE96,EE96,98 |
17507-11030 |
US $14.71 |
||
|
17508
|
17508
17508-11020 Support Sub-Assy, Exhaust Pipe, No.3[08.1988 - 08.1991] 1C,2E,3E..CE96,EE96,98 |
17508-11020 |
US $15 |
||
|
17509A
|
17509A
17509-11020 Bracket Sub-Assy, Exhaust Pipe No.4 Support[08.1988 - 08.1991] 1C,2E,3E..CE96,EE96,98 |
17509-11020 |
US $18.05 |
||
|
17565A
|
17565A
17565-15070 Support, Exhaust Pipe, No.3[10.1990 - 08.1991] 1C,2E,3E..CE96,EE96,98 ＮＯ．１ |
17565-15070 |
from US $7.25 |
||
|
17565A
|
17565A
17565-63030 Bracket, Catalytic Converter Support[10.1987 - 08.1991] 4AF#,1C,2E,3E..AE95,CE96,EE96,98 ＮＯ．２ |
17565-63030 |
US $13.44 |
||
|
17569A
|
17569A
17569-11010 Plate, Exhaust Pipe Support[08.1988 - 08.1991] 1C,2E,3E..CE96,EE96,98 |
17569-11010 |
US $11.65 |
||
|
17572
|
17572
17572-15050 Bracket, Exhaust Pipe No.1 Support[05.1987 - 08.1991] 4AGE,4AF#,5AF#,1C,2E,3E..AE9#,CE90,96,EE9# |
17572-15050 |
US $22.01 |
||
|
17572C
|
17572C
17571-64130 Bracket, Exhaust Pipe Support, No.1[05.1987 - 05.1989] 1C..CE9# |
17571-64130 |
US $18.93 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9162140845
|
9162140845
91621-40845 Bolt(for Rocker Support Set) |
91621-40845 |
US $2.48 |
||
| replacement | |||||
|
9162140845
|
9162140845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.60 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.94 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166560820
|
9166560820
91665-60820
New Genuine Part
|
91665-60820 |
— | ||
| replacement | |||||
|
9166560820
|
9166560820
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
