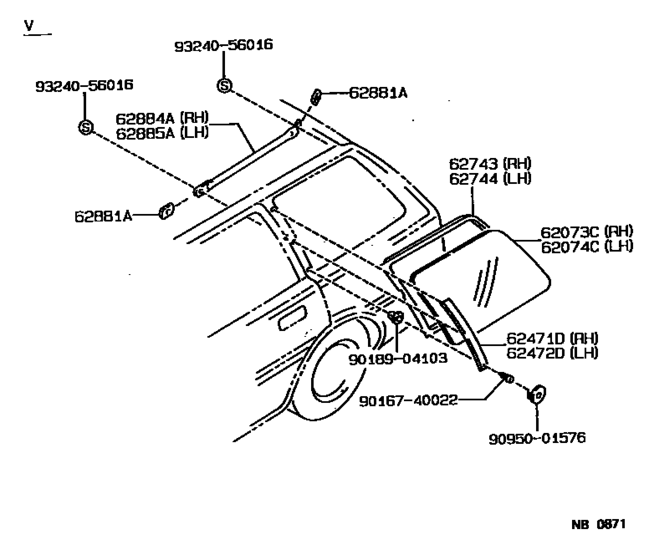

Quarter Window ([08.1988 - ] (8808- )CE96,EE96,98) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1988 - 1991
- Sales region
- Japan
- Frame
- CE96
- grade
- DX
- body
- V
- ENGINE
- 1C
- TRANSMISSION
- ATM
- Model
- SPRINTER
- From
- 08.1988
- To
- 08.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62073C
|
62073C
68133-13030 Glass Sub-Assy, Quarter, Rear Rh[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68133-13030 |
US $216.94 |
||
| replacement | |||||
|
62073C
|
62073C
68133-13040 Glass Sub-Assy, Quarter, Rear Rh[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68133-13040 |
US $218.40 |
||
|
62074C
|
62074C
68134-13030 Glass Sub-Assy, Quarter, Rear Lh[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68134-13030 |
US $216.94 |
||
| replacement | |||||
|
62074C
|
62074C
68134-13040 Glass Sub-Assy, Quarter, Rear Lh[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68134-13040 |
US $218.40 |
||
|
62471D
|
62471D
62471-13020 Garnish, Rear Pillar, Upper Rh[08.1988 - 08.1991] CE96,EE96,98 |
62471-13020 |
US $26.50 |
||
|
62472D
|
62472D
62472-13020 Garnish, Rear Pillar, Upper Lh[08.1988 - 08.1991] CE96,EE96,98 |
62472-13020 |
US $26.50 |
||
|
62743
|
62743
62743-13060 Weatherstrip, Quarter Window, Rear Rh[08.1988 - 08.1991] CE96,EE96,98 |
62743-13060 |
US $71.64 |
||
|
62744
|
62744
62744-13060 Weatherstrip, Quarter Window, Rear Lh[08.1988 - 08.1991] CE96,EE96,98 |
62744-13060 |
US $71.64 |
||
|
62881A
|
62881A
62881-13040 Bracket, Quarter Window Guard[08.1988 - 08.1991] CE96,EE96,98 |
62881-13040 |
US $2.48 |
||
|
62884A
|
62884A
62884-13080 Guard, Quarter Window, Rh[08.1988 - 08.1991] CE96,EE96,98 |
62884-13080 |
US $19.95 |
||
|
62885A
|
62885A
62885-13020 Guard, Quarter Window, Lh[08.1988 - 08.1991] CE96,EE96,98 |
62885-13020 |
US $19.95 |
||
|
9016740022
|
9016740022
90167-40022 New Genuine Part |
90167-40022 |
US $1.60 |
||
|
9018904103
|
9018904103
90189-04103 New Genuine Part |
90189-04103 |
US $1.75 |
||
|
9095001576
|
9095001576
90950-01576
New Genuine Part
|
90950-01576 |
— | ||
|
9324056016
|
9324056016
93240-56016 SCREW |
93240-56016 |
US $1.60 |
||
