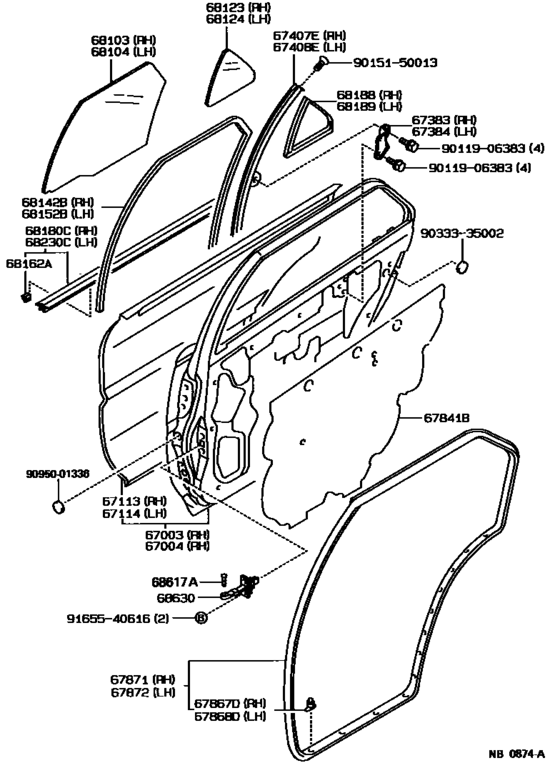

Rear Door Panel & Glass ([08.1988 - 08.1989] (8808-8908)CE96,EE96,98) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1988 - 1991
- Sales region
- Japan
- Frame
- CE96
- grade
- DX
- body
- V
- ENGINE
- 1C
- TRANSMISSION
- ATM
- Model
- SPRINTER
- From
- 08.1988
- To
- 08.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-13210 Panel Sub-Assy, Rear Door, Rh[08.1988 - 08.1991] CE96,EE96,98 |
67003-13210 |
US $725.09 |
||
|
67004
|
67004
67004-13210 Panel Sub-Assy, Rear Door, Lh[08.1988 - 08.1991] CE96,EE96,98 |
67004-13210 |
US $725.09 |
||
|
67113
|
67113
67113-12140 Panel, Rear Door, Outer Rh[08.1988 - 08.1991] CE96,EE96,98 |
67113-12140 |
US $291.20 |
||
|
67114
|
67114
67114-12140 Panel, Rear Door, Outer Lh[08.1988 - 08.1991] CE96,EE96,98 |
67114-12140 |
US $291.20 |
||
|
67383
|
67383
67383-12030 Bracket, Rear Door Inside Panel, No.2 Rh[02.1988 - 08.1991] AE95,CE96,EE96,98..V,WG |
67383-12030 |
US $7.43 |
||
|
67384
|
67384
67384-12030 Bracket, Rear Door Inside Panel, No.2 Lh[02.1988 - 08.1991] AE95,CE96,EE96,98..V,WG |
67384-12030 |
US $7.43 |
||
|
67407E
|
67407E
67407-13030 Bar Sub-Assy, Rear Door Window Division, Rh[08.1988 - 08.1991] CE96,EE96,98 |
67407-13030 |
US $45.43 |
||
|
67408E
|
67408E
67408-13030 Bar Sub-Assy, Rear Door Window Division, Lh[08.1988 - 08.1991] CE96,EE96,98 |
67408-13030 |
US $45.43 |
||
|
67841B
|
67841B
67841-12220
Cover, Rear Door Service Hole
[05.1987 - 08.1991] AE9#,CE9#,EE9# |
67841-12220 |
— | ||
| replacement | |||||
|
67841B
|
67841B
67841-12210
Cover, Rear Door Service Hole
[05.1987 - 08.1991] AE9#,CE9#,EE9# |
67841-12210 |
— | ||
|
67867D
|
67867D
67867-12120
Retainer, Rear Door Weatherstrip, Rh
[08.1988 -] CE96,EE96,98 |
67867-12120 |
— | ||
|
67868D
|
67868D
67868-12070
Retainer, Rear Door Weatherstrip, Lh
[08.1988 - 08.1991] CE96,EE96,98 |
67868-12070 |
— | ||
|
67871
|
67871
67871-13130
Weatherstrip, Rear Door, Rh
[08.1988 - 08.1991] CE96,EE96,98 |
67871-13130 |
— | ||
|
67872
|
67872
67872-13120
Weatherstrip, Rear Door, Lh
[08.1988 - 08.1991] CE96,EE96,98 |
67872-13120 |
— | ||
|
68103
|
68103
68113-13090 Glass Sub-Assy, Rear Door, Rh[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68113-13090 |
US $216.94 |
||
| replacement | |||||
|
68103
|
68103
68113-13100 Glass Sub-Assy, Rear Door, Rh[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68113-13100 |
US $218.40 |
||
|
68104
|
68104
68114-13090 Glass Sub-Assy, Rear Door, Lh[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68114-13090 |
US $216.94 |
||
| replacement | |||||
|
68104
|
68104
68114-13100 Glass Sub-Assy, Rear Door, Lh[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68114-13100 |
US $218.40 |
||
|
68123
|
68123
68123-13100
Glass, Rear Door Window, Rh
[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68123-13100 |
— | ||
|
68124
|
68124
68124-13090 Glass, Rear Door Window, Lh[08.1988 - 08.1991] CE96,EE96,98..CTD,DX,STD ＊ＴＥＭ，厚さ＝３．５ |
68124-13090 |
US $64.36 |
||
|
68142B
|
68142B
68142-13050
Run, Rear Door Window, Rh
[08.1989 - 08.1991] AE95,CE96,EE96,98..V,WG |
68142-13050 |
— | ||
|
68152B
|
68152B
68152-13010
Run, Rear Door Window, Lh
[08.1989 - 08.1991] AE95,CE96,EE96,98..V,WG |
68152-13010 |
— | ||
|
68162A
|
68162A
68211-12160 Clip(For Front Door Glass Outer Weatherstrip)[08.1988 - 08.1991] CE96,EE96,98 |
68211-12160 |
from US $1.79 |
||
|
68180C
|
68180C
68180-12090
Weatherstrip Assy, Rear Door Glass, Outer Rh
[08.1988 - 08.1991] CE96,EE96,98 |
68180-12090 |
— | ||
|
68188
|
68188
68188-13040 Weatherstrip, Rear Door Quarter Window, Rh[08.1988 - 08.1991] CE96,EE96,98 |
68188-13040 |
US $22.42 |
||
|
68189
|
68189
68189-13040 Weatherstrip, Rear Door Quarter Window, Lh[08.1988 - 08.1991] CE96,EE96,98 |
68189-13040 |
US $22.42 |
||
|
68230C
|
68230C
68230-12060
Weatherstrip Assy, Rear Door Glass, Outer Lh
[08.1988 - 08.1991] CE96,EE96,98 |
68230-12060 |
— | ||
|
68617A
|
68617A
68617-12030 Pin, Front Door Check[09.1988 - 08.1991] AE9#,CE9#,EE9# |
68617-12030 |
US $3.67 |
||
|
68617A
|
68617A
68617-22020 Pin(For Front Door Check)[05.1987 - 09.1988] AE9#,CE9#,EE9# |
68617-22020 |
US $3.93 |
||
|
68630
|
68630
68630-12040 Check Assy, Rear Door[05.1987 - 08.1991] AE9#,CE9#,EE9# |
68630-12040 |
US $49.80 |
||
|
9011906383
|
9011906383
90119-06383 New Genuine Part |
90119-06383 |
US $1.60 |
||
| replacement | |||||
|
9011906383
|
9011906383
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9015150013
|
9015150013
90151-50013 New Genuine Part |
90151-50013 |
US $1.92 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9095001336
|
9095001336
90950-01336
Plug, Hole(For Front Door Panel)
|
90950-01336 |
— | ||
| replacement | |||||
|
9095001336
|
9095001336
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
