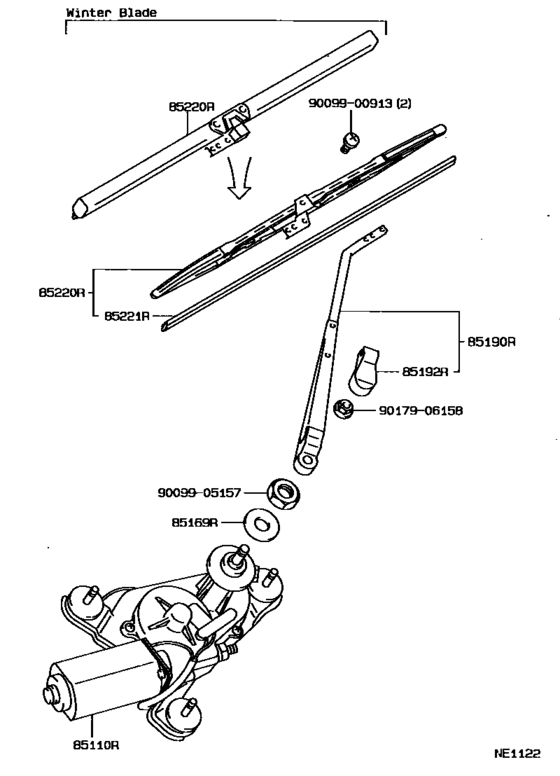

Rear Wiper ([08.1988 - ] (8808- )CE96,EE96,98) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1988 - 1991
- Sales region
- Japan
- Frame
- CE96
- grade
- DX
- body
- V
- ENGINE
- 1C
- TRANSMISSION
- ATM
- Model
- SPRINTER
- From
- 08.1988
- To
- 08.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85110-13050 Motor Assy, Rear Wiper[08.1988 - 08.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL |
85110-13050 |
US $254.80 |
||
|
85169R
|
85169R
85179-16150 Washer, Rear Wiper Link Pivot, No.1[08.1988 - 08.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL |
85179-16150 |
from US $1.92 |
||
|
85190R
|
85190R
85190-13070 Arm Assy, Rear Wiper[08.1988 - 07.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL |
85190-13070 |
US $40.04 |
||
| replacement | |||||
|
85190R
|
85190R
85190-13071 Arm Assy, Rear Wiper[08.1988 - 07.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL |
85190-13071 |
US $39.60 |
||
|
85190R
|
85190R
85190-13071 Arm Assy, Rear Wiper[07.1989 - 08.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL |
85190-13071 |
US $39.60 |
||
|
85192R
|
85192R
85192-13060 Cover, Rear Wiper Arm[02.1988 - 08.1989] EE98..4F;EE98..3FC..DX;AE95,CE96,EE96..AV1,AV2,DX,RVS,XL |
85192-13060 |
from US $5.64 |
||
|
85220R
|
85220R
85220-22620 Blade Assy, Rear Wiper[08.1988 - 07.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX; CE96,EE96..DX,XL |
85220-22620 |
US $24.90 |
||
| replacement | |||||
|
85220R
|
85220R
85220-22621 Blade Assy, Rear Wiper[08.1988 - 07.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX; CE96,EE96..DX,XL |
85220-22621 |
US $24.90 |
||
|
85220R
|
85220R
85220-22621 Blade Assy, Rear Wiper[07.1989 - 08.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL |
85220-22621 |
US $24.90 |
||
|
85220R
|
85220R
85220-22630 Blade Assy, Rear Wiper[08.1988 - 03.1990] CE96,EE96,98..DX,XL ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
85220-22630 |
US $33.20 |
||
| replacement | |||||
|
85220R
|
85220R
85291-13010 Blade Assy, Rear Wiper[08.1988 - 03.1990] CE96,EE96,98..DX,XL ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
85291-13010 |
US $35.09 |
||
|
85220R
|
85220R
85291-13010 Blade Assy, Rear Wiper[03.1990 - 08.1991] CE96,EE96,98..DX,XL ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
85291-13010 |
US $35.09 |
||
|
85221R
|
85221R
85221-13010 Blade, Rear Wiper[08.1988 - 08.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL |
85221-13010 |
US $7.72 |
||
| replacement | |||||
|
85221R
|
85221R
85214-12H90 Rubber, Blade Wiper[08.1988 - 08.1989] EE98..(3FC,5F)..XL; EE98..4F;EE98..3FC..DX;CE96,EE96..DX,XL |
85214-12H90 |
US $10.88 |
||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
from US $2.48 |
||
|
9009905157
|
9009905157
90099-05157 Nut, Windshield Wiper Link Pivot |
90099-05157 |
from US $3.52 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
