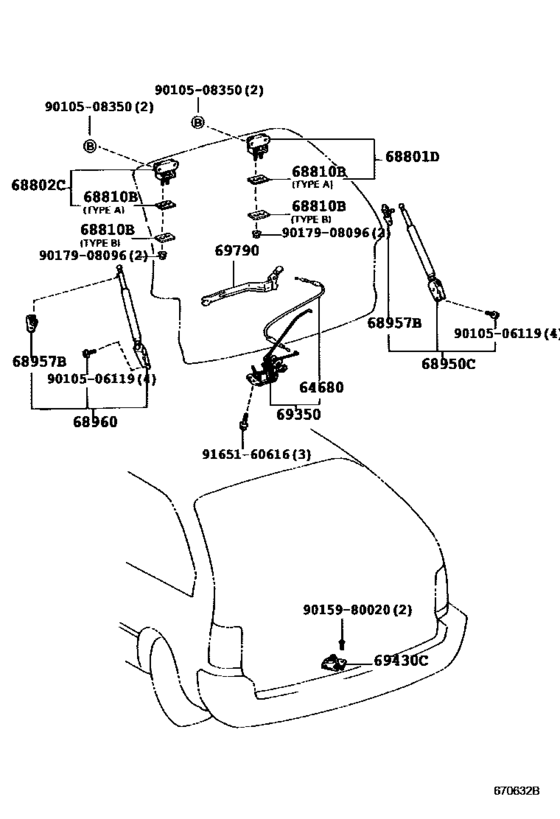

Back Door Lock & Handle ([09.1991 - ] (9109- )AE109,CE102,105,106,107,108,109,EE102 ,103,104,106,107,108) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 2000 - 2002
- Sales region
- Japan
- Frame
- EE102
- grade
- DX
- body
- V
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 08.2000
- To
- 06.2002
- Gear Shift Type
- 5F
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64680
|
64680
64680-13032
Cable Assy, Back Door Lock Control
[04.1998 -] AE109,CE10#,EE10# |
64680-13032 |
— | ||
|
68801D
|
68801D
68801-13090
Hinge Sub-Assy, Back Door, Rh
[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
68801-13090 |
— | ||
|
68802C
|
68802C
68801-13090
Hinge Sub-Assy, Back Door, Rh
[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
68801-13090 |
— | ||
|
68810B
|
68810B
68838-13010 Pad, Back Door Hinge[04.1998 -] EE103..5F..DX;CE10#,EE102..4FC,5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
68838-13010 |
US $3.49 |
||
|
68810B
|
68810B
68863-13010 Pad, Back Door Hinge[04.1998 -] EE103..5F..DX;CE10#,EE102..4FC,5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
68863-13010 |
US $1.75 |
||
|
68950C
|
68950C
68950-19775 Stay Assy, Back Door, Rh[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
68950-19775 |
US $101.34 |
||
|
68950C
|
68950C
68950-19785 Stay Assy, Back Door, Rh[04.1997 -] EE102..3FC,5F;EE102..4F..DXJ;AE109,CE10#,EE103 ｱﾘ(*RW) |
68950-19785 |
US $101.34 |
||
|
68957B
|
68957B
68957-13020 Bracket, Back Door Stay, Lower[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
68957-13020 |
US $6.12 |
||
|
68960
|
68960
68960-19465 Stay Assy, Back Door, Lh[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
68960-19465 |
US $101.34 |
||
|
68960
|
68960
68960-19475 Stay Assy, Back Door, Lh[04.1997 -] EE102..3FC,5F;EE102..4F..DXJ;AE109,CE10#,EE103 ｱﾘ(*RW) |
68960-19475 |
US $101.34 |
||
|
69350
|
69350
69350-13184
Lock Assy, Back Door
[08.2000 -] EE102,103..5F..DX; EE102..5F..DXJ ｱﾘ(ﾊﾞﾂｸﾄﾞｱ & ﾄﾗﾝｸ ｵ-ﾌﾟﾅ) |
69350-13184 |
— | ||
|
69430C
|
69430C
69430-13010 Striker Assy, Back Door Lock[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
69430-13010 |
US $26.56 |
||
|
69790
|
69790
69790-13010
Control Assy, Back Door Lock
[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
69790-13010 |
— | ||
|
9010506119
|
9010506119
90105-06119
New Genuine Part
|
90105-06119 |
— | ||
| replacement | |||||
|
9010506119
|
9010506119
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9010508350
|
9010508350
90105-08350 New Genuine Part |
90105-08350 |
US $1.65 |
||
|
9015980020
|
9015980020
90159-80020
SCREW
|
90159-80020 |
— | ||
| replacement | |||||
|
9015980020
|
9015980020
90151-80016 SCREW CROSSRECESS |
90151-80016 |
US $2.08 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.46 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
