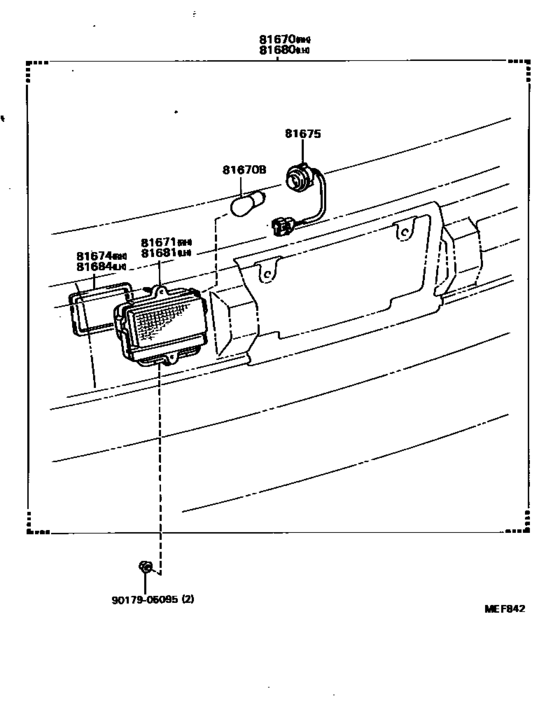

Back Up Lamp ([05.1985 - ] (8505- )4D) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- EE80
- grade
- DX
- ENGINE
- 2ELU
- TRANSMISSION
- ATM
- Model
- SPRINTER
- From
- 05.1985
- To
- 04.1987
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81670
|
81670
81670-12020 Lamp Assy, Back-Up, RhBACK-UP, RH [05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81670-12020 |
US $104.83 |
||
|
81670B
|
81670B
99132-11230
Bulb, Fog Lamp
[05.1985 - 04.1987] AE8#,CE80,EE80..4D １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81670B
|
81670B
00234-01073 Bulb[05.1985 - 04.1987] AE8#,CE80,EE80..4D １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81671
|
81671
81671-12020 Lens, Back-Up Lamp, RhBACK-UP LAMP, RH [05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81671-12020 |
US $85.90 |
||
|
81674
|
81674
81674-12020
Gasket, Back-Up Lamp Body, Rh
[05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81674-12020 |
— | ||
|
81675
|
81675
81675-12020
Socket & Wire, Back-Up Lamp
[05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81675-12020 |
— | ||
|
81680
|
81680
81680-12010 Lamp Assy, Back Up, LhBACK UP, LH [05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81680-12010 |
US $104.83 |
||
|
81681
|
81681
81681-12010 Lens, Back-Up Lamp, LhBACK-UP LAMP, LH [05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81681-12010 |
US $85.90 |
||
|
81684
|
81684
81674-12020
Gasket, Back-Up Lamp Body, Rh
[05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81674-12020 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
