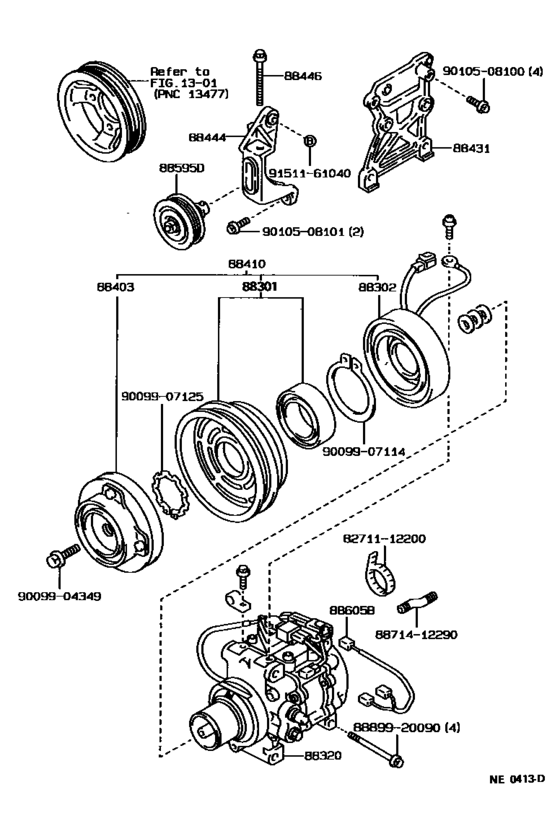

Heating & Air Conditioning - Compressor ([05.1987 - ] (8705- )EE9#) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1988 - 1991
- Sales region
- Japan
- Frame
- EE96
- grade
- DX
- body
- V
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 08.1988
- To
- 08.1991
- Gear Shift Type
- 4F
- Vehicle Model
- SPRINTER
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-16050
Rotor Sub-Assy, Magnet Clutch
[05.1987 - 08.1989] EE9# |
88412-16050 |
— | ||
|
88302
|
88302
88411-16021
Stator Sub-Assy, Magnet Clutch
[05.1987 - 08.1989] EE9# |
88411-16021 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-60030
Stator Sub-Assy, Magnet Clutch
[05.1987 - 08.1989] EE9# |
88411-60030 |
— | ||
|
88320
|
88320
88320-12620
Compressor Assy, Cooler
[03.1988 - 05.1989] EE9# |
88320-12620 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-12750
Compressor Assy, Cooler
[03.1988 - 05.1989] EE9# |
88320-12750 |
— | ||
|
88320
|
88320
88320-12630
Compressor Assy, Cooler
[03.1988 - 05.1989] EE96,98;EE90..LX,MX ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
88320-12630 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-12760
Compressor Assy, Cooler
[03.1988 - 05.1989] EE96,98;EE90..LX,MX ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
88320-12760 |
— | ||
|
88320
|
88320
88320-12670
Compressor Assy, Cooler
[03.1988 - 05.1989] EE96,98;EE90..LX,MX ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
88320-12670 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-12810
Compressor Assy, Cooler
[03.1988 - 05.1989] EE96,98;EE90..LX,MX ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
88320-12810 |
— | ||
|
88320
|
88320
88320-12680
Compressor Assy, Cooler
[03.1988 - 05.1989] EE9# |
88320-12680 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-12800
Compressor Assy, Cooler
[03.1988 - 05.1989] EE9# |
88320-12800 |
— | ||
|
88320
|
88320
88320-12750
Compressor Assy, Cooler
[08.1989 - 08.1991] EE9# |
88320-12750 |
— | ||
|
88320
|
88320
88320-12760
Compressor Assy, Cooler
[08.1989 - 08.1991] EE98;EE96..3FC;EE90..LX,MX ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ); EE96..4F ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
88320-12760 |
— | ||
|
88320
|
88320
88320-12800
Compressor Assy, Cooler
[08.1989 - 08.1991] EE90,96 A/C.SW.=1PB |
88320-12800 |
— | ||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[05.1987 - 08.1989] EE9# |
88403-16011 |
US $82.47 |
||
|
88410
|
88410
88410-10210 Clutch Assy, Magnet[08.1989 - 08.1991] EE96..4F; EE90,98;EE96..3FC |
88410-10210 |
US $556.19 |
||
| replacement | |||||
|
88410
|
88410
88410-1A080 Clutch Assy, Magnet[08.1989 - 08.1991] EE96..4F; EE90,98;EE96..3FC |
88410-1A080 |
from US $446.16 |
||
|
88410
|
88410
88410-12250 Clutch Assy, Magnet[08.1989 - 08.1991] EE96..4F A/C SW.=1PB,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
88410-12250 |
US $563.47 |
||
|
88410
|
88410
88410-16050
Clutch Assy, Magnet
[05.1987 - 05.1989] AE92; EE9# |
88410-16050 |
— | ||
| replacement | |||||
|
88410
|
88410
88410-1A080 Clutch Assy, Magnet[05.1987 - 05.1989] AE92; EE9# |
88410-1A080 |
from US $446.16 |
||
|
88431
|
88431
88431-12370
Bracket, Compressor Mounting, No.1
[05.1987 - 08.1989] EE9# |
88431-12370 |
— | ||
|
88431
|
88431
88431-12430
Bracket, Compressor Mounting, No.1
[08.1989 - 08.1991] EE96..4F ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
88431-12430 |
— | ||
|
88444
|
88444
88444-10031
Bracket, Idle Pulley
[05.1987 - 08.1989] EE90,96 |
88444-10031 |
— | ||
|
88446
|
88446
88446-12030
Bolt, Idle Pulley
[05.1988 - 05.1989] EE90;CE90..DX,LX;AE91,95,CE96,EE96,98..AV1,DX,RVS,STD,XL |
88446-12030 |
— | ||
|
88595D
|
88595D
88440-12170 Pulley Assy, Power Steering Idle[05.1988 - 05.1989] CE90..LX; EE90;CE9#,EE96,98..DX,STD,XL |
88440-12170 |
from US $85.90 |
||
|
88595D
|
88595D
88440-17010 Pulley Assy, Idle[08.1989 - 08.1991] EE96..4F ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
88440-17010 |
US $94.72 |
||
|
88605B
|
88605B
88605-1A750
Harness Sub-Assy, Cooler Wiring, No.1
[05.1987 - 08.1989] EE96,98;EE90..LX,MX |
88605-1A750 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8871412290
|
8871412290
88714-12290
Cover, Air Conditioner
|
88714-12290 |
— | ||
| replacement | |||||
|
8871412290
|
8871412290
88896-12150
Cover, Air Conditioner
|
88896-12150 |
— | ||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.11 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
||
|
9010508101
|
9010508101
90105-08101 New Genuine Part |
90105-08101 |
US $1.22 |
||
|
9151161040
|
9151161040
91511-61040 Bolt, Flange (For Idler) |
91511-61040 |
US $2.72 |
||
