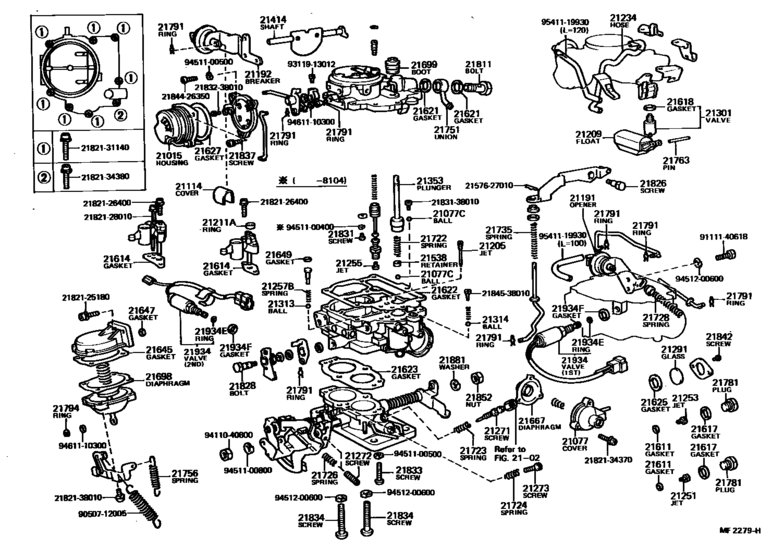

Carburetor ([08.1979 - 08.1981] (7908-8108)13TU) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- TE70
- grade
- SE
- body
- LB
- ENGINE
- 13TU
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21015
|
21015
21015-18060
Housing Sub-Assy, Coil
[08.1979 - 08.1981] 13TU..TE70 |
21015-18060 |
— | ||
|
21077
|
21077
21077-26350 Cover(For Auxiliary Acceleration Pump)[08.1979 - 08.1981] 13TU..TE70 |
21077-26350 |
US $77.17 |
||
|
21077C
|
21077C
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[08.1979 - 08.1981] 13TU..TE70 |
21314-11020 |
US $3.84 |
||
|
21114
|
21114
21115-18060
Cover(For Choke Lever)
[08.1979 - 08.1981] 13TU..TE70 |
21115-18060 |
— | ||
|
21191
|
21191
21191-18040 Opener[08.1979 - 08.1981] 13TU..TE70 |
21191-18040 |
US $147.06 |
||
|
21192
|
21192
21192-18040 Breaker[08.1979 - 11.1979] 13TU..TE70 |
21192-18040 |
US $174.72 |
||
| replacement | |||||
|
21192
|
21192
21192-18100
Breaker
[08.1979 - 11.1979] 13TU..TE70 |
21192-18100 |
— | ||
|
21192
|
21192
21192-18100
Breaker
[11.1979 - 08.1981] 13TU..TE70 |
21192-18100 |
— | ||
|
21205
|
21205
21205-26390 Jet Sub-Assy, SlowSLOW [08.1979 - 08.1981] 13TU..TE70 |
21205-26390 |
US $12.08 |
||
|
21209
|
21209
21209-15020 Float Sub-Assy[04.1980 - 04.1983] 3AU..AE70; 13TU..TE70 |
21209-15020 |
US $33.90 |
||
|
21209
|
21209
21209-27040
Float Sub-Assy
[03.1979 - 04.1980] 13TU..TE70; 3AU..AE70 |
21209-27040 |
— | ||
|
21211A
|
21211A
21659-38110 Ring(For Small Venturi)[08.1979 - 08.1981] 13TU..TE70 |
21659-38110 |
US $15.43 |
||
|
21234
|
21234
21234-18080 Pipe Or Hose[08.1979 - 08.1981] 13TU..TE70 |
21234-18080 |
US $18.78 |
||
| replacement | |||||
|
21234
|
21234
90999-92002
Air Hose (300 mm)
[08.1979 - 08.1981] 13TU..TE70 |
90999-92002 |
— | ||
|
21251
|
21251
90999-41099 Jet, 1St Main[08.1979 - 08.1981] 13TU..TE70 ID=0.99 |
90999-41099 |
US $6.12 |
||
|
21253
|
21253
90999-42180
Jet, 2Nd Main
[08.1979 - 08.1981] 13TU..TE70 ID=1.80 |
90999-42180 |
— | ||
|
21255
|
21255
90999-43047 Jet, Power[08.1979 - 08.1981] 13TU..TE70 ID=0.47 |
90999-43047 |
US $5.53 |
||
|
21271
|
21271
21271-25201
Screw, Idle Adjusting
[08.1979 - 08.1981] 13TU..TE70 |
21271-25201 |
— | ||
| replacement | |||||
|
21271
|
21271
21271-15230
Screw, Idle Adjusting
[08.1979 - 08.1981] 13TU..TE70 |
21271-15230 |
— | ||
|
21272
|
21272
21828-25180 Screw, 1St Idle Adjusting[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21828-25180 |
US $3.06 |
||
|
21273
|
21273
21844-33010
Screw, 1St Idle Adjusting
[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21844-33010 |
— | ||
|
21291
|
21291
21291-60200
Glass, Level Gage
[03.1979 - 04.1983] 4KU..KE70; 13TU..TE70 |
21291-60200 |
— | ||
|
21301
|
21301
21301-14010 Valve Sub-Assy, Needle[08.1979 - 09.1979] 13TU..TE70 |
21301-14010 |
US $29.27 |
||
|
21301
|
21301
21301-15020 Valve Sub-Assy, Needle[04.1980 - 04.1983] 3AU..AE70; 13TU..TE70 |
21301-15020 |
US $36.11 |
||
|
21301
|
21301
21301-15080 Valve Sub-Assy, NeedleNEEDLE [09.1979 - 04.1980] 13TU..TE70 |
21301-15080 |
US $33.92 |
||
| replacement | |||||
|
21301
|
21301
21301-15020 Valve Sub-Assy, Needle[09.1979 - 04.1980] 13TU..TE70 |
21301-15020 |
US $36.11 |
||
|
21313
|
21313
21313-11020 Ball, Steel, No.1(For Discharge Weight)[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21313-11020 |
US $3.67 |
||
|
21314
|
21314
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21314-11020 |
US $3.84 |
||
|
21353
|
21353
21353-33010
Plunger, Pump
[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21353-33010 |
— | ||
| replacement | |||||
|
21353
|
21353
21353-16510
Plunger, Pump
[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21353-16510 |
— | ||
|
21414
|
21414
21054-26401 Shaft, ChokeCHOKE [03.1979 - 08.1981] 3AU..AE70; 13TU..TE70 |
21054-26401 |
US $29.12 |
||
|
21538
|
21538
21538-31010 Retainer, Ball Check[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21538-31010 |
US $4.37 |
||
|
21611
|
21611
21611-22010 Gasket, Main Jet[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21611-22010 |
US $3.32 |
||
|
21614
|
21614
21614-33010 Gasket, Venturi[03.1979 - 04.1983] 3AU..AE70 1ST; 13TU..TE70 1ST |
21614-33010 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21614-16280 Gasket, Venturi[03.1979 - 04.1983] 3AU..AE70 1ST; 13TU..TE70 1ST |
21614-16280 |
US $2.52 |
||
|
21614
|
21614
21614-33080 Gasket, Venturi[03.1979 - 04.1983] 3AU..AE70 2ND; 13TU..TE70 2ND |
21614-33080 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21615-16280 Gasket, Venturi[03.1979 - 04.1983] 3AU..AE70 2ND; 13TU..TE70 2ND |
21615-16280 |
US $3.19 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[04.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21618-14010 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-26510
Gasket, Air Horn
[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21622-26510 |
— | ||
| replacement | |||||
|
21622
|
21622
21622-15310
Gasket, Air Horn
[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21622-15310 |
— | ||
|
21623
|
21623
21623-25180
Gasket, Body Flange
[03.1979 - 08.1981] 3AU..AE70; 13TU..TE70 |
21623-25180 |
— | ||
| replacement | |||||
|
21623
|
21623
21623-16280
Gasket, Body Flange
[03.1979 - 08.1981] 3AU..AE70; 13TU..TE70 |
21623-16280 |
— | ||
|
21625
|
21625
21655-60200 Gasket, Level Gage[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21655-60200 |
US $9.90 |
||
|
21627
|
21627
21627-34080
Gasket, Coil Housing
[03.1979 - 08.1981] 3AU..AE70; 13TU..TE70 |
21627-34080 |
— | ||
|
21645
|
21645
21645-33080
Gasket, Diaphragm, Cap
[03.1979 - 08.1981] 3AU..AE70; 13TU..TE70 |
21645-33080 |
— | ||
| replacement | |||||
|
21645
|
21645
21645-41010
Gasket, Diaphragm, Cap
[03.1979 - 08.1981] 3AU..AE70; 13TU..TE70 |
21645-41010 |
— | ||
|
21647
|
21647
21649-33080
Gasket, Diaphragm Housing Cap
[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21649-33080 |
— | ||
|
21649
|
21649
21655-11040 Ring, O(For Pump Jet)[08.1979 - 08.1981] 13TU..TE70 |
21655-11040 |
from US $4.17 |
||
|
21667
|
21667
21667-38011
Diaphragm
[03.1979 - 12.1980] 13TU..TE70; 3AU..AE70 |
21667-38011 |
— | ||
| replacement | |||||
|
21667
|
21667
21675-35330
Diaphragm
[03.1979 - 12.1980] 13TU..TE70; 3AU..AE70 |
21675-35330 |
— | ||
|
21667
|
21667
21667-38310
Diaphragm
[12.1980 - 04.1983] 3AU..AE70; 13TU..TE70 |
21667-38310 |
— | ||
| replacement | |||||
|
21667
|
21667
21675-35510 Diaphragm[12.1980 - 04.1983] 3AU..AE70; 13TU..TE70 |
21675-35510 |
from US $15.04 |
||
|
21698
|
21698
21669-25010
Diaphragm
[03.1979 - 08.1981] 3AU..AE70; 13TU..TE70 |
21669-25010 |
— | ||
|
21699
|
21699
21699-21061
Boot(For Pump Plunger)
[03.1979 - 09.1980] 13TU..TE70; 3AU..AE70; 4KU..KE70 |
21699-21061 |
— | ||
| replacement | |||||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[03.1979 - 09.1980] 13TU..TE70; 3AU..AE70; 4KU..KE70 |
21699-28150 |
US $14.50 |
||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[09.1980 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21699-28150 |
US $14.50 |
||
|
21722
|
21722
21722-22010 Spring, Pump Damping[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21722-22010 |
US $3.89 |
||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21723-21030 |
US $4.19 |
||
|
21724
|
21724
21723-21030 Spring, Idle Adjusting[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21723-21030 |
US $4.19 |
||
|
21726
|
21726
21723-21030 Spring, Idle Adjusting[03.1979 - 11.1982] 3AU..AE70; 13TU..TE70 |
21723-21030 |
US $4.19 |
||
|
21728
|
21728
21756-25181 Spring, Throttle Valve Return[03.1979 - 04.1983] 3AU..AE70 CW=30.5; 13TU..TE70 CW=30.5 |
21756-25181 |
US $9.17 |
||
|
21735
|
21735
21735-18060 Spring, Pump Arm[08.1979 - 08.1981] 13TU..TE70 |
21735-18060 |
US $3.64 |
||
|
21751
|
21751
21894-26350 Union, Nipple[04.1980 - 08.1981] 13TU..TE70 |
21894-26350 |
US $34.36 |
||
|
21751
|
21751
90405-06003
Union, Nipple
[08.1979 - 04.1980] 13TU..TE70 |
90405-06003 |
— | ||
|
21756
|
21756
21756-33080
Spring, Back(For Throttle Shaft)
[08.1979 - 08.1981] 13TU..TE70 |
21756-33080 |
— | ||
|
21763
|
21763
21763-26350 Pin, Float Lever[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21763-26350 |
US $4.08 |
||
|
21781
|
21781
21781-30020 Plug, Main Passage(For Carburetor Jet)[03.1979 - 08.1981] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21781-30020 |
US $9.90 |
||
| replacement | |||||
|
21781
|
21781
21781-16510
Plug, Main Passage(For Carburetor Jet)
[03.1979 - 08.1981] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21781-16510 |
— | ||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21791-13010 |
from US $1.76 |
||
|
21794
|
21794
21794-40070 Ring, Retainer, No.1(For Throttle Shaft)[08.1979 - 08.1981] 13TU..TE70 |
21794-40070 |
US $2.77 |
||
|
21811
|
21811
21811-11060 Bolt, Union Nipple[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21811-11060 |
US $9.46 |
||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21826-31012 |
— | ||
|
21828
|
21828
21845-26400 Screw, 1St Idle Set[03.1979 - 08.1981] 13TU..TE70 |
21845-26400 |
US $9.46 |
||
|
21831
|
21831
21821-15060 Screw, 2Nd Throttle Valve Set[04.1981 - 08.1981] 3AU..AE70; 13TU..TE70 |
21821-15060 |
US $3.06 |
||
|
21831
|
21831
21842-33010
Screw, Power Piston Stop
[03.1979 - 04.1981] 13TU..TE70; 3AU..AE70; 4KU..KE70 |
21842-33010 |
— | ||
|
21833
|
21833
21833-33010
Screw, Set, No.1(For Carburetor Body Set)
[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21833-33010 |
— | ||
|
21834
|
21834
21844-26400 Screw, Set(For 1St Idle Cam Follower Set)[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21844-26400 |
US $4.95 |
||
|
21837
|
21837
21821-25010 Screw, Coil Housing Set[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21821-25010 |
US $3.84 |
||
|
21842
|
21842
21842-33010
Screw, Power Piston Stop
[03.1979 - 04.1983] 3AU..AE70; 13TU..TE70 |
21842-33010 |
— | ||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21852-30010 |
US $4.22 |
||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21881-60010 |
US $3.79 |
||
|
21934
|
21934
21062-18040 Solenoid, Throttle Valve[08.1979 - 08.1981] 13TU..TE70 1ST |
21062-18040 |
US $151.42 |
||
|
21934
|
21934
21072-26800 Solenoid, Throttle Valve[08.1979 - 08.1981] 13TU..TE70 2ND |
21072-26800 |
US $128.13 |
||
| replacement | |||||
|
21934
|
21934
21062-16011
Solenoid, Throttle Valve
[08.1979 - 08.1981] 13TU..TE70 2ND |
21062-16011 |
— | ||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[03.1979 - 04.1983] 3AU..AE70; 4KU..KE70; 13TU..TE70 |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21617-10010
Gasket
[03.1979 - 04.1983] 4KU..KE70; 13TU..TE70 |
21617-10010 |
— | ||
|
2157627010
|
2157627010
21576-27010
Clip, Pump Strainer
|
21576-27010 |
— | ||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
2182126400
|
2182126400
21821-26400 Screw, 2nd Throttle Valve Set |
21821-26400 |
US $3.20 |
||
|
2182128010
|
2182128010
21821-28010
Screw, 2nd Throttle Valve Set
|
21821-28010 |
— | ||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2182134370
|
2182134370
21821-34370
Screw, 2nd Throttle Valve Set
|
21821-34370 |
— | ||
|
2182134380
|
2182134380
21821-34380
Screw, 2nd Throttle Valve Set
|
21821-34380 |
— | ||
|
2182138010
|
2182138010
21821-38010
Screw, 2nd Throttle Valve Set
|
21821-38010 |
— | ||
|
2183138010
|
2183138010
21831-38010 Screw, Power Piston Stop |
21831-38010 |
US $4.37 |
||
|
2183238010
|
2183238010
21832-38010
Screw, Thermostat Case Set
|
21832-38010 |
— | ||
|
2184426350
|
2184426350
21844-26350
Screw, Thermostat Case Set
|
21844-26350 |
— | ||
|
2184538010
|
2184538010
21845-38010 Screw, 1St Idle Set |
21845-38010 |
US $5.39 |
||
|
9050712005
|
9050712005
90507-12005 New Genuine Part |
90507-12005 |
US $7.28 |
||
|
9111140618
|
9111140618
91111-40618 New Genuine Part |
91111-40618 |
US $2.18 |
||
| replacement | |||||
|
9111140618
|
9111140618
91111-50618 New Genuine Part |
91111-50618 |
US $2.18 |
||
|
9311913012
|
9311913012
93119-13012 New Genuine Part |
93119-13012 |
US $1.75 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
