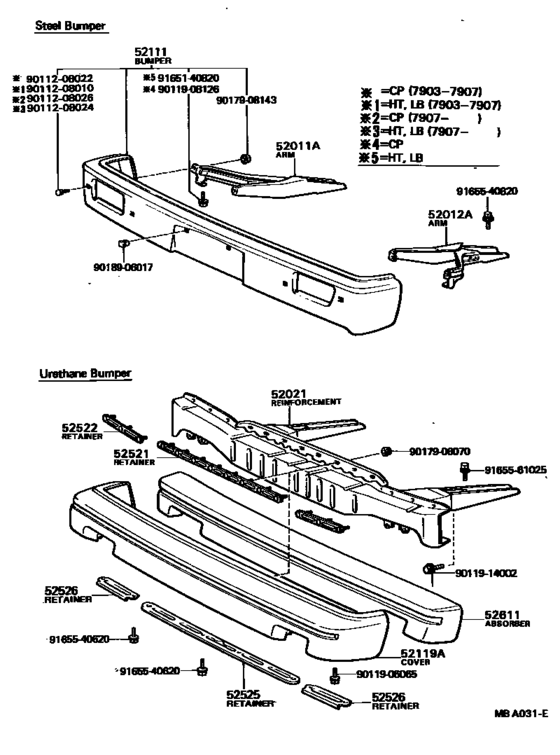

Front Bumper & Bumper Stay ([03.1979 - 08.1981] (7903-8108)2D) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- TE70
- grade
- SE
- body
- LB
- ENGINE
- 13TU
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-12030 Reinforcement Sub-Assy, Front Bumper[03.1979 - 09.1979] AE70,KE70,TE7#..2D |
52021-12030 |
US $340.70 |
||
| replacements | |||||
|
52021
|
52021
52021-12032
Reinforcement Sub-Assy, Front Bumper
[03.1979 - 09.1979] AE70,KE70,TE7#..2D |
52021-12032 |
— | ||
|
52021
|
52021
52506-12010
Retainer, Front Bumper, Lower Center
[03.1979 - 09.1979] AE70,KE70,TE7#..2D |
52506-12010 |
— | ||
|
52021
|
52021
52021-12031 Reinforcement Sub-Assy, Front Bumper[09.1979 - 08.1981] AE70,KE70,TE7#..2D |
52021-12031 |
US $342.16 |
||
| replacement | |||||
|
52021
|
52021
52021-12032
Reinforcement Sub-Assy, Front Bumper
[09.1979 - 08.1981] AE70,KE70,TE7#..2D |
52021-12032 |
— | ||
|
52119A
|
52119A
52119-12030
Cover, Front Bumper
[03.1979 - 08.1981] AE70,KE70,TE7#..2D |
52119-12030 |
— | ||
|
52521
|
52521
52521-12010
Retainer, Front Bumper, Upper Center
[03.1979 - 08.1981] AE70,KE70,TE7#..2D |
52521-12010 |
— | ||
|
52522
|
52522
52522-12010
Retainer, Front Bumper Upper Side
[03.1979 - 08.1981] AE70,KE70,TE7#..2D |
52522-12010 |
— | ||
|
52525
|
52525
52506-12010
Retainer, Front Bumper, Lower Center
[09.1979 - 08.1981] AE70,KE70,TE7#..2D |
52506-12010 |
— | ||
|
52525
|
52525
52525-16010
Retainer, Front Bumper, Lower Center
[03.1979 - 09.1979] AE70,KE70,TE7#..2D |
52525-16010 |
— | ||
| replacement | |||||
|
52525
|
52525
52525-16030
Retainer, Front Bumper, Lower Center
[03.1979 - 09.1979] AE70,KE70,TE7#..2D |
52525-16030 |
— | ||
|
52526
|
52526
52526-16010
Retainer, Front Bumper, Lower Side
[03.1979 - 08.1981] AE70,KE70,TE7#..2D |
52526-16010 |
— | ||
| replacement | |||||
|
52526
|
52526
52526-16020 Retainer, Front Bumper, Lower Side Rh[03.1979 - 08.1981] AE70,KE70,TE7#..2D |
52526-16020 |
US $9.61 |
||
|
52611
|
52611
52611-12030
Absorber, Front Bumper Energy
[03.1979 - 08.1981] AE70,KE70,TE7#..2D |
52611-12030 |
— | ||
|
9011208010
|
9011208010
90112-08010
New Genuine Part
|
90112-08010 |
— | ||
|
9011208022
|
9011208022
90112-08022 New Genuine Part |
90112-08022 |
US $3.93 |
||
|
9011208024
|
9011208024
90112-08024
Bolt, Round Head Square Neck(For Front Bumper)
|
90112-08024 |
— | ||
|
9011208026
|
9011208026
90112-08026 Bolt, Round Head Square Neck(For Front Bumper)ROUND HEAD SQUARE NECK(FOR FRONT BUMPER) |
90112-08026 |
US $4.22 |
||
|
9011906065
|
9011906065
90119-06065 New Genuine Part |
90119-06065 |
from US $1.28 |
||
|
9011908126
|
9011908126
90119-08126 BOLT |
90119-08126 |
US $3.20 |
||
|
9011914002
|
9011914002
90119-14002
New Genuine Part
|
90119-14002 |
— | ||
| replacement | |||||
|
9011914002
|
9011914002
90119-14013
New Genuine Part
|
90119-14013 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9018906017
|
9018906017
90189-06017 New Genuine Part |
90189-06017 |
US $2.62 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165561025
|
9165561025
91655-61025
Bolt, No.1 (For Center Support Bearing)
|
91655-61025 |
— | ||
| replacement | |||||
|
9165561025
|
9165561025
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.08 |
||
