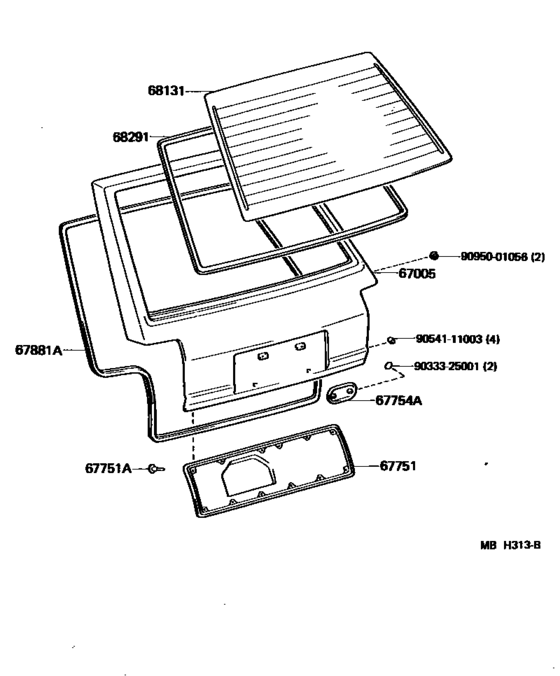

Back Door Panel & Glass ([10.1984 - ] (8410- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67005
|
67005
67005-10310 Panel Sub-Assy, Back DoorBACK DOOR [10.1984 - 08.1985] EP7# W/O *RW,W/*DEF |
67005-10310 |
US $684.32 |
||
|
67005
|
67005
67005-10311 Panel Sub-Assy, Back DoorBACK DOOR [08.1985 - 12.1989] EP7# W/O *RW,W/*DEF |
67005-10311 |
US $688.69 |
||
|
67005
|
67005
67005-10320 Panel Sub-Assy, Back DoorBACK DOOR [10.1984 - 08.1985] EP7# W/*RW,*DEF |
67005-10320 |
US $684.32 |
||
|
67005
|
67005
67005-10321 Panel Sub-Assy, Back DoorBACK DOOR [08.1985 - 12.1989] EP7# W/*RW,*DEF |
67005-10321 |
US $688.69 |
||
|
67005
|
67005
67005-10350 Panel Sub-Assy, Back DoorBACK DOOR [10.1984 - 08.1985] EP7# W/*RW,W/O *DEF |
67005-10350 |
US $684.32 |
||
|
67005
|
67005
67005-10351 Panel Sub-Assy, Back DoorBACK DOOR [08.1985 - 12.1986] EP7# W/*RW,W/O *DEF |
67005-10351 |
US $687.23 |
||
|
67005
|
67005
67005-10370 Panel Sub-Assy, Back DoorBACK DOOR [10.1984 - 12.1989] EP7# W/O *RW,*DEF |
67005-10370 |
US $688.69 |
||
|
67751
|
67751
67751-10020-03 Board, Back Door Trim[10.1984 - 12.1989] EP7# GRAY,GRAY |
67751-10020-03 |
US $81.54 |
||
|
67751
|
67751
67751-10020-04 Board, Back Door Trim[10.1984 - 12.1986] EP7# BLUE,BLUE |
67751-10020-04 |
US $81.54 |
||
|
67751
|
67751
67751-10020-06 Board, Back Door Trim[12.1986 - 12.1989] EP7# BROWN,BROWN |
67751-10020-06 |
US $81.54 |
||
|
67751A
|
67751A
90467-07041-03
Clip(For Console Box)
[10.1984 - 12.1989] EP7# GRAY,GRAY |
90467-07041-03 |
— | ||
| replacement | |||||
|
67751A
|
67751A
90467-07041-P0 Clip(For Rear Seat Side Garnish)[10.1984 - 12.1989] EP7# GRAY,GRAY |
90467-07041-P0 |
US $2.24 |
||
|
67751A
|
67751A
90467-07041-06 Clip(For Console Box)[12.1986 - 12.1989] EP7# BROWN,SEPIA BROWN |
90467-07041-06 |
US $1.89 |
||
| replacement | |||||
|
67751A
|
67751A
90467-07041-C0 Clip(For Steering Column Cover)[12.1986 - 12.1989] EP7# BROWN,SEPIA BROWN |
90467-07041-C0 |
from US $0.96 |
||
|
67751A
|
67751A
90467-07041-14 Clip(For Back Door Trim Board)[10.1984 - 12.1986] EP7# BLUE,BLUE |
90467-07041-14 |
US $1.89 |
||
| replacement | |||||
|
67751A
|
67751A
90467-07041-C0 Clip(For Steering Column Cover)[10.1984 - 12.1986] EP7# BLUE,BLUE |
90467-07041-C0 |
from US $0.96 |
||
|
67754A
|
67754A
67754-10040 Cover, Back Door Hole[10.1984 - 12.1989] EP7# |
67754-10040 |
US $11.36 |
||
|
67881A
|
67881A
67881-10060
Weatherstrip, Back Door
[10.1984 - 12.1989] EP7# |
67881-10060 |
— | ||
|
68131
|
68131
68105-10150 Glass, Back Door[10.1984 - 12.1989] EP7# *EHT,T=3.5,*EHT,T=3.5 |
68105-10150 |
US $658.11 |
||
| replacement | |||||
|
68131
|
68131
68105-10170 Glass, Back Door[10.1984 - 12.1989] EP7# *EHT,T=3.5,*EHT,T=3.5 |
68105-10170 |
US $736.74 |
||
|
68131
|
68131
68105-10170 Glass, Back Door[10.1984 - 12.1989] EP7# *EHTT,T=3.5,*EHTT,T=3.5 |
68105-10170 |
US $736.74 |
||
|
68131
|
68131
68131-10220 Glass, Back Door[10.1984 - 12.1989] EP7# *TEM,T=3.5,*TEM,T=3.5 |
68131-10220 |
US $448.45 |
||
| replacement | |||||
|
68131
|
68131
68105-10170 Glass, Back Door[10.1984 - 12.1989] EP7# *TEM,T=3.5,*TEM,T=3.5 |
68105-10170 |
US $736.74 |
||
|
68131
|
68131
68131-10270 Glass, Back DoorBACK DOOR [10.1984 - 12.1989] EP7# *TT,T=3.5,*TT,T=3.5 |
68131-10270 |
US $527.07 |
||
|
68291
|
68291
68291-10030 Weatherstrip, Back Door Glass[10.1984 - 12.1986] EP7# |
68291-10030 |
US $115.02 |
||
|
68291
|
68291
68291-10050 Weatherstrip, Back Door Glass[12.1986 - 12.1989] EP7# |
68291-10050 |
US $107.74 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9054111003
|
9054111003
90541-11003 Cushion(For Back Door Panel) |
90541-11003 |
US $4.08 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
