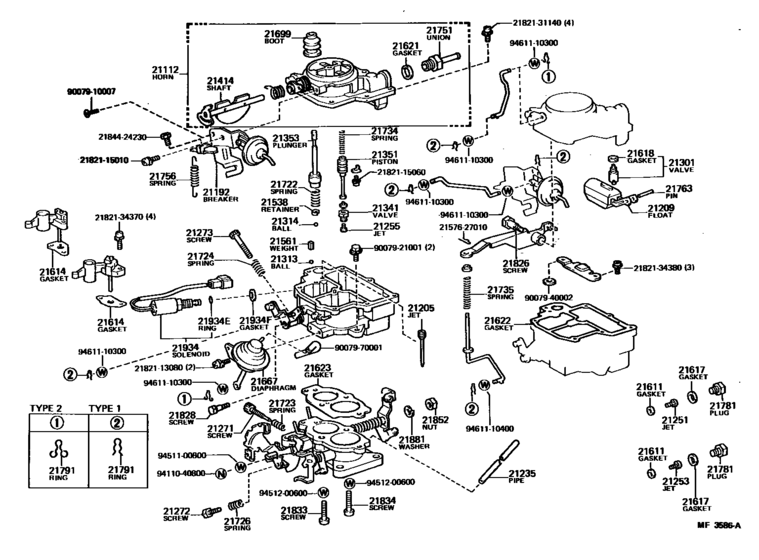

Carburetor ([10.1984 - ] (8410- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21112
|
21112
21112-10051 Horn, AirAIR [10.1984 - 12.1986] 1EL..EP70 |
21112-10051 |
US $270.82 |
||
|
21112
|
21112
21112-10090
Horn, Air
[12.1986 - 12.1989] 1EL..EP70 |
21112-10090 |
— | ||
|
21192
|
21192
21192-10050 Breaker[10.1984 - 12.1989] 1EL,2EL..EP7# |
21192-10050 |
US $107.74 |
||
| replacements | |||||
|
21192
|
21192
21192-13680
Breaker
[10.1984 - 12.1989] 1EL,2EL..EP7# |
21192-13680 |
— | ||
|
21192
|
21192
90079-10007 New Genuine Part[10.1984 - 12.1989] 1EL,2EL..EP7# |
90079-10007 |
US $1.60 |
||
|
21205
|
21205
21205-24510 Jet Sub-Assy, SlowSLOW [10.1984 - 12.1989] 1EL,2EL..EP7# |
21205-24510 |
US $13.40 |
||
|
21209
|
21209
21209-13310 Float Sub-Assy[10.1984 - 12.1989] 1EL,2EL..EP7# |
21209-13310 |
US $43.68 |
||
|
21235
|
21235
21235-10050 Pipe Or Hose, ConnectingCONNECTING [10.1984 - 12.1989] 1EL,2EL..EP7# |
21235-10050 |
US $5.82 |
||
| replacement | |||||
|
21235
|
21235
90079-71001
Pipe Or Hose, Connecting
[10.1984 - 12.1989] 1EL,2EL..EP7# |
90079-71001 |
— | ||
|
21251
|
21251
90999-41096 Jet, 1St Main1ST MAIN [10.1984 - 11.1985] 1EL..EP70 |
90999-41096 |
US $4.37 |
||
|
21251
|
21251
90999-41098 Jet, 1St Main[11.1985 - 12.1985] 1EL..EP70 |
90999-41098 |
US $6.99 |
||
|
21251
|
21251
90999-41102 Jet, 1St Main[12.1985 - 12.1986] 1EL..EP70 |
90999-41102 |
US $6.12 |
||
|
21253
|
21253
90999-42138 Jet, 2Nd Main2ND MAIN [12.1986 - 12.1989] 1EL..EP70 |
90999-42138 |
US $5.39 |
||
| replacement | |||||
|
21253
|
21253
90999-41138
Jet, 1St Main
[12.1986 - 12.1989] 1EL..EP70 |
90999-41138 |
— | ||
|
21253
|
21253
90999-42144
Jet, 2Nd Main
[11.1985 - 12.1986] 1EL..EP70 |
90999-42144 |
— | ||
| replacement | |||||
|
21253
|
21253
90999-41144
Jet, 1St Main
[11.1985 - 12.1986] 1EL..EP70 |
90999-41144 |
— | ||
|
21253
|
21253
90999-42153 Jet, 2Nd Main[10.1984 - 11.1985] 1EL,2EL..EP7# |
90999-42153 |
US $5.39 |
||
|
21255
|
21255
90999-43068 Jet, Power[10.1984 - 11.1985] 1EL,2EL..EP7# |
90999-43068 |
US $4.80 |
||
|
21255
|
21255
90999-43070 Jet, PowerPOWER [11.1985 - 12.1989] 1EL..EP70 |
90999-43070 |
US $4.95 |
||
|
21271
|
21271
21271-24100 Screw, Idle AdjustingIDLE ADJUSTING [10.1984 - 12.1989] 1EL,2EL..EP7# |
21271-24100 |
US $10.63 |
||
|
21272
|
21272
90079-13001 Screw, 1St Idle Adjusting[10.1984 - 12.1989] 1EL,2EL..EP7# |
90079-13001 |
US $1.60 |
||
|
21273
|
21273
21273-24231 Screw, Throttle Adjusting[10.1984 - 12.1989] 1EL,2EL..EP7# |
21273-24231 |
US $9.26 |
||
|
21301
|
21301
21301-13310 Valve Sub-Assy, Needle[10.1984 - 12.1989] 1EL,2EL..EP7# |
21301-13310 |
US $38.61 |
||
|
21313
|
21313
21313-11020 Ball, Steel, No.1(For Discharge Weight)[10.1984 - 12.1989] 1EL,2EL..EP7# |
21313-11020 |
US $3.67 |
||
|
21314
|
21314
21314-60010 Ball, Steel, No.2(For Pump Plunger)[10.1984 - 12.1989] 1EL,2EL..EP7# |
21314-60010 |
US $3.64 |
||
| replacement | |||||
|
21314
|
21314
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[10.1984 - 12.1989] 1EL,2EL..EP7# |
21314-11020 |
US $3.84 |
||
|
21341
|
21341
21304-30010
Valve, Power
[10.1984 - 12.1989] 1EL,2EL..EP7# |
21304-30010 |
— | ||
|
21351
|
21351
21351-33080
Piston, Power
[10.1984 - 12.1989] 1EL,2EL..EP7# |
21351-33080 |
— | ||
|
21353
|
21353
21305-22011
Plunger, Pump
[10.1984 - 08.1988] 1EL,2EL..EP7# |
21305-22011 |
— | ||
|
21414
|
21414
21054-10050 Shaft, ChokeCHOKE [10.1984 - 12.1989] 1EL,2EL..EP7# |
21054-10050 |
US $20.09 |
||
|
21538
|
21538
21538-31010 Retainer, Ball Check[10.1984 - 12.1989] 1EL,2EL..EP7# |
21538-31010 |
US $4.37 |
||
|
21561
|
21561
21561-22010
Weight, Pump Discharge
[10.1984 - 12.1989] 1EL,2EL..EP7# |
21561-22010 |
— | ||
|
21611
|
21611
21611-22010 Gasket, Main Jet[10.1984 - 12.1989] 1EL,2EL..EP7# |
21611-22010 |
US $3.32 |
||
|
21614
|
21614
21614-22010 Gasket, Venturi[10.1984 - 12.1989] 1EL,2EL..EP7# 1ST |
21614-22010 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21614-24580 Gasket, Venturi[10.1984 - 12.1989] 1EL,2EL..EP7# 1ST |
21614-24580 |
US $2.97 |
||
|
21614
|
21614
21614-24360 Gasket, Venturi[10.1984 - 12.1989] 1EL,2EL..EP7# 2ND |
21614-24360 |
US $3.64 |
||
| replacement | |||||
|
21614
|
21614
21614-13430 Gasket, Venturi[10.1984 - 12.1989] 1EL,2EL..EP7# 2ND |
21614-13430 |
US $2.87 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[10.1984 - 12.1989] 1EL,2EL..EP7# |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[10.1984 - 12.1989] 1EL,2EL..EP7# |
21618-14010 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[10.1984 - 12.1989] 1EL,2EL..EP7# |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-24360 Gasket, Air Horn[10.1984 - 12.1989] 1EL,2EL..EP7# |
21622-24360 |
US $10.05 |
||
| replacement | |||||
|
21622
|
21622
21622-13430 Gasket, Air Horn[10.1984 - 12.1989] 1EL,2EL..EP7# |
21622-13430 |
US $9.26 |
||
|
21623
|
21623
21623-13080
Gasket, Body Flange
[10.1984 - 12.1989] 1EL,2EL..EP7# |
21623-13080 |
— | ||
| replacement | |||||
|
21623
|
21623
21623-13430 Gasket, Body Flange[10.1984 - 12.1989] 1EL,2EL..EP7# |
21623-13430 |
US $5.68 |
||
|
21667
|
21667
21667-10050 Diaphragm[10.1984 - 11.1985] 1EL..EP70 |
21667-10050 |
US $24.46 |
||
|
21667
|
21667
21667-10090
Diaphragm
[12.1986 - 12.1989] 1EL..EP70 |
21667-10090 |
— | ||
|
21667
|
21667
21667-13010
Diaphragm
[11.1985 - 12.1986] 1EL..EP70 |
21667-13010 |
— | ||
| replacement | |||||
|
21667
|
21667
21667-13090
Diaphragm
[11.1985 - 12.1986] 1EL..EP70 |
21667-13090 |
— | ||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[10.1984 - 12.1989] 1EL,2EL..EP7# |
21699-28150 |
US $14.50 |
||
|
21722
|
21722
21722-22010 Spring, Pump Damping[10.1984 - 12.1989] 1EL,2EL..EP7# |
21722-22010 |
US $3.89 |
||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[10.1984 - 12.1989] 1EL,2EL..EP7# |
21723-21030 |
US $4.19 |
||
|
21724
|
21724
21864-24230 Spring, Throttle Adjusting[10.1984 - 12.1989] 1EL,2EL..EP7# |
21864-24230 |
US $10.13 |
||
|
21726
|
21726
21723-21030 Spring, Idle Adjusting[10.1984 - 12.1989] 1EL,2EL..EP7# |
21723-21030 |
US $4.19 |
||
|
21734
|
21734
21734-33081 Spring, Power Piston[10.1984 - 12.1989] 1EL,2EL..EP7# |
21734-33081 |
US $9.32 |
||
|
21735
|
21735
21735-22010
Spring, Pump Arm
[10.1984 - 12.1989] 1EL..EP70 |
21735-22010 |
— | ||
|
21751
|
21751
21751-10050 Union, Nipple[10.1984 - 12.1989] 1EL,2EL..EP7# |
21751-10050 |
US $9.90 |
||
|
21756
|
21756
21864-13080 Spring, Back(For Throttle Shaft)[10.1984 - 12.1989] 1EL..EP70 |
21864-13080 |
US $8.74 |
||
|
21763
|
21763
21763-38010 Pin, Float Lever[10.1984 - 12.1989] 1EL,2EL..EP7# |
21763-38010 |
US $3.93 |
||
|
21781
|
21781
21781-15230 Plug, Main Passage(For Carburetor Jet)[10.1984 - 12.1989] 1EL,2EL..EP7# |
21781-15230 |
US $5.82 |
||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[10.1984 - 12.1989] 1EL,2EL..EP7# TYPE 2 |
21791-13010 |
from US $1.76 |
||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[10.1984 - 12.1989] 1EL,2EL..EP7# TYPE 1 |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[10.1984 - 12.1989] 1EL,2EL..EP7# TYPE 1 |
21791-13010 |
from US $1.76 |
||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[10.1984 - 12.1989] 1EL,2EL..EP7# |
21826-31012 |
— | ||
|
21828
|
21828
21828-13310 Screw, 1St Idle Set1ST IDLE SET [10.1984 - 12.1989] 1EL,2EL..EP7# |
21828-13310 |
US $6.70 |
||
|
21833
|
21833
21835-40010
Screw, Set, No.1(For Carburetor Body Set)
[10.1984 - 12.1989] 1EL,2EL..EP7# |
21835-40010 |
— | ||
|
21834
|
21834
21834-31010 Screw, Set, No.1(For Carburetor Body Set)[10.1984 - 12.1989] 1EL,2EL..EP7# |
21834-31010 |
US $3.93 |
||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[10.1984 - 12.1989] 1EL,2EL..EP7# |
21852-30010 |
US $4.22 |
||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[10.1984 - 12.1989] 1EL,2EL..EP7# |
21881-60010 |
US $3.79 |
||
|
21934
|
21934
21062-11450 Solenoid, Throttle ValveTHROTTLE VALVE [08.1988 - 12.1989] 1EL,2EL..EP7# |
21062-11450 |
US $147.06 |
||
| replacement | |||||
|
21934
|
21934
21062-38011
Solenoid, Throttle Valve
[08.1988 - 12.1989] 1EL,2EL..EP7# |
21062-38011 |
— | ||
|
21934
|
21934
21062-13100 Solenoid, Throttle ValveTHROTTLE VALVE [10.1984 - 08.1988] 1EL,2EL..EP7# |
21062-13100 |
US $149.97 |
||
| replacement | |||||
|
21934
|
21934
21062-38011
Solenoid, Throttle Valve
[10.1984 - 08.1988] 1EL,2EL..EP7# |
21062-38011 |
— | ||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[10.1984 - 12.1989] 1EL,2EL..EP7# |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21649-38010 Gasket[10.1984 - 12.1989] 1EL,2EL..EP7# |
21649-38010 |
US $3.14 |
||
|
2157627010
|
2157627010
21576-27010
Clip, Pump Strainer
|
21576-27010 |
— | ||
|
2182113080
|
2182113080
21821-13080 Screw, 2nd Throttle Valve Set |
21821-13080 |
US $3.93 |
||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2182115060
|
2182115060
21821-15060 Screw, 2Nd Throttle Valve Set |
21821-15060 |
US $3.06 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2182134370
|
2182134370
21821-34370
Screw, 2nd Throttle Valve Set
|
21821-34370 |
— | ||
|
2182134380
|
2182134380
21821-34380
Screw, 2nd Throttle Valve Set
|
21821-34380 |
— | ||
|
2184424230
|
2184424230
21844-24230 Screw, Choke Lever |
21844-24230 |
US $4.08 |
||
|
9007910007
|
9007910007
90079-10007 New Genuine Part |
90079-10007 |
US $1.60 |
||
|
9007921001
|
9007921001
90079-21001 New Genuine Part |
90079-21001 |
US $1.46 |
||
|
9007940002
|
9007940002
90079-40002
New Genuine Part
|
90079-40002 |
— | ||
|
9007970001
|
9007970001
90079-70001 New Genuine Part |
90079-70001 |
US $1.46 |
||
| replacement | |||||
|
9007970001
|
9007970001
90079-70011 New Genuine Part |
90079-70011 |
US $6.26 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
