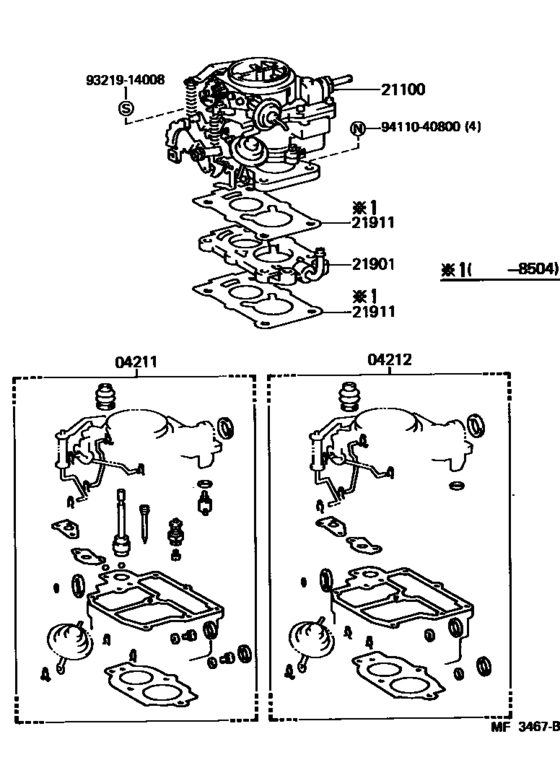

Carburetor Assembly ([10.1984 - ] (8410- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04211
|
04211
04211-10040 Carburetor Kit[10.1984 - 12.1985] 1EL..EP70 |
04211-10040 |
US $125.22 |
||
| replacement | |||||
|
04211
|
04211
04211-10043 Carburetor Kit[10.1984 - 12.1985] 1EL..EP70 |
04211-10043 |
US $125.22 |
||
|
04211
|
04211
04211-10041 Carburetor Kit[12.1985 - 12.1986] 1EL..EP70 |
04211-10041 |
US $123.76 |
||
| replacement | |||||
|
04211
|
04211
04211-10044 Carburetor Kit[12.1985 - 12.1986] 1EL..EP70 |
04211-10044 |
US $123.76 |
||
|
04211
|
04211
04211-10042 Carburetor Kit[12.1986 - 12.1989] 1EL..EP70 |
04211-10042 |
US $113.57 |
||
| replacement | |||||
|
04211
|
04211
04211-10045
Carburetor Kit
[12.1986 - 12.1989] 1EL..EP70 |
04211-10045 |
— | ||
|
04212
|
04212
04212-10020
Gasket Kit, Carburetor
[10.1984 - 12.1989] 1EL,2EL..EP7# |
04212-10020 |
— | ||
| replacement | |||||
|
04212
|
04212
04212-10031
Gasket Kit, Carburetor
[10.1984 - 12.1989] 1EL,2EL..EP7# |
04212-10031 |
— | ||
|
21100
|
21100
21100-10060 Carburetor Assy[10.1984 - 12.1985] 1EL..EP70 |
21100-10060 |
US $1,052.69 |
||
| replacement | |||||
|
21100
|
21100
21100-10062 Carburetor Assy[10.1984 - 12.1985] 1EL..EP70 |
21100-10062 |
US $1,058.51 |
||
|
21100
|
21100
21100-10061 Carburetor Assy[12.1985 - 12.1986] 1EL..EP70 |
21100-10061 |
US $1,052.69 |
||
| replacement | |||||
|
21100
|
21100
21100-10062 Carburetor Assy[12.1985 - 12.1986] 1EL..EP70 |
21100-10062 |
US $1,058.51 |
||
|
21100
|
21100
21100-10062 Carburetor Assy[12.1986 - 12.1989] 1EL..EP70 |
21100-10062 |
US $1,058.51 |
||
|
21901
|
21901
21901-10020
Insulator Sub-Assy, Carburetor Heat, No.1
[10.1984 - 04.1985] 1EL,2EL..EP7# |
21901-10020 |
— | ||
|
21901
|
21901
21901-10040
Insulator Sub-Assy, Carburetor Heat, No.1
[04.1985 - 12.1989] 1EL,2EL..EP7# |
21901-10040 |
— | ||
| replacement | |||||
|
21901
|
21901
21901-10041
Insulator Sub-Assy, Carburetor Heat, No.1
[04.1985 - 12.1989] 1EL,2EL..EP7# |
21901-10041 |
— | ||
|
21911
|
21911
21911-10020
Gasket, Carburetor
[10.1984 - 04.1985] 1EL,2EL..EP7# |
21911-10020 |
— | ||
| replacement | |||||
|
21911
|
21911
21911-10021
Gasket, Carburetor
[10.1984 - 04.1985] 1EL,2EL..EP7# |
21911-10021 |
— | ||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.08 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
