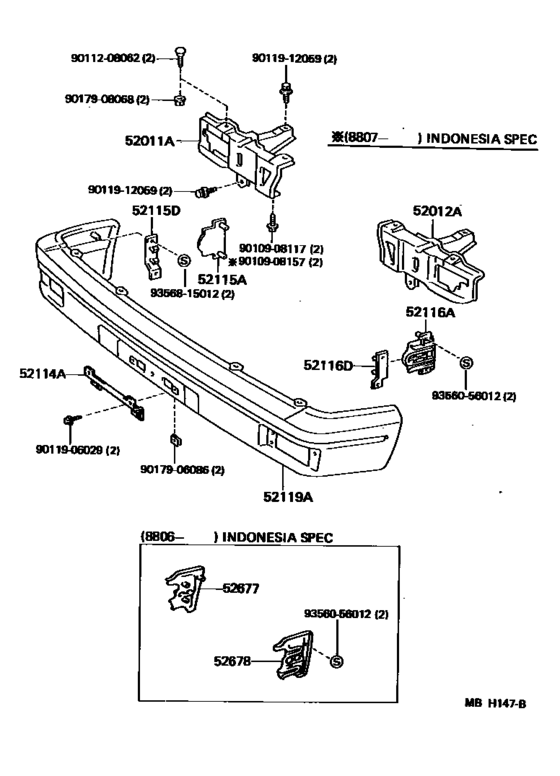

Front Bumper & Bumper Stay ([10.1984 - ] (8410- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52011A
|
52011A
52011-10090
Arm Sub-Assy, Front Bumper, Rh
[10.1984 - 12.1989] EP7# |
52011-10090 |
— | ||
|
52012A
|
52012A
52012-10090
Arm Sub-Assy, Front Bumper, Lh
[10.1984 - 12.1989] EP7# |
52012-10090 |
— | ||
|
52115A
|
52115A
52167-10020
Support, Front Bumper Side, Rh
[10.1984 - 12.1989] EP7# |
52167-10020 |
— | ||
|
52115D
|
52115D
52157-10020
Support, Front Bumper Side, No.2 Rh
[10.1984 - 12.1989] EP7# |
52157-10020 |
— | ||
|
52116A
|
52116A
52167-10020
Support, Front Bumper Side, Rh
[10.1984 - 12.1989] EP7# |
52167-10020 |
— | ||
|
52116D
|
52116D
52157-10020
Support, Front Bumper Side, No.2 Rh
[10.1984 - 12.1989] EP7# |
52157-10020 |
— | ||
|
52119A
|
52119A
52119-10060
Cover, Front Bumper
[10.1984 - 12.1989] EP7# |
52119-10060 |
— | ||
|
9010908117
|
9010908117
90109-08117 New Genuine Part |
90109-08117 |
US $2.62 |
||
|
9010908157
|
9010908157
90109-08157 New Genuine Part |
90109-08157 |
US $1.89 |
||
|
9011208062
|
9011208062
90112-08062 New Genuine Part |
90112-08062 |
US $2.33 |
||
|
9011906029
|
9011906029
90119-06029
New Genuine Part
|
90119-06029 |
— | ||
| replacement | |||||
|
9011906029
|
9011906029
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.28 |
||
|
9011912059
|
9011912059
90119-12059
New Genuine Part
|
90119-12059 |
— | ||
| replacement | |||||
|
9011912059
|
9011912059
90119-12104
New Genuine Part
|
90119-12104 |
— | ||
|
9017906086
|
9017906086
90179-06086 NUT |
90179-06086 |
from US $1.93 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9356056012
|
9356056012
93560-56012 Screw |
93560-56012 |
US $2.08 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
