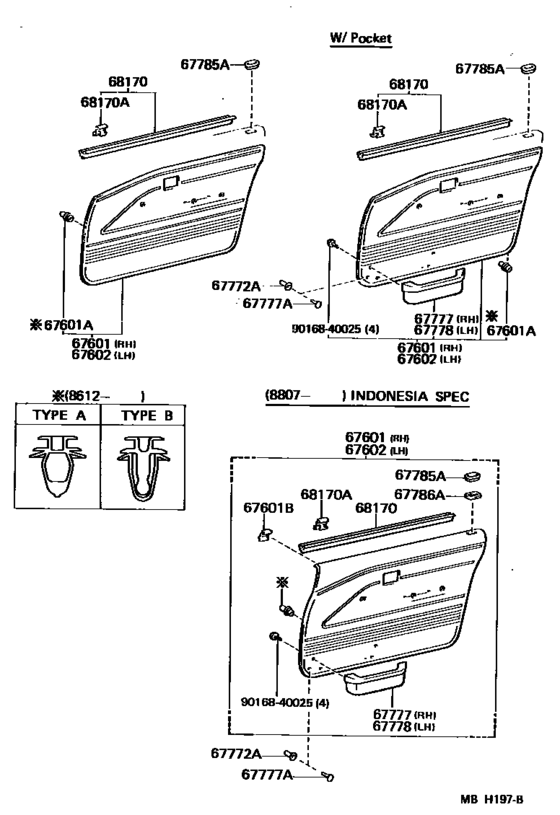

Front Door Panel & Glass ([10.1984 - ] (8410- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-10740-03 Board Sub-Assy, Front Door Trim, Rh[10.1984 - 01.1986] EP70,71..LHD..5D..XL GRAY,GRAY |
67610-10740-03 |
US $144.14 |
||
| replacement | |||||
|
67601
|
67601
67650-10100-03
Board Sub-Assy, Front Door Trim, Rh
[10.1984 - 01.1986] EP70,71..LHD..5D..XL GRAY,GRAY |
67650-10100-03 |
— | ||
|
67601
|
67601
67610-10740-04 Board Sub-Assy, Front Door Trim, Rh[10.1984 - 01.1986] EP70,71..LHD..5D..XL BLUE,BLUE |
67610-10740-04 |
US $144.14 |
||
| replacement | |||||
|
67601
|
67601
67650-10100-04
Board Sub-Assy, Front Door Trim, Rh
[10.1984 - 01.1986] EP70,71..LHD..5D..XL BLUE,BLUE |
67650-10100-04 |
— | ||
|
67601
|
67601
67650-10100-03
Board Sub-Assy, Front Door Trim, Rh
[01.1986 - 12.1986] EP70,71..LHD..5D..XL GRAY,GRAY |
67650-10100-03 |
— | ||
|
67601
|
67601
67650-10100-04
Board Sub-Assy, Front Door Trim, Rh
[01.1986 - 12.1986] EP70,71..LHD..5D..XL BLUE,BLUE |
67650-10100-04 |
— | ||
|
67601
|
67601
67650-10810-03
Board Sub-Assy, Front Door Trim, Rh
[12.1986 - 12.1989] EP70,71..5D..XL W/FB,POCKET,GRAY,GRAY |
67650-10810-03 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-1C100-03
Board Sub-Assy, Front Door Trim, Rh
[12.1986 - 12.1989] EP70,71..5D..XL W/FB,POCKET,GRAY,GRAY |
67610-1C100-03 |
— | ||
|
67601
|
67601
67650-10810-06
Board Sub-Assy, Front Door Trim, Rh
[12.1986 - 12.1989] EP70,71..5D..XL W/FB,POCKET,BROWN,BROWN |
67650-10810-06 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-1C100-06
Board Sub-Assy, Front Door Trim, Rh
[12.1986 - 12.1989] EP70,71..5D..XL W/FB,POCKET,BROWN,BROWN |
67610-1C100-06 |
— | ||
|
67601
|
67601
67650-10880-03
Board Sub-Assy, Front Door Trim, Rh
[12.1986 - 12.1989] EP70,71..LHD..5D..XL GRAY,GRAY |
67650-10880-03 |
— | ||
|
67601
|
67601
67650-10880-06
Board Sub-Assy, Front Door Trim, Rh
[12.1986 - 12.1989] EP70,71..LHD..5D..XL BROWN,BROWN |
67650-10880-06 |
— | ||
|
67601A
|
67601A
67771-16020 Retainer, Quarter Trim[10.1984 - 12.1986] EP7# |
67771-16020 |
US $2.24 |
||
|
67601A
|
67601A
67771-16080 Retainer (For Quarter Inside Trim Board)[12.1986 - 12.1989] EP7# TYPE A |
67771-16080 |
US $2.56 |
||
|
67601A
|
67601A
67771-22010 Retainer, Door Trim[12.1986 - 12.1989] EP70,71..5D TYPE B |
67771-22010 |
US $3.68 |
||
|
67602
|
67602
67620-10750-03 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [10.1984 - 01.1986] EP70,71..LHD..5D..XL GRAY,GRAY |
67620-10750-03 |
US $144.14 |
||
| replacement | |||||
|
67602
|
67602
67620-1C100-03
Board Sub-Assy, Front Door Trim, Lh
[10.1984 - 01.1986] EP70,71..LHD..5D..XL GRAY,GRAY |
67620-1C100-03 |
— | ||
|
67602
|
67602
67620-10750-04 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [10.1984 - 01.1986] EP70,71..LHD..5D..XL BLUE,BLUE |
67620-10750-04 |
US $144.14 |
||
| replacement | |||||
|
67602
|
67602
67620-1C100-04
Board Sub-Assy, Front Door Trim, Lh
[10.1984 - 01.1986] EP70,71..LHD..5D..XL BLUE,BLUE |
67620-1C100-04 |
— | ||
|
67602
|
67602
67620-1C100-03
Board Sub-Assy, Front Door Trim, Lh
[01.1986 - 12.1986] EP70,71..LHD..5D..XL GRAY,GRAY |
67620-1C100-03 |
— | ||
|
67602
|
67602
67620-1C100-04
Board Sub-Assy, Front Door Trim, Lh
[01.1986 - 12.1986] EP70,71..LHD..5D..XL BLUE,BLUE |
67620-1C100-04 |
— | ||
|
67602
|
67602
67620-1C670-03
Board Sub-Assy, Front Door Trim, Lh
[12.1986 - 12.1989] EP70,71..5D..XL W/FB,POCKET,GRAY,GRAY |
67620-1C670-03 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-1C840-03
Board Sub-Assy, Front Door Trim, Lh
[12.1986 - 12.1989] EP70,71..5D..XL W/FB,POCKET,GRAY,GRAY |
67620-1C840-03 |
— | ||
|
67602
|
67602
67620-1C670-06
Board Sub-Assy, Front Door Trim, Lh
[12.1986 - 12.1989] EP70,71..5D..XL W/FB,POCKET,BROWN,BROWN |
67620-1C670-06 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-1C840-06
Board Sub-Assy, Front Door Trim, Lh
[12.1986 - 12.1989] EP70,71..5D..XL W/FB,POCKET,BROWN,BROWN |
67620-1C840-06 |
— | ||
|
67602
|
67602
67620-1C720-03
Board Sub-Assy, Front Door Trim, Lh
[12.1986 - 12.1989] EP70,71..LHD..5D..XL GRAY,GRAY |
67620-1C720-03 |
— | ||
|
67602
|
67602
67620-1C720-06
Board Sub-Assy, Front Door Trim, Lh
[12.1986 - 12.1989] EP70,71..LHD..5D..XL BROWN,BROWN |
67620-1C720-06 |
— | ||
|
67772A
|
67772A
67772-20040
Cap, Front Door Trim Retainer
[10.1984 - 12.1986] EP70,71..XL |
67772-20040 |
— | ||
| replacement | |||||
|
67772A
|
67772A
67772-16020 Cap, Front Door Trim Retainer[10.1984 - 12.1986] EP70,71..XL |
67772-16020 |
US $2.72 |
||
|
67777
|
67777
67777-10020-03 Pocket, Front Door Trim, Rh[12.1986 - 12.1989] EP70,71..XL GRAY,GRAY; EP70..RHD..STD GRAY,GRAY |
67777-10020-03 |
US $43.83 |
||
|
67777
|
67777
67777-10020-06 Pocket, Front Door Trim, Rh[12.1986 - 12.1989] EP70,71..XL BROWN,BROWN; EP70..RHD..STD BROWN,BROWN |
67777-10020-06 |
US $43.83 |
||
|
67777A
|
67777A
90467-07043-03
Plug, Hole (For Center Pillar Garnish)
[10.1984 - 12.1986] EP70,71..XL GRAY,SHADOW GRAY |
90467-07043-03 |
— | ||
| replacement | |||||
|
67777A
|
67777A
90467-07043-C0 Clip(For Rear Bumper Retainer)[10.1984 - 12.1986] EP70,71..XL GRAY,SHADOW GRAY |
90467-07043-C0 |
from US $0.64 |
||
|
67777A
|
67777A
90467-07043-06 Clip (For Quarter Inside Trim Board)[12.1986 - 12.1989] EP70,71..XL BROWN,SEPIA BROWN |
90467-07043-06 |
US $1.60 |
||
| replacement | |||||
|
67777A
|
67777A
90467-07043-C0 Clip(For Rear Bumper Retainer)[12.1986 - 12.1989] EP70,71..XL BROWN,SEPIA BROWN |
90467-07043-C0 |
from US $0.64 |
||
|
67777A
|
67777A
90467-07043-14 Clip (For Quarter Inside Trim Board)[10.1984 - 12.1986] EP70,71..XL BLUE,BLUE |
90467-07043-14 |
US $1.60 |
||
| replacement | |||||
|
67777A
|
67777A
90467-07043-10 Clip(For Slide Door Trim Board)[10.1984 - 12.1986] EP70,71..XL BLUE,BLUE |
90467-07043-10 |
US $1.46 |
||
|
67778
|
67778
67777-10020-03 Pocket, Front Door Trim, Rh[12.1986 - 12.1989] EP70,71..XL GRAY,GRAY; EP70,76..LHD..(CS,STD) GRAY,GRAY |
67777-10020-03 |
US $43.83 |
||
|
67778
|
67778
67777-10020-06 Pocket, Front Door Trim, Rh[12.1986 - 12.1989] EP70,71..XL BROWN,BROWN; EP70,76..LHD..(CS,STD) BROWN,BROWN |
67777-10020-06 |
US $43.83 |
||
|
67778
|
67778
67778-22030-23
Pocket, Quarter Trim, No.2
[10.1984 - 12.1986] EP70,71..LHD..XL GRAY,SHADOW GRAY |
67778-22030-23 |
— | ||
| replacement | |||||
|
67778
|
67778
67778-22030-59
Pocket, Front Door Trim, Lh
[10.1984 - 12.1986] EP70,71..LHD..XL GRAY,SHADOW GRAY |
67778-22030-59 |
— | ||
|
67778
|
67778
67778-22030-34 Pocket, Front Door Trim, Lh[10.1984 - 12.1986] EP70,71..LHD..XL BLUE,BLUE |
67778-22030-34 |
US $63.92 |
||
| replacement | |||||
|
67778
|
67778
67778-22030-01 Pocket, Front Door Trim, Lh[10.1984 - 12.1986] EP70,71..LHD..XL BLUE,BLUE |
67778-22030-01 |
US $63.77 |
||
|
67785A
|
67785A
69751-12020-01 Holder, Door Locking Button Collar(For Front Door)[07.1988 - 12.1989] EP7# BLACK,BLACK |
69751-12020-01 |
US $3.64 |
||
| replacement | |||||
|
67785A
|
67785A
69751-20031-20 Holder, Door Locking(For Rear Door) BLACK[07.1988 - 12.1989] EP7# BLACK,BLACK |
69751-20031-20 |
US $4.54 |
||
|
67785A
|
67785A
69751-20031-01
Holder, Front Door Locking Button Collar
[10.1984 - 07.1988] EP7# BLACK,BLACK |
69751-20031-01 |
— | ||
| replacement | |||||
|
67785A
|
67785A
69751-20031-20 Holder, Door Locking(For Rear Door) BLACK[10.1984 - 07.1988] EP7# BLACK,BLACK |
69751-20031-20 |
US $4.54 |
||
|
68170
|
68170
68170-10140 Weatherstrip Assy, Front Door Glass, Inner[10.1984 - 12.1989] EP70,71..5D RH |
68170-10140 |
US $41.06 |
||
|
68170
|
68170
68220-10120 Weatherstrip Assy, Front Door Glass, Inner[10.1984 - 12.1989] EP70,71..5D LH |
68220-10120 |
US $41.06 |
||
|
68170A
|
68170A
68211-10030 Clip(For Front Door Glass Outer Weatherstrip)[10.1984 - 12.1989] EP70,71..5D |
68211-10030 |
from US $2.57 |
||
|
9016840025
|
9016840025
90168-40025 SCREW |
90168-40025 |
US $1.44 |
||
