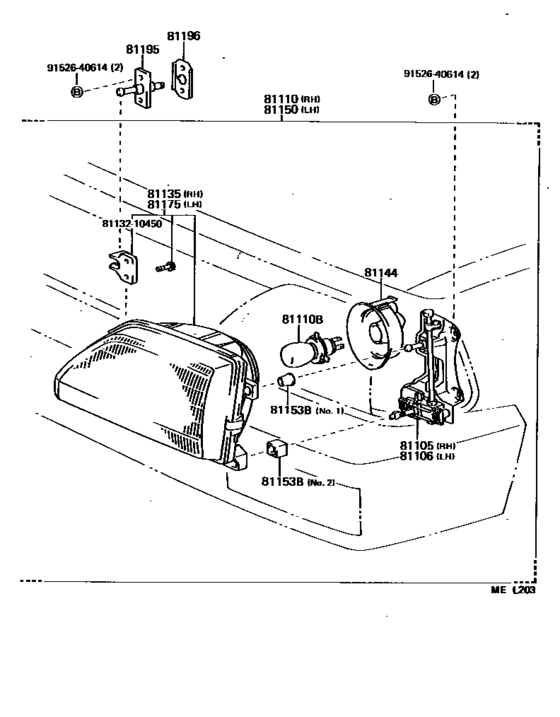

Headlamp ([07.1988 - ] INDONESIA SPEC (8807- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-80433 Headlamp Assy, RhRH [10.1984 - 12.1989] EP70,71..RHD WHITE; EP7#..LHD WHITE,LH DRIVE SPEC(*46) |
81110-80433 |
US $412.05 |
||
|
81110
|
81110
81110-80434 Headlamp Assy, RhRH [10.1984 - 12.1989] EP70,71..RHD *HAL WHITE; EP7#..LHD *HAL WHITE,LH DRIVE SPEC(*46) |
81110-80434 |
US $436.80 |
||
|
81110
|
81110
81110-80435
Headlamp Assy, Rh
[10.1984 - 12.1989] EP7#..LHD WHITE |
81110-80435 |
— | ||
|
81110
|
81110
81110-80436
Headlamp Assy, Rh
[10.1984 - 12.1989] EP7#..LHD *HAL WHITE |
81110-80436 |
— | ||
|
81110
|
81110
81110-80437 Headlamp Assy, RhRH [10.1984 - 12.1989] EP7#..LHD YELLOW |
81110-80437 |
US $449.90 |
||
| replacement | |||||
|
81110
|
81110
81110-80H00
Headlamp Assy, Rh
[10.1984 - 12.1989] EP7#..LHD YELLOW |
81110-80H00 |
— | ||
|
81110
|
81110
81110-80438 Headlamp Assy, RhRH [10.1984 - 12.1989] EP7#..LHD *HAL,YELLOW |
81110-80438 |
US $479.02 |
||
|
81110B
|
81110B
90981-13013 Bulb(For Headlamp, No.1)NO.1) [10.1984 - 12.1989] EP7# 12V 45/40W,WHITE,12V 45/40W,WHITE |
90981-13013 |
from US $16.85 |
||
|
81110B
|
81110B
90981-13014
Bulb(For Headlamp, No.1)
[10.1984 - 12.1989] EP7#..LHD 12V 45/40W,YELLOW,12V 45/40W,YELLOW |
90981-13014 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13H00
Bulb(For Headlamp, No.1)
[10.1984 - 12.1989] EP7#..LHD 12V 45/40W,YELLOW,12V 45/40W,YELLOW |
90981-13H00 |
— | ||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[10.1984 - 12.1989] EP7# 12V 60/55W,*HAL *WH,12V 60/55W,*HAL WHITE |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [10.1984 - 12.1989] EP7# 12V 60/55W,*HAL *WH,12V 60/55W,*HAL WHITE |
90981-13058 |
from US $30.40 |
||
|
81110B
|
81110B
90981-13016
Bulb(For Headlamp, No.1)
[10.1984 - 12.1989] EP7#..LHD 12V 60/55W,*HAL *YE,12V 60/55W,*HAL YELLOW |
90981-13016 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13H01 Bulb(For Headlamp, No.1)[10.1984 - 12.1989] EP7#..LHD 12V 60/55W,*HAL *YE,12V 60/55W,*HAL YELLOW |
90981-13H01 |
US $133.96 |
||
|
81135
|
81135
81135-10480 Unit Assy, Headlamp, RhHEADLAMP, RH [10.1984 - 12.1989] EP70,71..RHD WHITE; EP7#..LHD WHITE,LH DRIVE SPEC(*46) |
81135-10480 |
US $329.06 |
||
|
81135
|
81135
81135-10490 Unit Assy, Headlamp, RhHEADLAMP, RH [10.1984 - 12.1989] EP70,71..RHD *HAL WHITE; EP7#..LHD *HAL WHITE,LH DRIVE SPEC(*46) |
81135-10490 |
US $329.06 |
||
|
81135
|
81135
81135-10500
Unit Assy, Headlamp, Rh
[10.1984 - 12.1989] EP7#..LHD WHITE OR YELLOW |
81135-10500 |
— | ||
|
81135
|
81135
81135-10510
Unit Assy, Headlamp, Rh
[10.1984 - 12.1989] EP7#..LHD *HAL(WHITE OR YELLOW) |
81135-10510 |
— | ||
|
81144
|
81144
81139-10450
Cover, Headlamp, No.1
[10.1984 - 12.1989] EP7# |
81139-10450 |
— | ||
|
81150
|
81150
81150-80425 Headlamp Assy, LhLH [10.1984 - 12.1989] EP70,71..RHD WHITE; EP7#..LHD WHITE,LH DRIVE SPEC(*46) |
81150-80425 |
US $412.05 |
||
|
81150
|
81150
81150-80426 Headlamp Assy, LhLH [10.1984 - 12.1989] EP70,71..RHD *HAL WHITE; EP7#..LHD *HAL WHITE,LH DRIVE SPEC(*46) |
81150-80426 |
US $436.80 |
||
|
81150
|
81150
81150-80427
Headlamp Assy, Lh
[10.1984 - 12.1989] EP7#..LHD WHITE |
81150-80427 |
— | ||
|
81150
|
81150
81150-80428
Headlamp Assy, Lh
[10.1984 - 12.1989] EP7#..LHD *HAL WHITE |
81150-80428 |
— | ||
|
81150
|
81150
81150-80429 Headlamp Assy, LhLH [10.1984 - 12.1989] EP7#..LHD YELLOW |
81150-80429 |
US $449.90 |
||
| replacement | |||||
|
81150
|
81150
81150-80H00
Headlamp Assy, Lh
[10.1984 - 12.1989] EP7#..LHD YELLOW |
81150-80H00 |
— | ||
|
81150
|
81150
81150-80430 Headlamp Assy, LhLH [10.1984 - 12.1989] EP7#..LHD *HAL YELLOW |
81150-80430 |
US $479.02 |
||
|
81175
|
81175
81175-10480 Unit Assy, Headlamp, LhHEADLAMP, LH [10.1984 - 12.1989] EP70,71..RHD WHITE; EP7#..LHD WHITE,LH DRIVE SPEC(*46) |
81175-10480 |
US $329.06 |
||
|
81175
|
81175
81175-10490 Unit Assy, Headlamp, LhHEADLAMP, LH [10.1984 - 12.1989] EP70,71..RHD *HAL WHITE; EP7#..LHD *HAL WHITE,LH DRIVE SPEC(*46) |
81175-10490 |
US $329.06 |
||
|
81175
|
81175
81175-10500
Unit Assy, Headlamp, Lh
[10.1984 - 12.1989] EP7#..LHD WHITE OR YELLOW |
81175-10500 |
— | ||
|
81175
|
81175
81175-10510
Unit Assy, Headlamp, Lh
[10.1984 - 12.1989] EP7#..LHD *HAL(WHITE OR YELLOW) |
81175-10510 |
— | ||
|
81195
|
81195
81195-10010
Screw, Headlamp
[10.1984 - 12.1989] EP7# |
81195-10010 |
— | ||
|
81196
|
81196
81196-10010 Retainer, Headlamp[10.1984 - 12.1989] EP7# |
81196-10010 |
US $4.51 |
||
|
8113210450
|
8113210450
81132-10450
Nut, Headlamp Self Locking
|
81132-10450 |
— | ||
|
9152640614
|
9152640614
91526-40614 New Genuine Part |
91526-40614 |
US $1.75 |
||
| replacement | |||||
|
9152640614
|
9152640614
91521-40614
New Genuine Part
|
91521-40614 |
— | ||
