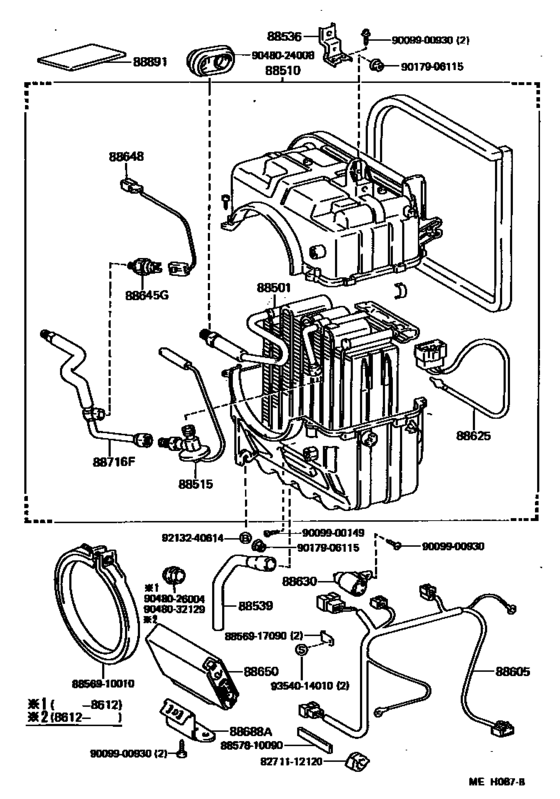

Heating & Air Conditioning - Cooler Unit ([10.1984 - ] DEALER OPTION (8410- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-10090
Evaporator Sub-Assy, Cooler, No.1
[10.1984 - 01.1986] EP7#..LHD |
88501-10090 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-10091
Evaporator Sub-Assy, Cooler, No.1
[10.1984 - 01.1986] EP7#..LHD |
88501-10091 |
— | ||
|
88501
|
88501
88501-10091
Evaporator Sub-Assy, Cooler, No.1
[01.1986 - 12.1989] EP7#..LHD |
88501-10091 |
— | ||
|
88510
|
88510
88510-10150
Unit Assy, Cooler
[10.1984 - 12.1989] EP7#..LHD MAKER OPTION,W/HEATER |
88510-10150 |
— | ||
| replacements | |||||
|
88510
|
88510
88510-10190
Unit Assy, Cooler
[10.1984 - 12.1989] EP7#..LHD MAKER OPTION,W/HEATER |
88510-10190 |
— | ||
|
88510
|
88510
88539-12080
Hose, Cooler Unit Drain, No.1
[10.1984 - 12.1989] EP7#..LHD MAKER OPTION,W/HEATER |
88539-12080 |
— | ||
|
88510
|
88510
88569-17090
Clamp (for Cooler Relay)
[10.1984 - 12.1989] EP7#..LHD MAKER OPTION,W/HEATER |
88569-17090 |
— | ||
|
88510
|
88510
88578-10090
Packing (For Cooler)
[10.1984 - 12.1989] EP7#..LHD MAKER OPTION,W/HEATER |
88578-10090 |
— | ||
|
88510
|
88510
88605-10230
Harness Sub-Assy, Cooler Wiring, No.1
[10.1984 - 12.1989] EP7#..LHD MAKER OPTION,W/HEATER |
88605-10230 |
— | ||
|
88510
|
88510
88630-10040
Relay Assy, Cooler
[10.1984 - 12.1989] EP7#..LHD MAKER OPTION,W/HEATER |
88630-10040 |
— | ||
|
88510
|
88510
88688-10060
Bracket, Cooler Stabilizer Amplifier
[10.1984 - 12.1989] EP7#..LHD MAKER OPTION,W/HEATER |
88688-10060 |
— | ||
|
88510
|
88510
88510-10170
Unit Assy, Cooler
[10.1984 - 12.1989] EP7#..LHD MAKER OPTION,W/*BV |
88510-10170 |
— | ||
|
88510
|
88510
88510-10190
Unit Assy, Cooler
[04.1985 - 12.1989] EP7#..LHD DEALER OPTION |
88510-10190 |
— | ||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[10.1984 - 12.1989] EP7# |
88515-16031 |
US $109.52 |
||
|
88539
|
88539
88539-10080
Hose, Cooler Unit Drain, No.1
[12.1986 - 12.1989] EP7# DEALER OPTION |
88539-10080 |
— | ||
|
88539
|
88539
88539-12080
Hose, Cooler Unit Drain, No.1
[10.1984 - 12.1986] EP7# |
88539-12080 |
— | ||
|
88605
|
88605
88605-10230
Harness Sub-Assy, Cooler Wiring, No.1
[10.1984 - 12.1989] EP7# W/HEATER |
88605-10230 |
— | ||
|
88605
|
88605
88605-10240
Harness Sub-Assy, Cooler Wiring, No.1
[10.1984 - 12.1989] EP7# W/BOOST VENTILATOR |
88605-10240 |
— | ||
|
88625
|
88625
88625-10020
Thermistor, Cooler, No.1
[10.1984 - 12.1989] EP7# |
88625-10020 |
— | ||
|
88630
|
88630
88630-10040
Relay Assy, Cooler
[10.1984 - 12.1989] EP7# |
88630-10040 |
— | ||
|
88645G
|
88645G
88645-10020
Switch, Pressure
[12.1984 - 12.1989] EP7# |
88645-10020 |
— | ||
|
88645G
|
88645G
88645-12020 Switch, Pressure[10.1984 - 12.1984] EP7# |
88645-12020 |
US $30.40 |
||
|
88648
|
88648
88648-10230
Wiring, Cooler, No.1
[04.1985 - 12.1989] EP7#..LHD DEALER OPTION |
88648-10230 |
— | ||
|
88650
|
88650
88650-10050
Amplifier Assy, Cooler Stabilizer
[10.1984 - 08.1985] EP7# W/HEATER |
88650-10050 |
— | ||
|
88650
|
88650
88650-10060
Amplifier Assy, Cooler Stabilizer
[10.1984 - 08.1985] EP7# W/*BV |
88650-10060 |
— | ||
|
88650
|
88650
88650-10140
Amplifier Assy, Cooler Stabilizer
[08.1985 - 12.1989] EP70 W/HEATER |
88650-10140 |
— | ||
|
88650
|
88650
88650-10150
Amplifier Assy, Cooler Stabilizer
[08.1985 - 12.1989] EP70 W/*BV |
88650-10150 |
— | ||
|
88688A
|
88688A
88688-10060
Bracket, Cooler Stabilizer Amplifier
[10.1984 - 12.1989] EP7# |
88688-10060 |
— | ||
|
88716F
|
88716F
88716-10430 Pipe, Cooler Refrigerant Liquid, FCOOLER REFRIGERANT LIQUID, F [04.1985 - 12.1989] EP7#..LHD DEALER OPTION |
88716-10430 |
US $48.78 |
||
|
88891
|
88891
88578-12160
Packing (For Cooler)
[10.1984 - 08.1988] EP7#..LHD DEALER OPTION |
88578-12160 |
— | ||
| replacement | |||||
|
88891
|
88891
88578-12170
Packing, Air Purifier, No.2
[10.1984 - 08.1988] EP7#..LHD DEALER OPTION |
88578-12170 |
— | ||
|
88891
|
88891
88578-12170
Packing, Air Purifier, No.2
[08.1988 - 12.1989] EP7#..LHD DEALER OPTION; EP70,71..LHD DEALER OPTION |
88578-12170 |
— | ||
|
8271112120
|
8271112120
82711-12120 Clamp(Rear Seat) |
82711-12120 |
US $3.04 |
||
|
8856910010
|
8856910010
88569-10010 Clamp (for Cooler Relay) |
88569-10010 |
US $16.16 |
||
|
8856917090
|
8856917090
88569-17090
Clamp (for Cooler Relay)
|
88569-17090 |
— | ||
|
8857810090
|
8857810090
88578-10090
Packing (For Cooler)
|
88578-10090 |
— | ||
|
9009900149
|
9009900149
90099-00149
New Genuine Part
|
90099-00149 |
— | ||
|
9009900930
|
9009900930
90099-00930
New Genuine Part
|
90099-00930 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9048024008
|
9048024008
90480-24008
Grommet (For Cooler Unit)
|
90480-24008 |
— | ||
| replacement | |||||
|
9048024008
|
9048024008
90099-32137 Grommet (For Cooler Unit) |
90099-32137 |
US $5.39 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.40 |
||
|
9048032129
|
9048032129
90480-32129
New Genuine Part
|
90480-32129 |
— | ||
|
9213240614
|
9213240614
92132-40614 Bolt, Stud(For Oil Pan) |
92132-40614 |
US $1.75 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
