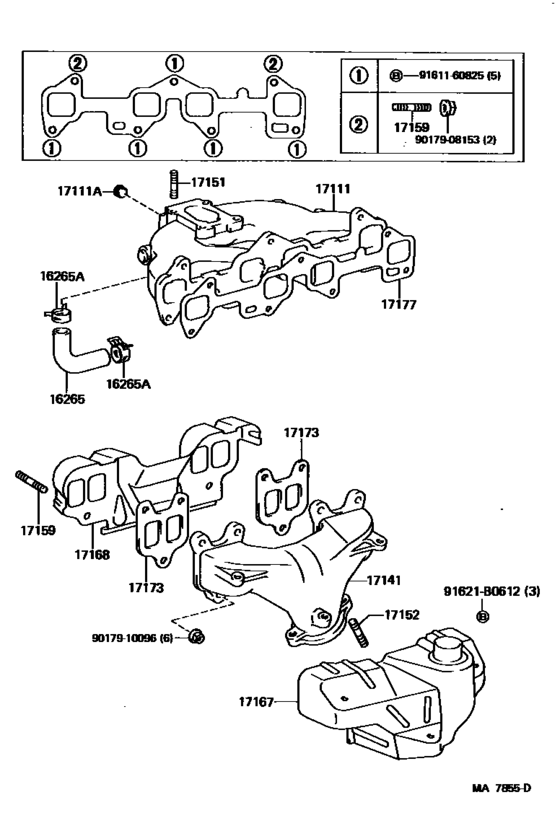

Manifold ([10.1984 - ] (8410- )1EL) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16265
|
16265
16265-11010 Hose, Intake Manifold Water[10.1984 - 12.1989] 1EL,2EL..EP7# |
16265-11010 |
US $9.09 |
||
|
16265A
|
16265A
90467-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.1984 - 12.1989] 1EL,2EL..EP7# |
90467-21001 |
US $2.77 |
||
| replacement | |||||
|
16265A
|
16265A
90467-21006 Clip(For Ventilation Hose No.2)[10.1984 - 12.1989] 1EL,2EL..EP7# |
90467-21006 |
US $2.56 |
||
|
17111
|
17111
17101-10060 Manifold, IntakeINTAKE [10.1984 - 12.1989] 1EL..EP70 |
17101-10060 |
US $238.78 |
||
|
17111A
|
17111A
90344-53015 Plug, W/head Taper Screw, No.1[10.1984 - 12.1989] 1EL,2EL..EP7# |
90344-53015 |
US $4.80 |
||
|
17141
|
17141
17141-10010
Manifold, Exhaust
[10.1984 - 12.1989] 1EL..EP70 |
17141-10010 |
— | ||
|
17151
|
17151
92122-40828
Bolt, Stud(For Timing Gear Cover)
[10.1984 - 12.1989] 1EL,2EL..EP7# |
92122-40828 |
— | ||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[10.1984 - 12.1989] 1EL,2EL..EP7# |
90116-10017 |
from US $2.92 |
||
|
17159
|
17159
92122-61028 Bolt, Stud(For Manifold To Cylinder Head)[10.1984 - 12.1989] 1EL,2EL..EP7# EXHAUST MANIFOLD |
92122-61028 |
US $5.28 |
||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[10.1984 - 12.1989] 1EL,2EL..EP7# INTAKE MANIFOLD |
92132-60825 |
US $3.20 |
||
|
17167
|
17167
17107-10010 Insulator, Exhaust Manifold Heat, No.1[10.1984 - 12.1989] 1EL..EP70 W/HOT AIR INTAKE |
17107-10010 |
US $63.92 |
||
| replacement | |||||
|
17167
|
17167
17107-10011
Insulator, Exhaust Manifold Heat, No.1
[10.1984 - 12.1989] 1EL..EP70 W/HOT AIR INTAKE |
17107-10011 |
— | ||
|
17167
|
17167
17167-10020
Insulator, Exhaust Manifold Heat, No.1
[10.1984 - 12.1989] 1EL..EP70 |
17167-10020 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-10022
Insulator, Exhaust Manifold Heat, No.1
[10.1984 - 12.1989] 1EL..EP70 |
17167-10022 |
— | ||
|
17168
|
17168
17168-10010 Insulator, Exhaust Manifold Heat, No.2[10.1984 - 05.1986] 1EL,2EL..EP7# |
17168-10010 |
US $44.99 |
||
| replacement | |||||
|
17168
|
17168
17168-10011 Insulator, Exhaust Manifold Heat, No.2[10.1984 - 05.1986] 1EL,2EL..EP7# |
17168-10011 |
US $43.51 |
||
|
17168
|
17168
17168-10011 Insulator, Exhaust Manifold Heat, No.2[05.1986 - 12.1989] 1EL,2EL..EP7# |
17168-10011 |
US $43.51 |
||
|
17173
|
17173
17173-10020
Gasket, Exhaust Manifold To Head
[10.1984 - 12.1989] 1EL,2EL..EP7# |
17173-10020 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-10021 Gasket, Exhaust Manifold To Head[10.1984 - 12.1989] 1EL,2EL..EP7# |
17173-10021 |
from US $8.95 |
||
|
17177
|
17177
17177-10010 Gasket, Intake Manifold To Head, No.1[10.1984 - 12.1989] 1EL,2EL..EP7# |
17177-10010 |
US $11.36 |
||
| replacement | |||||
|
17177
|
17177
17177-10020 Gasket, Intake Manifold To Head, No.1[10.1984 - 12.1989] 1EL,2EL..EP7# |
17177-10020 |
from US $10.86 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910096
|
9017910096
90179-10096 New Genuine Part |
90179-10096 |
US $2.56 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
