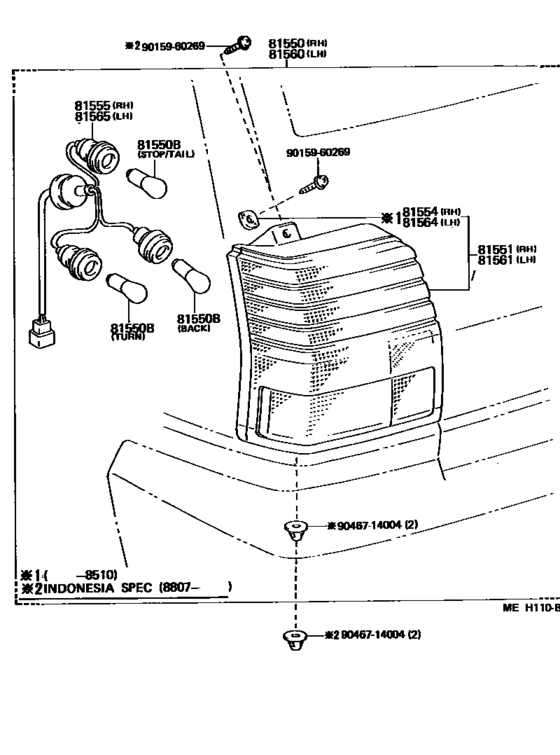

Rear Combination Lamp ([10.1984 - ] (8410- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-80244 Lamp Assy, Rear Combination, Rh[10.1985 - 12.1989] EP7# |
81550-80244 |
US $256.26 |
||
|
81550
|
81550
81550-80245 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [10.1984 - 10.1985] EP7# |
81550-80245 |
US $254.80 |
||
| replacement | |||||
|
81550
|
81550
81550-10251 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [10.1984 - 10.1985] EP7# |
81550-10251 |
US $254.80 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[10.1984 - 10.1985] EP7# 12V 21W,12V 21W(TURN & BACK) |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[10.1985 - 12.1989] EP7# 12V 23W,12V 23W(TURN & BACK) |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[10.1985 - 12.1989] EP7# 12V 23W,12V 23W(TURN & BACK) |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[10.1984 - 12.1989] EP7# 12V 21/5W,12V 21/5W(STOP/TAIL) |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-10240 Lens, Rear Combination Lamp, Rh[10.1985 - 12.1989] EP7# |
81551-10240 |
US $190.74 |
||
|
81551
|
81551
81551-10250 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [10.1984 - 10.1985] EP7# |
81551-10250 |
US $190.74 |
||
| replacement | |||||
|
81551
|
81551
81551-10251 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [10.1984 - 10.1985] EP7# |
81551-10251 |
US $190.74 |
||
|
81554
|
81554
81554-10250 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [10.1984 - 10.1985] EP7# |
81554-10250 |
US $14.56 |
||
|
81555
|
81555
81555-10240 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[10.1985 - 12.1989] EP7# |
81555-10240 |
US $27.96 |
||
|
81555
|
81555
81555-10250 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [10.1984 - 10.1985] EP7# |
81555-10250 |
US $27.96 |
||
| replacement | |||||
|
81555
|
81555
81565-10230 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [10.1984 - 10.1985] EP7# |
81565-10230 |
US $27.96 |
||
|
81560
|
81560
81560-80252 Lamp Assy, Rear Combination, Lh[10.1985 - 12.1989] EP7# |
81560-80252 |
US $256.26 |
||
|
81560
|
81560
81560-80253 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [10.1984 - 10.1985] EP7# |
81560-80253 |
US $254.80 |
||
| replacement | |||||
|
81560
|
81560
81560-10231 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [10.1984 - 10.1985] EP7# |
81560-10231 |
US $254.80 |
||
|
81561
|
81561
81561-10220 Lens, Rear Combination Lamp, Lh[10.1985 - 12.1989] EP7# |
81561-10220 |
US $190.74 |
||
|
81561
|
81561
81561-10230 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [10.1984 - 10.1985] EP7# |
81561-10230 |
US $190.74 |
||
| replacement | |||||
|
81561
|
81561
81561-10231 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [10.1984 - 10.1985] EP7# |
81561-10231 |
US $190.74 |
||
|
81564
|
81564
81554-10250 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [10.1984 - 10.1985] EP7# |
81554-10250 |
US $14.56 |
||
|
81565
|
81565
81555-10250 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [10.1984 - 10.1985] EP7# |
81555-10250 |
US $27.96 |
||
| replacement | |||||
|
81565
|
81565
81565-10230 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [10.1984 - 10.1985] EP7# |
81565-10230 |
US $27.96 |
||
|
81565
|
81565
81565-10220 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[10.1985 - 12.1989] EP7# |
81565-10220 |
US $33.92 |
||
|
9015960269
|
9015960269
90159-60269 New Genuine Part |
90159-60269 |
US $1.60 |
||
| replacement | |||||
|
9015960269
|
9015960269
90159-60359 New Genuine Part |
90159-60359 |
US $2.08 |
||
|
9046714004
|
9046714004
90467-14004 CLIP |
90467-14004 |
US $2.68 |
||
