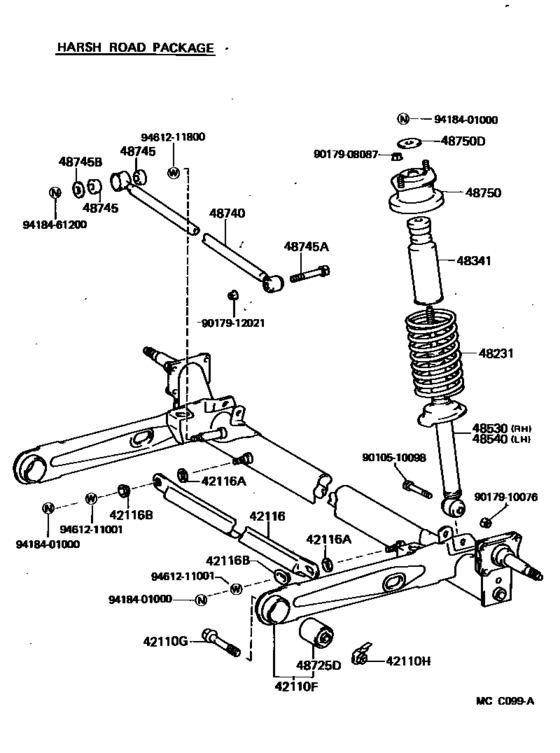

Rear Spring & Shock Absorber ([10.1984 - ] (8410- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42110F
|
42110F
42110-10030 Beam Assy, Rear Axle[10.1984 - 08.1986] EP7# |
42110-10030 |
US $812.45 |
||
| replacement | |||||
|
42110F
|
42110F
42110-10050 Beam Assy, Rear Axle[10.1984 - 08.1986] EP7# |
42110-10050 |
US $815.36 |
||
|
42110F
|
42110F
42110-10040 Beam Assy, Rear Axle[01.1985 - 08.1986] EP7# HARSH ROAD PACKAGE |
42110-10040 |
US $812.45 |
||
| replacement | |||||
|
42110F
|
42110F
42110-10060 Beam Assy, Rear Axle[01.1985 - 08.1986] EP7# HARSH ROAD PACKAGE |
42110-10060 |
US $815.36 |
||
|
42110F
|
42110F
42110-10050 Beam Assy, Rear Axle[08.1986 - 12.1989] EP7# |
42110-10050 |
US $815.36 |
||
|
42110F
|
42110F
42110-10060 Beam Assy, Rear Axle[08.1986 - 12.1989] EP7# HARSH ROAD PACKAGE |
42110-10060 |
US $815.36 |
||
|
42110G
|
42110G
90105-12088
Bolt (For Rear Axle Beam)
[10.1984 - 12.1989] EP7# |
90105-12088 |
— | ||
|
42110H
|
42110H
90179-12041
Nut (For Rear Axle Beam)
[10.1984 - 12.1989] EP7# |
90179-12041 |
— | ||
|
42116
|
42116
42116-10020 Cover, Rear Axle BeamREAR AXLE BEAM [01.1985 - 12.1989] EP7# HARSH ROAD PACKAGE |
42116-10020 |
US $122.30 |
||
|
42116A
|
42116A
90540-14004 Cushion, No.1 (For Rear Axle Beam Cover)NO.1 (FOR REAR AXLE BEAM COVER) [01.1985 - 12.1989] EP7# HARSH ROAD PACKAGE |
90540-14004 |
US $2.62 |
||
|
42116B
|
42116B
90540-14005 Cushion, No.2 (For Rear Axle Beam Cover)NO.2 (FOR REAR AXLE BEAM COVER) [01.1985 - 12.1989] EP7# HARSH ROAD PACKAGE,RH |
90540-14005 |
US $2.62 |
||
|
42116B
|
42116B
90540-14006 Cushion, No.2 (For Rear Axle Beam Cover)NO.2 (FOR REAR AXLE BEAM COVER) [01.1985 - 12.1989] EP7# HARSH ROAD PACKAGE,LH |
90540-14006 |
US $2.62 |
||
|
48231
|
48231
48231-10140 Spring, Coil, Rear[10.1984 - 12.1989] EP7# |
48231-10140 |
US $97.55 |
||
|
48231
|
48231
48231-10180 Spring, Coil, RearCOIL, REAR [10.1984 - 12.1989] EP7#..MTM HARSH ROAD PACKAGE |
48231-10180 |
US $104.83 |
||
|
48341
|
48341
48341-10070 Bumper, Rear Spring[10.1984 - 12.1989] EP7# |
48341-10070 |
US $42.81 |
||
|
48530
|
48530
48530-10010 Absorber Assy, Shock, Rear Rh[10.1984 - 12.1989] EP7# |
48530-10010 |
US $133.95 |
||
| replacement | |||||
|
48530
|
48530
48530-10020 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [10.1984 - 12.1989] EP7# |
48530-10020 |
US $133.95 |
||
|
48540
|
48540
48530-10010 Absorber Assy, Shock, Rear Rh[10.1984 - 12.1989] EP7# |
48530-10010 |
US $133.95 |
||
| replacement | |||||
|
48540
|
48540
48530-10020 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [10.1984 - 12.1989] EP7# |
48530-10020 |
US $133.95 |
||
|
48725D
|
48725D
48725-10010
Bush, Rear Suspension Arm, No.3
[10.1984 - 08.1986] EP7# |
48725-10010 |
— | ||
|
48725D
|
48725D
48725-16110
Bush, Rear Suspension Arm, No.3
[08.1986 - 12.1989] EP7# |
48725-16110 |
— | ||
|
48740
|
48740
48740-10010 Rod Assy, Rear Lateral Control[10.1984 - 12.1989] EP7# |
48740-10010 |
US $91.73 |
||
|
48745
|
48745
90385-18010
Bush, Lateral Control Rod
[10.1984 - 12.1989] EP7# |
90385-18010 |
— | ||
|
48745A
|
48745A
90105-12037
Bolt(For Rear Suspension Arm)
[10.1984 - 12.1989] EP7# |
90105-12037 |
— | ||
|
48745B
|
48745B
90201-12037 Washer, Plate, No.1(For Rear Lateral Control Rod)[10.1984 - 12.1989] EP7# |
90201-12037 |
US $4.96 |
||
|
48750
|
48750
48750-10010 Support Assy, Rear Suspension[10.1984 - 12.1989] EP7# |
48750-10010 |
US $82.99 |
||
|
48750D
|
48750D
90948-02082 Retainer, Cushion, No.1(For Rear Shock Absorber)[10.1984 - 12.1989] EP7# |
90948-02082 |
US $4.66 |
||
|
9010510098
|
9010510098
90105-10098 New Genuine Part |
90105-10098 |
US $3.64 |
||
|
9017908087
|
9017908087
90179-08087 Nut |
90179-08087 |
US $1.60 |
||
|
9017910076
|
9017910076
90179-10076 NUT |
90179-10076 |
US $2.62 |
||
|
9017912021
|
9017912021
90179-12021 NUT |
90179-12021 |
US $1.49 |
||
|
9418401000
|
9418401000
94184-01000 Nut |
94184-01000 |
from US $1.19 |
||
|
9418461200
|
9418461200
94184-61200 Nut, Lock(For Power Steering Control Valve) |
94184-61200 |
from US $1.13 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
|
9461211800
|
9461211800
94612-11800 Washer (For Shift & Select Lever Shaft) |
94612-11800 |
US $3.20 |
||
