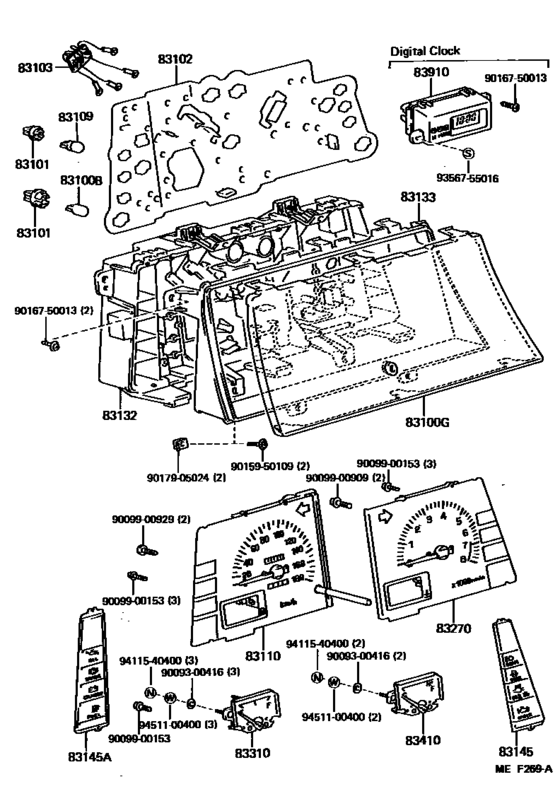

Meter ([10.1984 - 12.1986] W/TACHOMETER (8410-8612)) Diagram Toyota STARLET
- Year
- 1985 - 1989
- Sales region
- Europe
- Frame
- EP70
- grade
- XL
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- DESTINATION
- EUG
- From
- 08.1985
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[12.1986 - 12.1989] EP7#,NP70 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[10.1984 - 12.1989] EP7#,NP70 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[10.1984 - 12.1989] EP7#,NP70 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-10090
Glass, Combination Meter
[10.1984 - 12.1986] EP70..STD,XL |
83138-10090 |
— | ||
|
83100G
|
83100G
83138-10350
Glass, Combination Meter
[10.1984 - 12.1986] EP7#..DX,GL,XL W/ANALOGUE CLOCK |
83138-10350 |
— | ||
|
83100G
|
83100G
83138-10410
Glass, Combination Meter
[12.1986 - 12.1989] EP7#,NP70..GL,XL W/ANALOGUE CLOCK |
83138-10410 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[10.1984 - 12.1989] EP7#,NP70 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[10.1984 - 12.1989] EP7#,NP70 12V 1.4W |
83101-14040 |
US $2.98 |
||
|
83102
|
83102
83247-10710
Plate Sub-Assy, Combination Meter Circuit, No.1
[10.1984 - 12.1986] EP7#..RHD |
83247-10710 |
— | ||
|
83102
|
83102
83247-10850
Plate Sub-Assy, Combination Meter Circuit, No.1
[10.1984 - 12.1986] EP7#..RHD W/ANALOGUE CLOCK |
83247-10850 |
— | ||
|
83102
|
83102
83247-1C590
Plate Sub-Assy, Combination Meter Circuit, No.1
[12.1986 - 12.1989] EP7#..RHD W/ANALOGUE CLOCK |
83247-1C590 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-1C630
Plate Sub-Assy, Combination Meter Circuit, No.1
[12.1986 - 12.1989] EP7#..RHD W/ANALOGUE CLOCK |
83247-1C630 |
— | ||
|
83103
|
83103
83247-1C230
Plate Sub-Assy, Combination Meter Circuit, No.2
[10.1984 - 12.1986] EP7# |
83247-1C230 |
— | ||
|
83103
|
83103
83247-1C370
Plate Sub-Assy, Combination Meter Circuit, No.2
[12.1986 - 12.1989] EP7#; EP71..S W/ECONOMETER; EP71..XL..SDZ;EP71..LHD..(GL,XL)..EUG W/TACHOMETER & ECONOMETER; EP7#..LHD E/ECONOMETER |
83247-1C370 |
— | ||
|
83109
|
83109
83109-10010
Bulb, Combination Meter, No.1
[10.1984 - 12.1989] EP7# 12V 1.4W,ORANGE CAP |
83109-10010 |
— | ||
|
83109
|
83109
83109-24030 Bulb, Combination Meter, No.1[10.1984 - 12.1989] EP7#,NP70 12V 3.4W W(GREEN CAP) |
83109-24030 |
from US $3.14 |
||
|
83109
|
83109
83109-24040 Bulb, Combination Meter, No.1[10.1984 - 12.1989] EP7# 12V 1.4W W(GREEN CAP) |
83109-24040 |
US $2.36 |
||
|
83110
|
83110
83110-1C240
Speedometer Assy
[10.1984 - 12.1986] EP70..RHD..XL MILE/KM |
83110-1C240 |
— | ||
|
83110
|
83110
83110-1C250
Speedometer Assy
[10.1984 - 12.1986] EP7#..RHD MILE/KM,W/TRIP COUNTER |
83110-1C250 |
— | ||
|
83110
|
83110
83110-1C430
Speedometer Assy
[12.1986 - 12.1989] EP7#..RHD MILE |
83110-1C430 |
— | ||
| replacement | |||||
|
83110
|
83110
83110-1C440 Speedometer Assy[12.1986 - 12.1989] EP7#..RHD MILE |
83110-1C440 |
US $398.94 |
||
|
83132
|
83132
83132-10470
Case, Combination Meter
[10.1984 - 12.1986] EP7#..RHD |
83132-10470 |
— | ||
|
83132
|
83132
83132-10750
Case, Combination Meter
[12.1986 - 12.1989] EP7#..RHD W/ANALOGUE CLOCK & ECONOMETER |
83132-10750 |
— | ||
|
83133
|
83133
83133-10630
Plate, Combination Meter, No.1
[10.1984 - 12.1986] EP7#..DX,GL,XL W/ANALOGUE CLOCK |
83133-10630 |
— | ||
|
83133
|
83133
83133-10650
Plate, Combination Meter, No.1
[10.1984 - 12.1986] EP70..STD,XL |
83133-10650 |
— | ||
|
83133
|
83133
83133-10750
Plate, Combination Meter, No.1
[12.1986 - 12.1989] EP7#,NP70..GL,XL W/ANALOGUE CLOCK |
83133-10750 |
— | ||
|
83310
|
83310
83243-10230 Gage Assy, Fuel Receiver[10.1984 - 12.1986] EP7# |
83243-10230 |
US $39.17 |
||
|
83310
|
83310
83243-10290 Gage Assy, Fuel ReceiverFUEL RECEIVER [12.1986 - 12.1989] EP71..XL..SDZ;EP7#..(GL,STD,XL)..(EUG,FRG) W/ECONOMETER |
83243-10290 |
US $91.73 |
||
|
83410
|
83410
83244-10150 Gage Assy, Water Temperature Receiver[10.1984 - 12.1986] EP7# |
83244-10150 |
US $39.17 |
||
|
83910
|
83910
83910-10130 Clock Assy[10.1984 - 12.1986] EP7#..DX,GL,XL ANALOGUE |
83910-10130 |
US $321.78 |
||
|
83910
|
83910
83910-10160 Clock Assy[12.1986 - 12.1989] EP7#,NP70..GL,XL ANALOGUE |
83910-10160 |
US $313.04 |
||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900153
|
9009900153
90099-00153
New Genuine Part
|
90099-00153 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9016750013
|
9016750013
90167-50013
New Genuine Part
|
90167-50013 |
— | ||
| replacement | |||||
|
9016750013
|
9016750013
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9017905024
|
9017905024
90179-05024 New Genuine Part |
90179-05024 |
US $2.33 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
