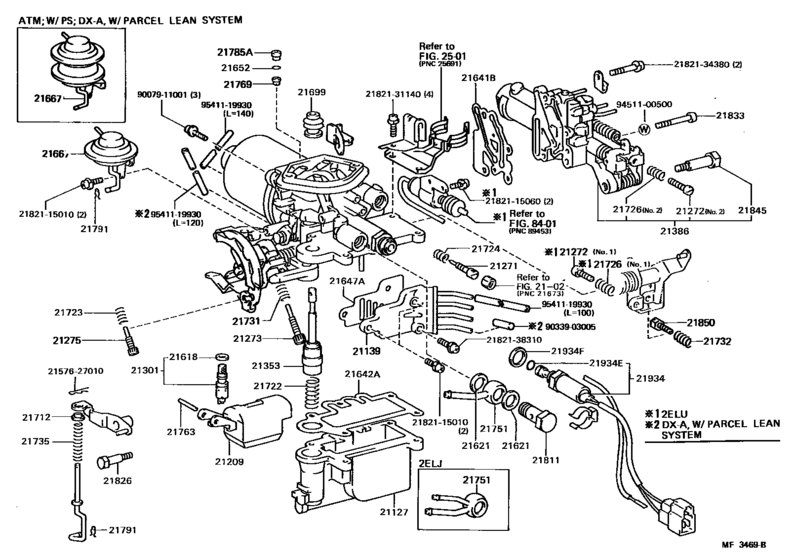

Carburetor ([10.1984 - 02.1985] (8410-8502)2EL#) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- Japan
- Frame
- EP71
- grade
- DX
- body
- SED
- ENGINE
- 2ELU
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21127
|
21127
21127-11090 Bowl, Float[10.1984 - 11.1987] 2EL#..EP7# |
21127-11090 |
US $164.53 |
||
| replacement | |||||
|
21127
|
21127
21127-11150 Bowl, FloatFLOAT [10.1984 - 11.1987] 2EL#..EP7# |
21127-11150 |
US $158.70 |
||
|
21127
|
21127
21127-11230 Bowl, Float[11.1987 - 12.1989] 2ELU..EP71 |
21127-11230 |
US $158.70 |
||
|
21139
|
21139
21139-11090 Adapter(For Carburetor Connecting Pipe)[10.1984 - 12.1989] 2EL#..EP7# |
21139-11090 |
US $57.51 |
||
|
21209
|
21209
21209-11090 Float Sub-Assy[10.1984 - 12.1989] 2EL#..EP7# |
21209-11090 |
US $32.03 |
||
|
21271
|
21271
21271-11090 Screw, Idle Adjusting[10.1984 - 11.1987] 2EL#..EP7# |
21271-11090 |
US $5.97 |
||
|
21272
|
21272
21276-11090 Screw, 1St Idle Adjusting[10.1984 - 12.1989] 2ELU..EP71 NO.1 |
21276-11090 |
US $4.08 |
||
|
21272
|
21272
21828-11180 Screw, 1St Idle Adjusting[10.1984 - 02.1985] 2EL#..EP7# NO.2 |
21828-11180 |
US $3.79 |
||
|
21273
|
21273
21273-11090 Screw, Throttle Adjusting[10.1984 - 12.1989] 2EL#..EP7# |
21273-11090 |
US $6.12 |
||
|
21275
|
21275
21273-60151
Screw, Throttle Adjusting
[10.1984 - 05.1986] 2EL#..EP7# |
21273-60151 |
— | ||
|
21275
|
21275
21844-33010
Screw, 1St Idle Adjusting
[05.1986 - 12.1989] 2EL#..EP7# |
21844-33010 |
— | ||
|
21301
|
21301
21301-15250 Valve Sub-Assy, Needle[10.1984 - 12.1989] 2EL#..EP7# |
21301-15250 |
US $38.29 |
||
| replacement | |||||
|
21301
|
21301
21301-11140
Valve Sub-Assy, Needle
[10.1984 - 12.1989] 2EL#..EP7# |
21301-11140 |
— | ||
|
21353
|
21353
21353-11090 Plunger, Pump[10.1984 - 05.1986] 2EL#..EP7# |
21353-11090 |
US $48.78 |
||
|
21353
|
21353
21353-11230 Plunger, Pump[05.1986 - 11.1987] 2ELU..EP71 |
21353-11230 |
US $48.63 |
||
|
21353
|
21353
21353-11231 Plunger, Pump[11.1987 - 12.1989] 2ELU..EP71 |
21353-11231 |
US $48.78 |
||
|
21386
|
21386
21386-11090 Compensator[10.1984 - 12.1986] 2ELU..EP71..MTM |
21386-11090 |
US $502.32 |
||
|
21386
|
21386
21386-11100 Compensator[12.1986 - 11.1987] 2ELU..EP71..MTM |
21386-11100 |
US $502.32 |
||
|
21386
|
21386
21386-11301 Compensator[11.1987 - 12.1989] 2ELU..EP71 |
21386-11301 |
US $505.23 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[10.1984 - 12.1989] 2EL#..EP7# |
21618-14010 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[10.1984 - 12.1989] 2EL#..EP7# |
21633-24030 |
US $4.89 |
||
|
21641B
|
21641B
21641-11090
Gasket, Compensator
[10.1984 - 11.1987] 2EL#..EP7# |
21641-11090 |
— | ||
| replacement | |||||
|
21641B
|
21641B
21641-11140
Gasket, Compensator
[10.1984 - 11.1987] 2EL#..EP7# |
21641-11140 |
— | ||
|
21641B
|
21641B
21641-11340
Gasket, Compensator
[11.1987 - 12.1989] 2ELU..EP71 |
21641-11340 |
— | ||
|
21642A
|
21642A
21642-11090
Gasket, Float Bowl
[10.1984 - 11.1987] 2EL#..EP7# |
21642-11090 |
— | ||
| replacement | |||||
|
21642A
|
21642A
21642-11140
Gasket, Float Bowl
[10.1984 - 11.1987] 2EL#..EP7# |
21642-11140 |
— | ||
|
21642A
|
21642A
21642-15390 Gasket, Float Bowl[11.1987 - 12.1989] 2ELU..EP71 |
21642-15390 |
US $9.03 |
||
| replacement | |||||
|
21642A
|
21642A
21642-11590 Gasket, Float BowlFLOAT BOWL [11.1987 - 12.1989] 2ELU..EP71 |
21642-11590 |
US $8.74 |
||
|
21647A
|
21647A
21647-11090 Gasket, Adapter[10.1984 - 12.1989] 2EL#..EP7# |
21647-11090 |
US $9.03 |
||
| replacement | |||||
|
21647A
|
21647A
21647-11590 Gasket, AdapterADAPTER [10.1984 - 12.1989] 2EL#..EP7# |
21647-11590 |
US $8.74 |
||
|
21652
|
21652
21652-15250 Ring, O(For Suction Chanber Adjusting)[10.1984 - 12.1989] 2EL#..EP7# |
21652-15250 |
US $6.70 |
||
|
21667
|
21667
21667-11090 Diaphragm[10.1984 - 12.1986] 2EL#..EP7# |
21667-11090 |
US $36.84 |
||
|
21667
|
21667
21679-11100 Diaphragm[10.1984 - 12.1989] 2ELU..EP71..DX,SE,XL W/POWER STEERING |
21679-11100 |
US $145.60 |
||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[10.1984 - 12.1989] 2EL#..EP7# |
21699-28150 |
US $14.50 |
||
|
21712
|
21712
21712-38010 Bush, Sliding Rod[10.1984 - 12.1989] 2EL#..EP7# |
21712-38010 |
US $4.37 |
||
| replacement | |||||
|
21712
|
21712
21712-61020 Bush, Sliding Rod[10.1984 - 12.1989] 2EL#..EP7# |
21712-61020 |
US $4.89 |
||
|
21722
|
21722
21722-22010 Spring, Pump Damping[10.1984 - 12.1989] 2EL#..EP7# |
21722-22010 |
US $3.89 |
||
|
21723
|
21723
21724-11340 Spring, Idle Adjusting[11.1987 - 12.1989] 2ELU..EP71 |
21724-11340 |
US $4.95 |
||
|
21723
|
21723
21724-51011 Spring, Idle Adjusting[10.1984 - 11.1987] 2EL#..EP7# |
21724-51011 |
US $4.37 |
||
|
21724
|
21724
21723-38010 Spring, Idle Adjusting[10.1984 - 12.1989] 2EL#..EP7# |
21723-38010 |
US $4.22 |
||
|
21726
|
21726
21723-38010 Spring, Idle Adjusting[10.1984 - 02.1985] 2EL#..EP7# NO.2 |
21723-38010 |
US $4.22 |
||
|
21726
|
21726
21723-60010
Spring, Idle Adjusting
[10.1984 - 12.1989] 2ELU..EP71 NO.1 |
21723-60010 |
— | ||
|
21731
|
21731
21723-21030 Spring, Idle Adjusting[10.1984 - 12.1989] 2EL#..EP7# |
21723-21030 |
US $4.19 |
||
|
21732
|
21732
21726-15251 Spring, 1St Idle Adjusting[10.1984 - 12.1989] 2EL#..EP7# |
21726-15251 |
US $6.12 |
||
|
21735
|
21735
21735-11150 Spring, Pump Arm[08.1986 - 12.1989] 2ELU..EP71 |
21735-11150 |
US $4.95 |
||
|
21735
|
21735
21735-15250 Spring, Pump Arm[10.1984 - 05.1986] 2EL#..EP7# |
21735-15250 |
US $9.76 |
||
|
21735
|
21735
21735-21032 Spring, Pump Arm[05.1986 - 08.1986] 2ELU..EP71 |
21735-21032 |
US $4.51 |
||
|
21751
|
21751
21894-11090 Union, Nipple[10.1984 - 06.1987] 2ELU..EP71 |
21894-11090 |
US $10.05 |
||
|
21751
|
21751
21894-11230 Union, Nipple[06.1987 - 04.1988] 2ELU..EP71 |
21894-11230 |
US $10.05 |
||
|
21751
|
21751
21894-11590 Union, Nipple[04.1988 - 12.1989] 2ELU..EP71 |
21894-11590 |
US $10.05 |
||
| replacement | |||||
|
21751
|
21751
21894-11230 Union, Nipple[04.1988 - 12.1989] 2ELU..EP71 |
21894-11230 |
US $10.05 |
||
|
21763
|
21763
21763-38010 Pin, Float Lever[10.1984 - 12.1989] 2EL#..EP7# |
21763-38010 |
US $3.93 |
||
|
21769
|
21769
21769-15250 Pin(For Suction Chanber Adjusting)[10.1984 - 12.1989] 2EL#..EP7# |
21769-15250 |
US $9.17 |
||
|
21785A
|
21785A
21672-15250 Plug, Plate(For Suction Chanber Adjusting)[02.1985 - 04.1988] 2EL#..EP7# NO.2 |
21672-15250 |
US $3.93 |
||
|
21785A
|
21785A
21785-11090 Plug, Plate(For Suction Chanber Adjusting)[10.1984 - 02.1985] 2EL#..EP7# |
21785-11090 |
US $4.51 |
||
|
21785A
|
21785A
21785-13210 Plug, Plate(For Suction Chanber Adjusting)[04.1988 - 12.1989] 2EL#..EP7# NO.2 |
21785-13210 |
US $6.41 |
||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[10.1984 - 12.1989] 2EL#..EP7# |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[10.1984 - 12.1989] 2EL#..EP7# |
21791-13010 |
from US $1.54 |
||
|
21811
|
21811
21811-11060 Bolt, Union Nipple[10.1984 - 12.1989] 2EL#..EP7# |
21811-11060 |
US $9.46 |
||
|
21826
|
21826
21826-24470
Screw, Pump Arm Set
[10.1984 - 12.1989] 2EL#..EP7# |
21826-24470 |
— | ||
|
21833
|
21833
21833-31012 Screw, Set, No.1(For Carburetor Body Set)[10.1984 - 12.1989] 2EL#..EP7# |
21833-31012 |
US $4.08 |
||
|
21845
|
21845
21273-38010 Screw, Throttle Adjusting[10.1984 - 02.1985] 2EL#..EP7# |
21273-38010 |
US $3.64 |
||
|
21850
|
21850
21272-11090 Screw, Throttle Switch Adjusting[10.1984 - 11.1987] 2EL#..EP7# |
21272-11090 |
US $4.08 |
||
| replacement | |||||
|
21850
|
21850
21272-11230 Screw, Throttle Switch Adjusting[10.1984 - 11.1987] 2EL#..EP7# |
21272-11230 |
US $3.06 |
||
|
21850
|
21850
21272-11230 Screw, Throttle Switch Adjusting[11.1987 - 12.1989] 2ELU..EP71 |
21272-11230 |
US $3.06 |
||
|
21934
|
21934
21062-11090 Solenoid, Throttle Valve[10.1984 - 12.1986] 2ELU..EP71..MTM |
21062-11090 |
US $149.97 |
||
| replacement | |||||
|
21934
|
21934
21062-11092 Solenoid, Throttle Valve[10.1984 - 12.1986] 2ELU..EP71..MTM |
21062-11092 |
US $147.06 |
||
|
21934
|
21934
21062-11091 Solenoid, Throttle Valve[08.1988 - 04.1989] 2ELU..EP71..MTM |
21062-11091 |
US $149.97 |
||
| replacement | |||||
|
21934
|
21934
21062-11093 Solenoid, Throttle Valve[08.1988 - 04.1989] 2ELU..EP71..MTM |
21062-11093 |
US $149.97 |
||
|
21934
|
21934
21062-11093 Solenoid, Throttle Valve[04.1989 - 12.1989] 2ELU..EP71..MTM |
21062-11093 |
US $149.97 |
||
|
21934
|
21934
21062-11100 Solenoid, Throttle Valve[12.1986 - 11.1987] 2ELU..EP71..MTM |
21062-11100 |
US $147.06 |
||
| replacement | |||||
|
21934
|
21934
21062-11101 Solenoid, Throttle Valve[12.1986 - 11.1987] 2ELU..EP71..MTM |
21062-11101 |
US $149.97 |
||
|
21934
|
21934
21062-11530 Solenoid, Throttle Valve[11.1987 - 08.1988] 2ELU..EP71..MTM |
21062-11530 |
US $149.97 |
||
| replacement | |||||
|
21934
|
21934
21062-11093 Solenoid, Throttle Valve[11.1987 - 08.1988] 2ELU..EP71..MTM |
21062-11093 |
US $149.97 |
||
|
21934E
|
21934E
21656-15250 Ring, O(For Solenoid Valve)[10.1984 - 12.1989] 2EL#..EP7# |
21656-15250 |
US $10.05 |
||
|
21934F
|
21934F
21633-15250 Gasket[10.1984 - 12.1989] 2EL#..EP7# |
21633-15250 |
US $4.08 |
||
|
2157627010
|
2157627010
21576-27010
Clip, Pump Strainer
|
21576-27010 |
— | ||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2182115060
|
2182115060
21821-15060 Screw, 2Nd Throttle Valve Set |
21821-15060 |
US $3.06 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2182134380
|
2182134380
21821-34380
Screw, 2nd Throttle Valve Set
|
21821-34380 |
— | ||
|
2182138310
|
2182138310
21821-38310 Screw, 2Nd Throttle Valve Set |
21821-38310 |
from US $1.42 |
||
|
9007911001
|
9007911001
90079-11001 SCREW |
90079-11001 |
US $1.92 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
US $1.76 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
