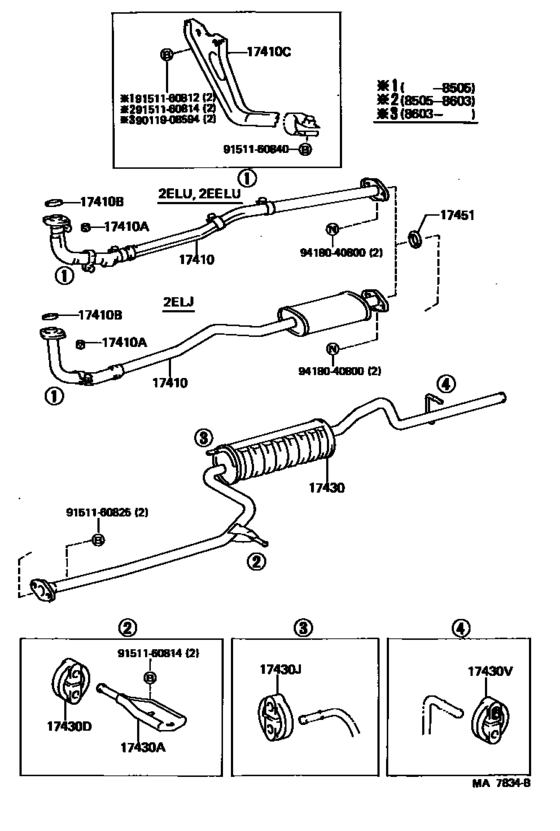

Exhaust Pipe ([10.1984 - ] (8410- )2EELU,2EL#) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- Japan
- Frame
- EP71
- grade
- DX
- body
- SED
- ENGINE
- 2ELU
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-11100 Pipe Assy, Exhaust, Front[10.1984 - 12.1989] 2ELU..EP71 |
17410-11100 |
US $160.16 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[10.1984 - 12.1986] 2E#..EP7# |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[10.1984 - 12.1986] 2E#..EP7# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[10.1984 - 12.1986] 2EELU,2EL#..EP7# |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[10.1984 - 12.1986] 2EELU,2EL#..EP7# |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17571-11020 Bracket, Exhaust Pipe Front (For Front)[10.1984 - 06.1986] 2EELU,2EL#..EP7# |
17571-11020 |
US $15.87 |
||
|
17430
|
17430
17430-11010 Pipe Assy, Exhaust, Tail[10.1984 - 12.1989] 2ELU..EP71 |
17430-11010 |
US $382.93 |
||
|
17430
|
17430
17430-11290 Pipe Assy, Exhaust, Tail[07.1987 - 12.1989] 2ELU..EP71 COLD SPEC |
17430-11290 |
US $384.38 |
||
|
17430A
|
17430A
17572-11020 Bracket, Exhaust Tail Pipe(For Front)[10.1984 - 12.1986] 2E#..EP7# |
17572-11020 |
US $7.72 |
||
|
17430D
|
17430D
17565-11010 Bolt Or Ring, Exhaust Pipe Front (For Center)[10.1984 - 12.1986] 2E#..EP7# |
17565-11010 |
US $17.33 |
||
|
17430J
|
17430J
17565-11030 Bolt Or Ring, Exhaust Tail Pipe(For Center)[10.1984 - 12.1986] 2E#..EP7# |
17565-11030 |
US $10.77 |
||
| replacement | |||||
|
17430J
|
17430J
17565-74290 Support, Exhaust Pipe, No.2[10.1984 - 12.1986] 2E#..EP7# |
17565-74290 |
from US $7.22 |
||
|
17430V
|
17430V
17505-11010
Bolt Or Ring, Exhaust Tail Pipe (For Rear)
[10.1984 - 12.1989] 2EELU,2EL#..EP7# |
17505-11010 |
— | ||
|
17451
|
17451
90917-06026
Gasket, Exhaust Pipe
[10.1984 - 12.1989] 2EELU,2EL#..EP7# |
90917-06026 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06060 Gasket, Exhaust Pipe, Center[10.1984 - 12.1989] 2EELU,2EL#..EP7# |
90917-06060 |
from US $2.59 |
||
|
9011908594
|
9011908594
90119-08594 BOLT |
90119-08594 |
from US $1.44 |
||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9151160814
|
9151160814
91511-60814
New Genuine Part
|
91511-60814 |
— | ||
| replacement | |||||
|
9151160814
|
9151160814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
US $2.24 |
||
|
9151160840
|
9151160840
91511-60840
Bolt(For Alternator)
|
91511-60840 |
— | ||
| replacement | |||||
|
9151160840
|
9151160840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
US $2.40 |
||
