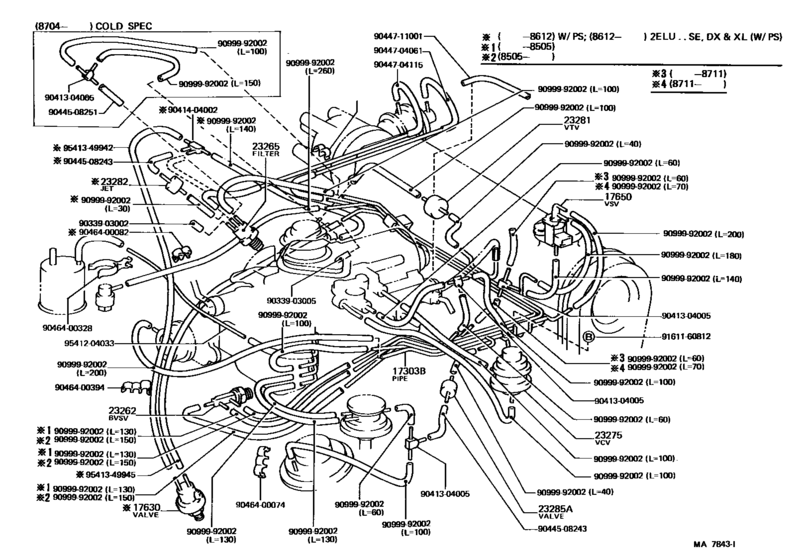

Vacuum Piping ([10.1984 - ] (8410- )2ELU) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- Japan
- Frame
- EP71
- grade
- DX
- body
- SED
- ENGINE
- 2ELU
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-11010 Pipe Sub-Assy, Air, No.1[10.1984 - 12.1986] 2ELU..EP71 |
17303-11010 |
US $60.72 |
||
| replacement | |||||
|
17303B
|
17303B
17303-11011 Pipe Sub-Assy, Air, No.1[10.1984 - 12.1986] 2ELU..EP71 |
17303-11011 |
US $60.72 |
||
|
17303B
|
17303B
17303-11011 Pipe Sub-Assy, Air, No.1[12.1986 - 12.1989] 2ELU..EP71 |
17303-11011 |
US $60.72 |
||
|
17630
|
17630
17630-15021
Valve Assy, Air Control
[10.1984 - 12.1986] 2ELU..EP71 W/POWER STEERING |
17630-15021 |
— | ||
|
17650
|
17650
89570-11020 Valve Assy, Vacuum Switching[10.1984 - 12.1989] 2ELU..EP71 |
89570-11020 |
US $115.02 |
||
|
23262
|
23262
25820-11010
Valve, Bimetal Vacuum Switching, No.1
[10.1984 - 12.1989] 2ELU..EP71 |
25820-11010 |
— | ||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[10.1984 - 12.1989] 2EL#..EP7# |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[10.1984 - 12.1989] 2EL#..EP7# |
90917-11027 |
from US $23.71 |
||
|
23275
|
23275
90925-03156
Valve, Vacuum Control, No.1
[10.1984 - 12.1989] 2EL#..EP7# |
90925-03156 |
— | ||
|
23281
|
23281
90925-01015
Valve, Vacuum Transmitting, No.1
[03.1985 - 12.1986] 2EL#..EP7# |
90925-01015 |
— | ||
| replacement | |||||
|
23281
|
23281
90925-01099
Valve, Vacuum Transmitting, No.1
[03.1985 - 12.1986] 2EL#..EP7# |
90925-01099 |
— | ||
|
23281
|
23281
90925-01041
Valve, Bimetal Vacuum Switching, No.1
[10.1984 - 03.1985] 2EL#..EP7# |
90925-01041 |
— | ||
|
23281
|
23281
90925-01099
Valve, Vacuum Transmitting, No.1
[12.1986 - 12.1989] 2EL#..EP7# |
90925-01099 |
— | ||
|
23282
|
23282
90925-01021 Valve, Vacuum Transmitting, No.1[10.1984 - 12.1986] 2ELU..EP71 W/POWER STEERING |
90925-01021 |
from US $19.92 |
||
|
23282
|
23282
90925-01099
Valve, Vacuum Transmitting, No.1
[12.1986 - 08.1988] 2ELU..EP71..SE; 2ELU..EP71..DX,XL W/POWER STEERING |
90925-01099 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[10.1984 - 12.1989] 2ELU..EP71 |
90917-10049 |
from US $6.59 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9041404002
|
9041404002
90414-04002 Way, 4 (For Front Drive Shift) |
90414-04002 |
US $2.77 |
||
|
9044508243
|
9044508243
90445-08243 Hose Assy, Vacuum Transmitting |
90445-08243 |
US $3.20 |
||
| replacement | |||||
|
9044508243
|
9044508243
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9044508251
|
9044508251
90445-08251
New Genuine Part
|
90445-08251 |
— | ||
|
9044704061
|
9044704061
90447-04061 Hose, Fuel, No.1(For Charcoal Canister) |
90447-04061 |
US $4.08 |
||
|
9044704115
|
9044704115
90447-04115 Hose, Fuel, No.1(For Charcoal Canister) |
90447-04115 |
US $4.95 |
||
|
9044711001
|
9044711001
90447-11001 New Genuine Part |
90447-11001 |
US $11.65 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400328
|
9046400328
90464-00328 New Genuine Part |
90464-00328 |
US $7.28 |
||
|
9046400394
|
9046400394
90464-00394 New Genuine Part |
90464-00394 |
US $3.06 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9541204033
|
9541204033
95412-04033 New Genuine Part |
95412-04033 |
US $3.35 |
||
|
9541349942
|
9541349942
95413-49942 New Genuine Part |
95413-49942 |
US $4.95 |
||
|
9541349945
|
9541349945
95413-49945
Hose, Fuel, No.1(For Charcoal Canister)
|
95413-49945 |
— | ||
