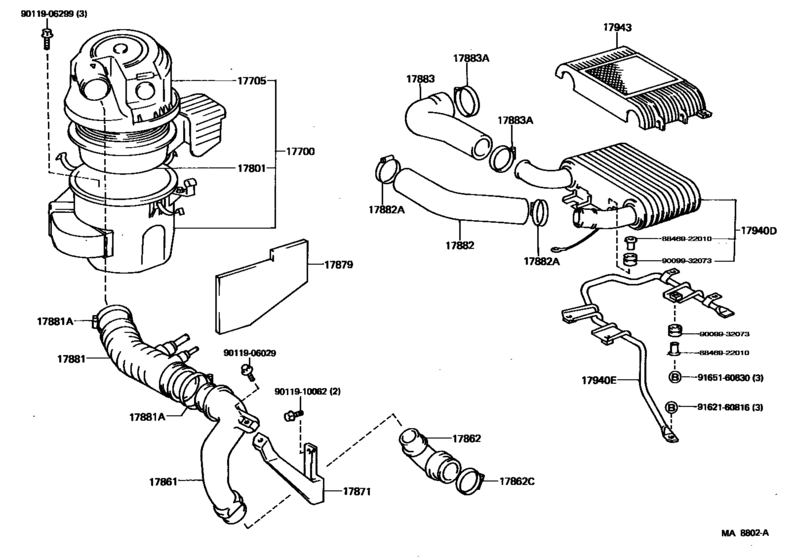

Air Cleaner ([01.1986 - ] (8601- )2ETELU) Diagram Toyota STARLET
- Year
- 1986 - 1989
- Sales region
- Japan
- Frame
- EP71
- grade
- TBS
- body
- SED
- ENGINE
- 2ETELU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 12.1989
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-11240
Cleaner Assy, Air
[01.1986 - 12.1986] 2ETELU..EP71 |
17700-11240 |
— | ||
|
17700
|
17700
17700-11390
Cleaner Assy, Air
[12.1986 - 12.1989] 2ETELU..EP71..4FC |
17700-11390 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-11240
Cleaner Assy, Air
[12.1986 - 12.1989] 2ETELU..EP71..4FC |
17700-11240 |
— | ||
|
17705
|
17705
17705-11210
Cap Sub-Assy, Air Cleaner
[01.1986 - 12.1989] 2ETELU..EP71 |
17705-11210 |
— | ||
|
17801
|
17801
17801-63010
Element Sub-Assy, Air Cleaner Filter
[10.1984 - 12.1989] 2EELU,2ETELU..EP71 |
17801-63010 |
— | ||
|
17861
|
17861
17861-11050
Connector, Intake Air
[01.1986 - 12.1989] 2ETELU..EP71 |
17861-11050 |
— | ||
|
17862
|
17862
17862-11050
Connector, Intake Air, No.2
[01.1986 - 04.1986] 2ETELU..EP71 |
17862-11050 |
— | ||
|
17862
|
17862
17862-11051
Connector, Intake Air, No.2
[04.1986 - 12.1989] 2ETELU..EP71 |
17862-11051 |
— | ||
|
17862C
|
17862C
90460-55006 Clamp Or Clip(For Air Hose, No.2)[01.1986 - 04.1986] 2ETELU..EP71 |
90460-55006 |
US $5.53 |
||
| replacement | |||||
|
17862C
|
17862C
90460-55003 Clamp Or Clip(For Air Hose, No.1)[01.1986 - 04.1986] 2ETELU..EP71 |
90460-55003 |
from US $4.32 |
||
|
17862C
|
17862C
90460-57002 Clamp Or Clip(For Air Hose, No.1)[04.1986 - 12.1989] 2ETELU..EP71 |
90460-57002 |
US $6.40 |
||
|
17871
|
17871
17871-11010
Stay, Air Connector
[01.1986 - 12.1989] 2ETELU..EP71 |
17871-11010 |
— | ||
|
17879
|
17879
17879-11010 Pad, Air Cleaner Inlet[01.1986 - 12.1989] 2ETELU..EP71 |
17879-11010 |
US $15.29 |
||
|
17881
|
17881
17881-11090
Hose, Air Cleaner, No.1
[01.1986 - 12.1986] 2ETELU..EP71 |
17881-11090 |
— | ||
|
17881
|
17881
17881-11150 Hose, Air Cleaner, No.1[12.1986 - 12.1989] 2ETELU..EP71..4FC |
17881-11150 |
US $56.35 |
||
|
17881A
|
17881A
90460-75001 Clamp Or Clip(For Air Hose, No.1)[10.1984 - 12.1989] 2EELU,2ETELU..EP71 |
90460-75001 |
US $8.32 |
||
|
17882
|
17882
17341-11030
Hose, Air Cleaner, No.2
[01.1986 - 12.1989] 2ETELU..EP71 |
17341-11030 |
— | ||
|
17882A
|
17882A
90460-65004
Clamp Or Clip(For Air Hose, No.1)
[01.1986 - 12.1989] 2ETELU..EP71 |
90460-65004 |
— | ||
| replacement | |||||
|
17882A
|
17882A
90460-65002 Clamp Or Clip(For Air Hose, No.1)[01.1986 - 12.1989] 2ETELU..EP71 |
90460-65002 |
from US $4.10 |
||
|
17883
|
17883
17342-11040 Hose, Air Cleaner, No.3[01.1986 - 12.1989] 2ETELU..EP71 |
17342-11040 |
US $50.52 |
||
|
17883A
|
17883A
90460-65004
Clamp Or Clip(For Air Hose, No.1)
[01.1986 - 12.1989] 2ETELU..EP71 INTER COOLER SIDE |
90460-65004 |
— | ||
| replacement | |||||
|
17883A
|
17883A
90460-65002 Clamp Or Clip(For Air Hose, No.1)[01.1986 - 12.1989] 2ETELU..EP71 INTER COOLER SIDE |
90460-65002 |
from US $4.10 |
||
|
17883A
|
17883A
90460-75001 Clamp Or Clip(For Air Hose, No.1)[01.1986 - 12.1989] 2ETELU..EP71 THROTTLE BODY SIDE |
90460-75001 |
US $8.32 |
||
|
17940D
|
17940D
17940-11010 Intercooler Assy[01.1986 - 12.1989] 2ETELU..EP71 |
17940-11010 |
US $754.21 |
||
|
17940E
|
17940E
17945-11010 Bracket, Intercooler Support[01.1986 - 12.1989] 2ETELU..EP71 |
17945-11010 |
US $41.06 |
||
|
17943
|
17943
17943-11010 Protector, Intercooler[01.1986 - 12.1989] 2ETELU..EP71 |
17943-11010 |
US $53.87 |
||
|
8846922010
|
8846922010
88469-22010
Collar(For Radiator)
|
88469-22010 |
— | ||
|
9009932073
|
9009932073
90099-32073
Grommet
|
90099-32073 |
— | ||
|
9011906029
|
9011906029
90119-06029
New Genuine Part
|
90119-06029 |
— | ||
| replacement | |||||
|
9011906029
|
9011906029
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.28 |
||
|
9011906299
|
9011906299
90119-06299 New Genuine Part |
90119-06299 |
US $1.31 |
||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
US $1.44 |
||
