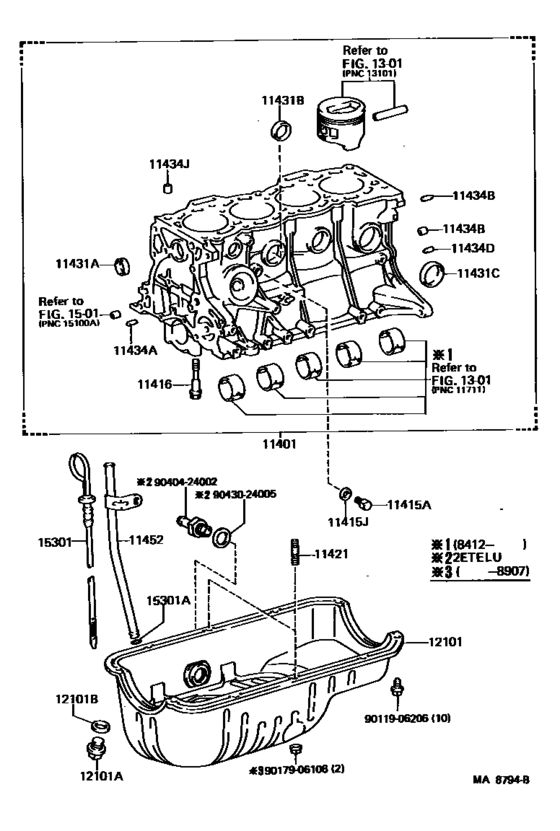

Cylinder Block ([10.1984 - ] (8410- )2E#) Diagram Toyota STARLET
- Year
- 1986 - 1989
- Sales region
- Japan
- Frame
- EP71
- grade
- TBS
- body
- SED
- ENGINE
- 2ETELU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 12.1989
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-19355 Block Sub-Assy, Cylinder[01.1986 - 12.1989] 2ETELU..EP71 |
11401-19355 |
US $2,300.48 |
||
| replacements | |||||
|
11401
|
11401
11401-19846 Block Sub-assy, Cylinder[01.1986 - 12.1989] 2ETELU..EP71 |
11401-19846 |
US $2,271.36 |
||
|
11401
|
11401
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1986 - 12.1989] 2ETELU..EP71 |
90345-52001 |
from US $3.68 |
||
|
11415A
|
11415A
90341-12012 Plug(For Oil Pan Drain)[10.1984 - 12.1989] 2E#..EP7# |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
11415A
|
11415A
90341-T0004
Plug(For Oil Pan Drain)
[10.1984 - 12.1989] 2E#..EP7# |
90341-T0004 |
— | ||
|
11415J
|
11415J
90430-13002 Gasket(For Drain Cock)[10.1984 - 12.1989] 2E#..EP7# |
90430-13002 |
US $1.60 |
||
|
11416
|
11416
90910-02019 Bolt(For Crankshaft Bearing Cap Set)[10.1984 - 12.1989] 2E#..EP7# |
90910-02019 |
US $3.32 |
||
|
11421
|
11421
90116-06014 Bolt, Stud(For Oil Pan)[10.1984 - 07.1989] 2E#..EP7# |
90116-06014 |
US $1.05 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[10.1984 - 12.1989] 2E#..EP7# OD=25 |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43000 Plug, Tight, No.1[10.1984 - 12.1989] 2E#..EP7# OD=30; 1N..NP7# OD=30 |
96411-43000 |
from US $3.84 |
||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[10.1984 - 12.1989] 2E#..EP7# OD=35; 1N..NP7# OD=35 |
96411-43500 |
from US $3.88 |
||
|
11434A
|
11434A
90250-06068 Pin, Straight[10.1984 - 12.1989] 2E#..EP7# 長さ＝１１，外径＝６ |
90250-06068 |
US $3.67 |
||
|
11434B
|
11434B
90250-10017 Pin, Straight(For Clutch Housing Set)[12.1986 - 12.1989] 2E#..EP7# 長さ＝２０，外径＝１０ |
90250-10017 |
from US $1.62 |
||
|
11434B
|
11434B
90250-10052 Pin, Straight(For Flywheel Housing)[10.1984 - 12.1986] 2E#..EP7# 長さ＝２０，外径＝１０,L=20,OD=10 |
90250-10052 |
US $3.06 |
||
|
11434B
|
11434B
90253-15001 Pin, Straight(For Clutch Housing Set)[10.1984 - 12.1987] 2E#..EP7# 長さ＝１４，外径＝１５,L=14,OD=15 |
90253-15001 |
from US $1.27 |
||
|
11434B
|
11434B
90253-15003 Pin, Straight(For Clutch Housing Set)[12.1987 - 12.1989] 2E#..EP7# 長さ＝１７，外径＝１５,L=14,OD=15 |
90253-15003 |
US $2.18 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[10.1984 - 12.1989] 2E#..EP7# 長さ＝１１，外径＝６ |
90250-06068 |
US $3.67 |
||
|
11434J
|
11434J
90253-12001 Pin, Ring W/head[10.1984 - 12.1989] 2E#..EP7# |
90253-12001 |
US $5.52 |
||
|
11452
|
11452
11452-10010 Guide, Oil Level Gage[10.1984 - 12.1989] 2E#..EP7# |
11452-10010 |
US $15.58 |
||
|
12101
|
12101
12101-11020 Pan Sub-Assy, Oil[01.1986 - 12.1989] 2ETELU..EP71 |
12101-11020 |
US $155.79 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[10.1984 - 12.1989] 2E#..EP7#; 1N..NP7# |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004
Plug(For Oil Pan Drain)
[10.1984 - 12.1989] 2E#..EP7#; 1N..NP7# |
90341-T0004 |
— | ||
|
12101B
|
12101B
90430-12011
Gasket(For Oil Pan Drain Plug)
[10.1984 - 03.1988] 2E#..EP7#; 1N..NP7# |
90430-12011 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[10.1984 - 03.1988] 2E#..EP7#; 1N..NP7# |
90430-12028 |
from US $1.11 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[03.1988 - 12.1989] 2E#..EP7#; 1N..NP7# |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[03.1988 - 12.1989] 2E#..EP7#; 1N..NP7# |
90430-12028 |
from US $1.11 |
||
|
15301
|
15301
15301-10020 Gage Sub-Assy, Oil Level[10.1984 - 02.1986] 2E#..EP7# |
15301-10020 |
US $13.69 |
||
|
15301
|
15301
15301-10021 Gage Sub-Assy, Oil Level[02.1986 - 11.1988] 2E#..EP7# |
15301-10021 |
US $13.69 |
||
| replacement | |||||
|
15301
|
15301
15301-10022 Gage Sub-Assy, Oil Level[02.1986 - 11.1988] 2E#..EP7# |
15301-10022 |
US $13.69 |
||
|
15301
|
15301
15301-10022 Gage Sub-Assy, Oil Level[11.1988 - 12.1989] 2E#..EP7# |
15301-10022 |
US $13.69 |
||
|
15301A
|
15301A
96711-19010 Ring, O(For Oil Level Gage Guide)[10.1984 - 12.1989] 2E#..EP7# |
96711-19010 |
from US $2.36 |
||
|
9011906206
|
9011906206
90119-06206 New Genuine Part |
90119-06206 |
US $2.24 |
||
|
9017906106
|
9017906106
90179-06106 NUT |
90179-06106 |
US $1.92 |
||
|
9040424002
|
9040424002
90404-24002 New Genuine Part |
90404-24002 |
US $8.15 |
||
|
9043024005
|
9043024005
90430-24005 Gasket(For Oil Pan Drain Plug) |
90430-24005 |
US $3.20 |
||
| replacement | |||||
|
9043024005
|
9043024005
90430-24011 Gasket(For Oil Pan Drain Plug) |
90430-24011 |
US $1.46 |
||
