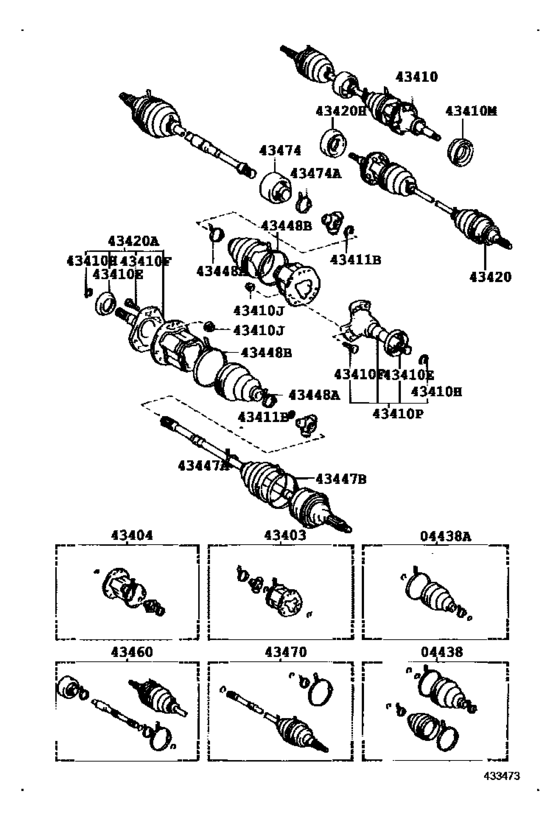

Front Drive Shaft ([01.1986 - 12.1987] (8601-8712)TBO) Diagram Toyota STARLET
- Year
- 1986 - 1989
- Sales region
- Japan
- Frame
- EP71
- grade
- TBS
- body
- SED
- ENGINE
- 2ETELU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 12.1989
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438
|
04438
04438-12080 Boot Kit, Front Drive Shaft[12.1987 - 12.1989] EP71..TBO |
04438-12080 |
US $145.60 |
||
| replacement | |||||
|
04438
|
04438
04438-12370 Boot Kit, Front Drive Shaft[12.1987 - 12.1989] EP71..TBO |
04438-12370 |
US $145.60 |
||
|
04438
|
04438
04438-17010 Boot Kit, Front Drive Shaft[01.1986 - 09.1986] EP71..TBO |
04438-17010 |
US $147.06 |
||
|
04438
|
04438
04438-17011
Boot Kit, Front Drive Shaft
[09.1986 - 12.1987] EP71..TBO |
04438-17011 |
— | ||
|
04438A
|
04438A
04438-12010 Boot Kit, Front Drive Shaft Inboard Joint[01.1986 - 12.1987] EP71..TBO BOOT OD=88.1 |
04438-12010 |
US $91.73 |
||
|
04438A
|
04438A
04438-12070
Boot Kit, Front Drive Shaft Inboard Joint
[12.1987 - 12.1989] EP71..TBO BOOT OD=88.1 |
04438-12070 |
— | ||
| replacement | |||||
|
04438A
|
04438A
04438-32290 Boot Kit, Front Drive Shaft Inboard Joint[12.1987 - 12.1989] EP71..TBO BOOT OD=88.1 |
04438-32290 |
US $87.36 |
||
|
43403
|
43403
43403-19035 Joint Assy, Rear Drive Shaft Inboard[01.1986 - 05.1987] EP71..TBO |
43403-19035 |
US $416.42 |
||
|
43403
|
43403
43403-19036 Joint Assy, Rear Drive Shaft Inboard[05.1987 - 12.1987] EP71..TBO |
43403-19036 |
US $256.26 |
||
|
43403
|
43403
43403-19085 Joint Set, Front Axle Inboard, Rh[12.1987 - 12.1989] EP71..TBO |
43403-19085 |
US $232.96 |
||
|
43404
|
43404
43403-19035 Joint Assy, Rear Drive Shaft Inboard[01.1986 - 05.1987] EP71..TBO |
43403-19035 |
US $416.42 |
||
|
43404
|
43404
43403-19036 Joint Assy, Rear Drive Shaft Inboard[05.1987 - 12.1987] EP71..TBO |
43403-19036 |
US $256.26 |
||
|
43404
|
43404
43403-19085 Joint Set, Front Axle Inboard, Rh[12.1987 - 12.1989] EP71..TBO |
43403-19085 |
US $232.96 |
||
|
43410
|
43410
43410-10030 Shaft Assy, Front Drive, Rh[01.1986 - 12.1987] EP71..TBO |
43410-10030 |
US $1,185.18 |
||
| replacements | |||||
|
43410
|
43410
43410-10241 Shaft Assy, Front Drive, Rh[01.1986 - 12.1987] EP71..TBO |
43410-10241 |
US $1,074.53 |
||
|
43410
|
43410
43502-10030
Hub Sub-Assy, Front Axle
[01.1986 - 12.1987] EP71..TBO |
43502-10030 |
— | ||
|
43410
|
43410
43525-20030 Cap, Front Wheel Adjusting Lock[01.1986 - 12.1987] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43410
|
43410
90179-22020 Nut (For Rear Axle Shaft)[01.1986 - 12.1987] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43410
|
43410
43410-10060 Shaft Assy, Front Drive, Rh[12.1987 - 12.1989] EP71..TBO |
43410-10060 |
US $1,084.72 |
||
| replacements | |||||
|
43410
|
43410
43410-10241 Shaft Assy, Front Drive, Rh[12.1987 - 12.1989] EP71..TBO |
43410-10241 |
US $1,074.53 |
||
|
43410
|
43410
43502-10030
Hub Sub-Assy, Front Axle
[12.1987 - 12.1989] EP71..TBO |
43502-10030 |
— | ||
|
43410
|
43410
43525-20030 Cap, Front Wheel Adjusting Lock[12.1987 - 12.1989] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43410
|
43410
90179-22020 Nut (For Rear Axle Shaft)[12.1987 - 12.1989] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43410E
|
43410E
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[10.1984 - 12.1987] EP7#,NP7# |
41336-12010 |
from US $1.68 |
||
|
43410F
|
43410F
90114-08006
Bolt, Serration (For Differential Side Gear Shaft)
[01.1986 - 12.1987] EP71..TBO |
90114-08006 |
— | ||
|
43410H
|
43410H
90521-26002
Ring, Hole Snap (For Rear Differential Side Gear Shaft)
[01.1986 - 12.1987] EP71..TBO |
90521-26002 |
— | ||
|
43410J
|
43410J
90179-08053 Nut (For Differential Side Gear Shaft)[01.1986 - 12.1987] EP71..TBO |
90179-08053 |
from US $1.85 |
||
|
43410M
|
43410M
90311-34005 Seal, Oil (For Transaxle Case)[01.1986 - 09.1987] EP71,NP70..4FC |
90311-34005 |
US $3.93 |
||
| replacement | |||||
|
43410M
|
43410M
90311-34012 Oil Seal[01.1986 - 09.1987] EP71,NP70..4FC |
90311-34012 |
US $5.60 |
||
|
43410M
|
43410M
90311-34012 Oil Seal[09.1987 - 12.1989] EP71..3FC; EP71,NP70..4FC |
90311-34012 |
US $5.60 |
||
|
43410P
|
43410P
41304-12010 Shaft Sub-Assy, Differential Side Gear[01.1986 - 12.1987] EP71..TBO |
41304-12010 |
US $147.06 |
||
|
43411B
|
43411B
90520-22005 Ring, Snap (For Rear Drive Shaft)[05.1987 - 12.1989] EP71..TBO |
90520-22005 |
from US $1.24 |
||
|
43411B
|
43411B
90520-23035 Ring, Snap (For Rear Drive Shaft)[01.1986 - 05.1987] EP71..TBO |
90520-23035 |
US $2.77 |
||
|
43420
|
43420
43420-10030 Shaft Assy, Front Drive, Lh[01.1986 - 12.1987] EP71..TBO |
43420-10030 |
US $959.50 |
||
| replacements | |||||
|
43420
|
43420
43420-10270 Shaft Assy, Front Drive, Lh[01.1986 - 12.1987] EP71..TBO |
43420-10270 |
US $959.50 |
||
|
43420
|
43420
43502-10030
Hub Sub-Assy, Front Axle
[01.1986 - 12.1987] EP71..TBO |
43502-10030 |
— | ||
|
43420
|
43420
43525-20030 Cap, Front Wheel Adjusting Lock[01.1986 - 12.1987] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43420
|
43420
90179-22020 Nut (For Rear Axle Shaft)[01.1986 - 12.1987] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43420
|
43420
43420-10060 Shaft Assy, Front Drive, Lh[12.1987 - 12.1989] EP71..TBO |
43420-10060 |
US $969.70 |
||
| replacements | |||||
|
43420
|
43420
43420-10270 Shaft Assy, Front Drive, Lh[12.1987 - 12.1989] EP71..TBO |
43420-10270 |
US $959.50 |
||
|
43420
|
43420
43502-10030
Hub Sub-Assy, Front Axle
[12.1987 - 12.1989] EP71..TBO |
43502-10030 |
— | ||
|
43420
|
43420
43525-20030 Cap, Front Wheel Adjusting Lock[12.1987 - 12.1989] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43420
|
43420
90179-22020 Nut (For Rear Axle Shaft)[12.1987 - 12.1989] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43420A
|
43420A
41309-12010 Shaft Sub-Assy, Differential Side Gear[01.1986 - 12.1987] EP71..TBO |
41309-12010 |
US $147.06 |
||
|
43420H
|
43420H
90311-34010 Seal, Oil (For Transaxle Case)[01.1986 - 11.1987] EP71,NP70..4FC |
90311-34010 |
US $9.61 |
||
| replacement | |||||
|
43420H
|
43420H
90311-34026 Oil Seal, Front Drive Shaft, Lh[01.1986 - 11.1987] EP71,NP70..4FC |
90311-34026 |
from US $7.52 |
||
|
43420H
|
43420H
90311-34013
Seal, Oil, No.2(For Transaxle Case)
[11.1987 - 12.1989] EP71,NP70..4FC |
90311-34013 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-34026 Oil Seal, Front Drive Shaft, Lh[11.1987 - 12.1989] EP71,NP70..4FC |
90311-34026 |
from US $7.52 |
||
|
43447A
|
43447A
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[10.1984 - 12.1989] EP7#,NP7# |
90949-01078 |
US $0.61 |
||
|
43447B
|
43447B
90949-01080 Clamp (For Rear Drive Shaft Outboard Joint Boot)[10.1984 - 12.1987] EP7#,NP7# |
90949-01080 |
US $3.93 |
||
|
43448A
|
43448A
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[10.1984 - 12.1989] EP7#,NP7# |
90949-01078 |
US $0.61 |
||
|
43448B
|
43448B
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[12.1987 - 12.1989] EP71..TBO |
90949-01076 |
— | ||
| replacement | |||||
|
43448B
|
43448B
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [12.1987 - 12.1989] EP71..TBO |
42345-12160 |
from US $4.80 |
||
|
43448B
|
43448B
90949-01079 Clamp (For Rear Drive Shaft Inboard Joint Boot)[01.1986 - 12.1987] EP71..TBO |
90949-01079 |
US $2.18 |
||
|
43460
|
43460
43460-19145 Shaft Assy, Front Drive Outboard Joint, Rh[01.1986 - 05.1987] EP71..TBO |
43460-19145 |
US $615.89 |
||
| replacements | |||||
|
43460
|
43460
43460-10H07 Shaft Assy, Front Drive Outboard Joint, Rh[01.1986 - 05.1987] EP71..TBO |
43460-10H07 |
US $601.33 |
||
|
43460
|
43460
43525-20030 Cap, Front Wheel Adjusting Lock[01.1986 - 05.1987] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43460
|
43460
90179-22020 Nut (For Rear Axle Shaft)[01.1986 - 05.1987] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43460
|
43460
43460-19146 Shaft Assy, Front Drive Outboard Joint, Rh[05.1987 - 12.1987] EP71..TBO |
43460-19146 |
US $601.33 |
||
| replacements | |||||
|
43460
|
43460
43460-10H07 Shaft Assy, Front Drive Outboard Joint, Rh[05.1987 - 12.1987] EP71..TBO |
43460-10H07 |
US $601.33 |
||
|
43460
|
43460
43525-20030 Cap, Front Wheel Adjusting Lock[05.1987 - 12.1987] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43460
|
43460
90179-22020 Nut (For Rear Axle Shaft)[05.1987 - 12.1987] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43460
|
43460
43460-19325 Shaft Assy, Front Drive Outboard Joint, Rh[12.1987 - 12.1989] EP71..TBO |
43460-19325 |
US $588.22 |
||
| replacements | |||||
|
43460
|
43460
43460-80085
Shaft Assy, Front Drive Outboard Joint, Rh
[12.1987 - 12.1989] EP71..TBO |
43460-80085 |
— | ||
|
43460
|
43460
43525-20030 Cap, Front Wheel Adjusting Lock[12.1987 - 12.1989] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43460
|
43460
90179-22020 Nut (For Rear Axle Shaft)[12.1987 - 12.1989] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43470
|
43470
43470-19115 Shaft Assy, Front Drive Outboard Joint, Lh[01.1986 - 05.1987] EP71..TBO |
43470-19115 |
US $519.79 |
||
| replacements | |||||
|
43470
|
43470
43470-10H07 Shaft Assy, Front Drive Outboard Joint, Lh[01.1986 - 05.1987] EP71..TBO |
43470-10H07 |
US $519.79 |
||
|
43470
|
43470
43525-20030 Cap, Front Wheel Adjusting Lock[01.1986 - 05.1987] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43470
|
43470
90179-22020 Nut (For Rear Axle Shaft)[01.1986 - 05.1987] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43470
|
43470
43470-19116 Shaft Assy, Front Drive Outboard Joint, Lh[05.1987 - 12.1987] EP71..TBO |
43470-19116 |
US $519.79 |
||
| replacements | |||||
|
43470
|
43470
43470-10H07 Shaft Assy, Front Drive Outboard Joint, Lh[05.1987 - 12.1987] EP71..TBO |
43470-10H07 |
US $519.79 |
||
|
43470
|
43470
43525-20030 Cap, Front Wheel Adjusting Lock[05.1987 - 12.1987] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43470
|
43470
90179-22020 Nut (For Rear Axle Shaft)[05.1987 - 12.1987] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43470
|
43470
43470-19275 Shaft Assy, Front Drive Outboard Joint, Lh[12.1987 - 12.1989] EP71..TBO |
43470-19275 |
US $586.77 |
||
| replacements | |||||
|
43470
|
43470
43470-80160
Shaft Assy, Front Drive Outboard Joint, Lh
[12.1987 - 12.1989] EP71..TBO |
43470-80160 |
— | ||
|
43470
|
43470
43525-20030 Cap, Front Wheel Adjusting Lock[12.1987 - 12.1989] EP71..TBO |
43525-20030 |
from US $2.91 |
||
|
43470
|
43470
90179-22020 Nut (For Rear Axle Shaft)[12.1987 - 12.1989] EP71..TBO |
90179-22020 |
from US $2.34 |
||
|
43474
|
43474
43474-12010 Damper, Drive Shaft[01.1986 - 01.1987] EP71..TBO |
43474-12010 |
US $66.54 |
||
| replacement | |||||
|
43474
|
43474
43474-12020
Damper, Drive Shaft
[01.1986 - 01.1987] EP71..TBO |
43474-12020 |
— | ||
|
43474
|
43474
43474-12020
Damper, Drive Shaft
[01.1987 - 12.1989] EP71..TBO |
43474-12020 |
— | ||
|
43474A
|
43474A
42345-14010 Clamp, Rear Drive Shaft Boot[01.1986 - 12.1989] EP71..TBO |
42345-14010 |
US $11.20 |
||
