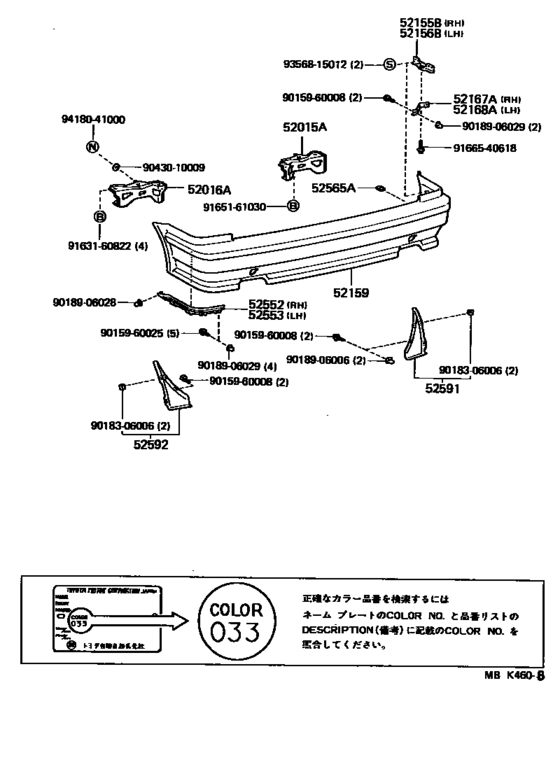

Rear Bumper & Bumper Stay ([01.1986 - ] (8601- )TBO) Diagram Toyota STARLET
- Year
- 1986 - 1989
- Sales region
- Japan
- Frame
- EP71
- grade
- TBS
- body
- SED
- ENGINE
- 2ETELU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 12.1989
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52015A
|
52015A
52015-10070 Arm Sub-Assy, Rear Bumper, Rh[01.1986 - 12.1989] EP71..TBO |
52015-10070 |
US $49.07 |
||
|
52016A
|
52016A
52016-10070 Arm Sub-Assy, Rear Bumper, Lh[01.1986 - 12.1989] EP71..TBO |
52016-10070 |
US $49.07 |
||
|
52155B
|
52155B
52157-10040
Support, Rear Bumper Side, No.2 Rh
[01.1986 - 12.1989] EP71..TBO |
52157-10040 |
— | ||
|
52156B
|
52156B
52157-10040
Support, Rear Bumper Side, No.2 Rh
[01.1986 - 12.1989] EP71..TBO |
52157-10040 |
— | ||
|
52159
|
52159
52159-10090-01 Cover, Rear Bumper[01.1986 - 12.1987] EP71..TBS BLACK-M,BLACK,6A5 |
52159-10090-01 |
US $711.98 |
||
| replacement | |||||
|
52159
|
52159
52159-10080 Cover, Rear Bumper[01.1986 - 12.1987] EP71..TBS BLACK-M,BLACK,6A5 |
52159-10080 |
US $396.03 |
||
|
52159
|
52159
52159-10090-03 Cover, Rear Bumper[01.1986 - 12.1986] EP71..TBS SILVER-M,SILVER,148 |
52159-10090-03 |
US $711.98 |
||
| replacement | |||||
|
52159
|
52159
52159-10080 Cover, Rear Bumper[01.1986 - 12.1986] EP71..TBS SILVER-M,SILVER,148 |
52159-10080 |
US $396.03 |
||
|
52159
|
52159
52159-10090-07 Cover, Rear Bumper[12.1987 - 12.1989] EP71..TBS DARK GREEN-M,DARK GREEN M,6K2 |
52159-10090-07 |
US $711.98 |
||
| replacement | |||||
|
52159
|
52159
52159-10080 Cover, Rear Bumper[12.1987 - 12.1989] EP71..TBS DARK GREEN-M,DARK GREEN M,6K2 |
52159-10080 |
US $396.03 |
||
|
52159
|
52159
52159-10090-08 Cover, Rear Bumper[01.1986 - 12.1989] EP71..TBS WHITE,WHITE,041 |
52159-10090-08 |
US $711.98 |
||
|
52159
|
52159
52159-10090-13 Cover, Rear Bumper[12.1986 - 12.1989] EP71..TBS MEDIUM GRAY-M,MEDIUM GRAY METALLIC,27D |
52159-10090-13 |
US $711.98 |
||
| replacement | |||||
|
52159
|
52159
52159-10080 Cover, Rear Bumper[12.1986 - 12.1989] EP71..TBS MEDIUM GRAY-M,MEDIUM GRAY METALLIC,27D |
52159-10080 |
US $396.03 |
||
|
52167A
|
52167A
52167-10040 Support, Rear Bumper Side, No.4 Rh[01.1986 - 12.1989] EP71..TBO |
52167-10040 |
US $6.84 |
||
|
52168A
|
52168A
52168-10030 Support, Rear Bumper Side, No.4 Lh[01.1986 - 12.1989] EP71..TBO |
52168-10030 |
US $6.84 |
||
|
52552
|
52552
52552-10010
Filler, Rear Bumper, Rh
[01.1986 - 12.1989] EP71..TBO |
52552-10010 |
— | ||
|
52553
|
52553
52553-10010 Filler, Rear Bumper, Lh[01.1986 - 12.1989] EP71..TBO |
52553-10010 |
US $29.27 |
||
|
52565A
|
52565A
52565-12040 Retainer, Front Bumper, Lower Center[01.1986 - 12.1989] EP71..TBO |
52565-12040 |
US $4.32 |
||
|
52591
|
52591
52591-10010
Seal, Rear Bumper Side, Rh
[01.1986 - 12.1989] EP71..TBO |
52591-10010 |
— | ||
|
52592
|
52592
52592-10010
Seal, Rear Bumper Side, Lh
[01.1986 - 12.1989] EP71..TBO |
52592-10010 |
— | ||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.12 |
||
|
9015960025
|
9015960025
90159-60025 SCREW W-WASHER |
90159-60025 |
US $3.20 |
||
|
9018306006
|
9018306006
90183-06006
Retainer, Fuel Filler Pipe Protector
|
90183-06006 |
— | ||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906028
|
9018906028
90189-06028 CLIP |
90189-06028 |
from US $0.80 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
from US $0.98 |
||
|
9043010009
|
9043010009
90430-10009 New Genuine Part |
90430-10009 |
US $2.48 |
||
|
9163160822
|
9163160822
91631-60822 BOLT |
91631-60822 |
US $1.12 |
||
|
9165161030
|
9165161030
91651-61030 Bolt (For Transfer Case) |
91651-61030 |
from US $1.48 |
||
|
9166540618
|
9166540618
91665-40618
New Genuine Part
|
91665-40618 |
— | ||
| replacement | |||||
|
9166540618
|
9166540618
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
