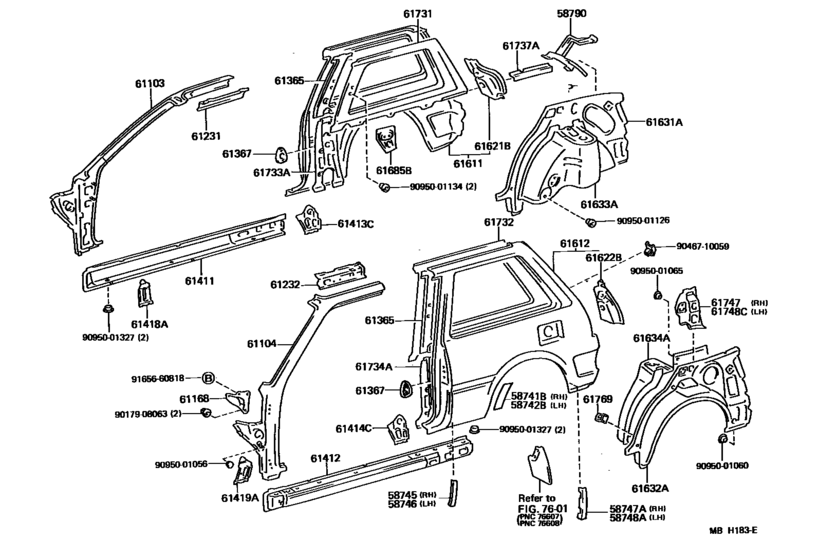

Side Member ([10.1984 - ] (8410- )EP76,NP76) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- Japan
- Frame
- EP76
- grade
- CS
- body
- V
- ENGINE
- 2ELJ
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Seating Capacity
- 02S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741B
|
58741B
58741-10020 Protector, Quarter Panel, Rh[09.1988 - 12.1989] EP7#,NP7#..2D,3D |
58741-10020 |
US $15.43 |
||
|
58741B
|
58741B
58741-12060 Protector, Quarter Panel, Rh[01.1988 - 09.1988] EP7#,NP7#..2D,3D |
58741-12060 |
US $11.79 |
||
|
58742B
|
58742B
58741-12060 Protector, Quarter Panel, Rh[01.1988 - 09.1988] EP7#,NP7#..2D,3D |
58741-12060 |
US $11.79 |
||
|
58742B
|
58742B
58742-10020 Protector, Quarter Panel, Lh[09.1988 - 12.1989] EP7#,NP7#..2D,3D |
58742-10020 |
US $15.43 |
||
|
58745
|
58745
58745-10010 Protector, Quarter Panel, Front Rh[09.1988 - 12.1989] EP7#,NP7#..2D,3D |
58745-10010 |
US $5.24 |
||
|
58746
|
58746
58746-10010 Protector, Quarter Panel, Front Lh[09.1988 - 12.1989] EP7#,NP7#..2D,3D |
58746-10010 |
US $16.45 |
||
|
58747A
|
58747A
58747-10010 Protector, Quarter Panel, Rear Rh[09.1988 - 12.1989] EP7#,NP7# |
58747-10010 |
US $16.45 |
||
|
58748A
|
58748A
58748-10010 Protector, Quarter Panel, Rear Lh[09.1988 - 12.1989] EP7#,NP7# |
58748-10010 |
US $16.45 |
||
|
58790
|
58790
58790-10020 Carrier Assy, Jack[10.1984 - 01.1986] EP7# |
58790-10020 |
US $15.58 |
||
|
58790
|
58790
58790-10030 Carrier Assy, Jack[01.1986 - 12.1989] EP7#,NP7# |
58790-10030 |
US $17.33 |
||
|
61103
|
61103
61021-10100 Pillar Sub-Assy, Front Body, Rh[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61021-10100 |
US $621.71 |
||
|
61104
|
61104
61022-10150 Pillar Sub-Assy, Front Body, Lh[10.1984 - 12.1989] EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,STD,TOR,XL) |
61022-10150 |
US $621.71 |
||
|
61104
|
61104
61022-10160 Pillar Sub-Assy, Front Body, Lh[10.1984 - 12.1989] EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,SI,TBS,TOR,XL) W/FENDER MIRROR |
61022-10160 |
US $621.71 |
||
|
61168
|
61168
61166-10030 Bracket, Instrument Panel To Cowl Side, Lh[10.1984 - 12.1989] EP7#,NP7# |
61166-10030 |
US $17.33 |
||
|
61231
|
61231
61231-10090 Rail, Roof Side, Inner Rh[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61231-10090 |
US $38.58 |
||
|
61232
|
61232
61232-10080 Rail, Roof Side, Inner Lh[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61232-10080 |
US $38.58 |
||
|
61365
|
61365
61347-10040 Reinforcement, Belt Anchor To Center Pillar[10.1984 - 12.1989] EP7#,NP76..CD,CS,RI,STD,TOR RH |
61347-10040 |
US $63.77 |
||
| replacement | |||||
|
61365
|
61365
61347-10050 Reinforcement, Belt Anchor To Center Pillar[10.1984 - 12.1989] EP7#,NP76..CD,CS,RI,STD,TOR RH |
61347-10050 |
US $63.77 |
||
|
61365
|
61365
61348-10040 Reinforcement, Belt Anchor To Center Pillar[10.1984 - 12.1989] EP7#,NP76..CD,CS,RI,STD,TOR LH |
61348-10040 |
US $63.77 |
||
| replacement | |||||
|
61365
|
61365
61348-10050 Reinforcement, Belt Anchor To Center Pillar[10.1984 - 12.1989] EP7#,NP76..CD,CS,RI,STD,TOR LH |
61348-10050 |
US $63.77 |
||
|
61367
|
61367
61367-14010 Reinforcement, Belt Anchor To Center Pillar, Lower[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61367-14010 |
US $9.17 |
||
|
61411
|
61411
61411-10120 Panel, Rocker, Outer Rh[10.1984 - 12.1989] EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,SI,STD,TOR,XL) |
61411-10120 |
US $275.18 |
||
|
61412
|
61412
61412-10120 Panel, Rocker, Outer Lh[10.1984 - 12.1989] EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,SI,STD,TOR,XL) |
61412-10120 |
US $275.18 |
||
|
61413C
|
61413C
61413-10010 Reinforcement, Rocker Panel, No.2 Rh[10.1984 - 12.1989] EP7#,NP7# |
61413-10010 |
US $20.24 |
||
|
61414C
|
61414C
61414-10010 Reinforcement, Rocker Panel, No.2 Lh[10.1984 - 12.1989] EP7#,NP7# |
61414-10010 |
US $20.24 |
||
|
61418A
|
61418A
61418-10020 Reinforcement, Rocker Panel, Rh[10.1984 - 12.1989] EP7#,NP7# |
61418-10020 |
US $11.36 |
||
|
61419A
|
61419A
61419-10010 Reinforcement, Rocker Panel, Lh[10.1984 - 12.1989] EP7#,NP7# |
61419-10010 |
US $11.36 |
||
|
61611
|
61611
61601-1C060 Panel, Quarter, Rh[10.1984 - 05.1985] EP7#..2D,3D |
61601-1C060 |
US $499.41 |
||
| replacement | |||||
|
61611
|
61611
61601-1C151
Panel, Quarter, Rh
[10.1984 - 05.1985] EP7#..2D,3D |
61601-1C151 |
— | ||
|
61611
|
61611
61601-1C150 Panel, Quarter, Rh[05.1985 - 01.1986] EP7#..2D,3D |
61601-1C150 |
US $500.86 |
||
| replacement | |||||
|
61611
|
61611
61601-1C151
Panel, Quarter, Rh
[05.1985 - 01.1986] EP7#..2D,3D |
61601-1C151 |
— | ||
|
61611
|
61611
61601-1C220 Panel, Quarter, Rh[12.1986 - 12.1989] EP7#,NP7#..(2D,3D)..(CBR,DSL,EFI) |
61601-1C220 |
US $503.78 |
||
|
61612
|
61612
61602-1C030 Panel, Quarter, Lh[10.1984 - 05.1985] EP7#..2D,3D |
61602-1C030 |
US $499.41 |
||
| replacement | |||||
|
61612
|
61612
61602-1C121 Panel, Quarter, LhQUARTER, LH [10.1984 - 05.1985] EP7#..2D,3D |
61602-1C121 |
US $503.78 |
||
|
61612
|
61612
61602-1C120 Panel, Quarter, Lh[01.1986 - 12.1986] EP7#..(2D,3D)..(CD,CS,DX,RI,STD) |
61602-1C120 |
US $500.86 |
||
| replacement | |||||
|
61612
|
61612
61602-1C121 Panel, Quarter, LhQUARTER, LH [01.1986 - 12.1986] EP7#..(2D,3D)..(CD,CS,DX,RI,STD) |
61602-1C121 |
US $503.78 |
||
|
61612
|
61612
61602-1C260 Panel, Quarter, Lh[12.1986 - 12.1989] EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,STD) |
61602-1C260 |
US $503.78 |
||
|
61621B
|
61621B
61621-10020
Trough, Back Door Opening, Front Rh
[10.1984 - 12.1989] EP7#,NP7# |
61621-10020 |
— | ||
|
61622B
|
61622B
61622-10020 Trough, Back Door Opening, Front Lh[10.1984 - 12.1989] EP7#,NP7# |
61622-10020 |
US $39.60 |
||
|
61631A
|
61631A
61631-10040 Panel, Quarter Wheel House, Outer Rh[10.1984 - 12.1989] EP7#,NP7# |
61631-10040 |
US $141.23 |
||
|
61632A
|
61632A
61632-10040 Panel, Quarter Wheel House, Outer Lh[10.1984 - 12.1989] EP7#,NP7# |
61632-10040 |
US $141.23 |
||
|
61633A
|
61633A
61607-10020 Panel, Quarter Wheel House, Inner Rh[10.1984 - 03.1988] EP7#,NP7# |
61607-10020 |
US $202.38 |
||
|
61633A
|
61633A
61607-10021 Panel, Quarter Wheel House, Inner Rh[03.1988 - 12.1989] EP7#,NP7# |
61607-10021 |
US $202.38 |
||
|
61634A
|
61634A
61608-10020 Panel, Quarter Wheel House, Inner Lh[10.1984 - 12.1989] EP7#,NP7# |
61608-10020 |
US $202.38 |
||
|
61731
|
61731
61731-10300 Panel, Roof Side, Inner Upper Rh[10.1984 - 12.1989] EP76,NP76 |
61731-10300 |
US $208.21 |
||
|
61732
|
61732
61732-10300 Panel, Roof Side, Inner Upper Lh[10.1984 - 12.1989] EP76,NP76 |
61732-10300 |
US $208.21 |
||
|
61733A
|
61733A
61733-10030 Panel, Roof Side, Inner Front Rh[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61733-10030 |
US $44.99 |
||
|
61734A
|
61734A
61734-10030 Panel, Roof Side, Inner Front Lh[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61734-10030 |
US $44.99 |
||
|
61737A
|
61737A
61737-10040 Plate, Roof Side Inner Rain Proof, Rh[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61737-10040 |
US $7.86 |
||
|
61747
|
61747
61747-10020 Brace, Roof Side Inner To Wheel House, Rh[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61747-10020 |
US $39.89 |
||
|
61748C
|
61748C
61748-10020 Brace, Roof Side Inner To Wheel House, Lh[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61748-10020 |
US $33.92 |
||
|
61769
|
61769
61753-16010 Retainer, Quarter Trim, Lower[10.1984 - 12.1989] EP7#,NP7#..2D,3D |
61753-16010 |
US $3.06 |
||
|
9017908063
|
9017908063
90179-08063 NUT |
90179-08063 |
US $2.56 |
||
|
9046710059
|
9046710059
90467-10059 New Genuine Part |
90467-10059 |
US $3.64 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001065
|
9095001065
90950-01065 Plug, Hole(For Front Fender Apron) |
90950-01065 |
US $4.48 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9095001134
|
9095001134
90950-01134
New Genuine Part
|
90950-01134 |
— | ||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
||
|
9165660818
|
9165660818
91656-60818 Clamp Or Clip, Hose(for Radiator Outlet No.1) |
91656-60818 |
US $1.89 |
||
| replacement | |||||
|
9165660818
|
9165660818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
