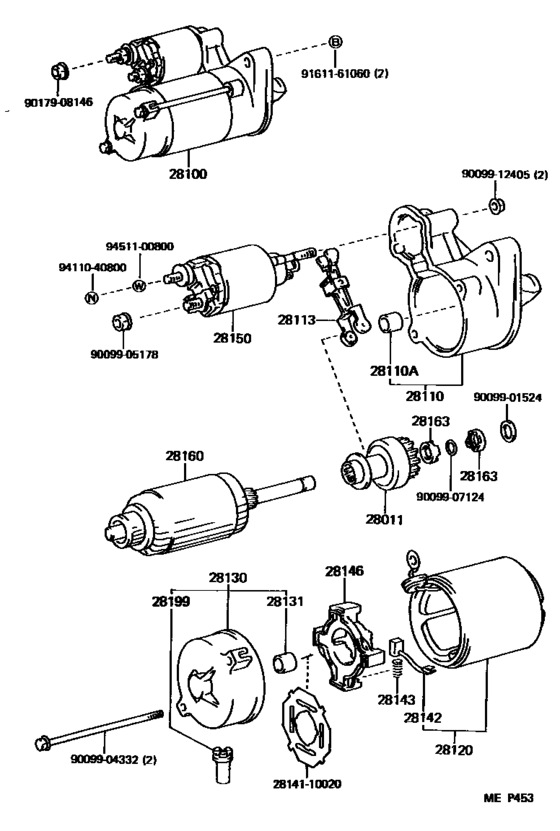

Starter ([12.1989 - 12.1992] 12V 0.6KW (8912-9212)1E) Diagram Toyota STARLET
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- EP80
- grade
- XL
- ENGINE
- 1E
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1992
- Gear Shift Type
- 4F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-10020 Clutch Sub-Assy, StarterSTARTER [12.1989 - 12.1992] 1E..EP80 |
28011-10020 |
US $40.33 |
||
|
28011
|
28011
28011-10030 Clutch Sub-Assy, Starter[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
28011-10030 |
US $64.50 |
||
|
28100
|
28100
28100-10021 Starter Assy[12.1989 - 12.1992] 1E..EP80 12V 0.6KW |
28100-10021 |
US $831.38 |
||
| replacement | |||||
|
28100
|
28100
28100-11010 Starter Assy[12.1989 - 12.1992] 1E..EP80 12V 0.6KW |
28100-11010 |
US $898.35 |
||
|
28100
|
28100
28100-10030 Starter Assy[12.1989 - 12.1992] 1E..EP80 12V 0.8KW,W(50D20L BATTERY) |
28100-10030 |
US $931.84 |
||
| replacement | |||||
|
28100
|
28100
28100-11010 Starter Assy[12.1989 - 12.1992] 1E..EP80 12V 0.8KW,W(50D20L BATTERY) |
28100-11010 |
US $898.35 |
||
|
28110
|
28110
28110-10020 Housing Assy, Starter DriveSTARTER DRIVE [12.1989 - 12.1992] 1E..EP80 |
28110-10020 |
US $60.28 |
||
|
28110
|
28110
28110-10030 Housing Assy, Starter Drive[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
28110-10030 |
US $68.14 |
||
|
28110A
|
28110A
90099-10171
Bearing(For Starter Housing)
[12.1989 - 12.1992] 1E..EP80 |
90099-10171 |
— | ||
|
28113
|
28113
28113-10020 Lever, Starter Pinion Drive[12.1989 - 12.1992] 1E..EP80 |
28113-10020 |
US $11.94 |
||
|
28113
|
28113
28113-15011 Lever, Starter Pinion Drive[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
28113-15011 |
US $16.45 |
||
|
28120
|
28120
28120-10020
Yoke Assy, Starter
[12.1989 - 12.1992] 1E..EP80 |
28120-10020 |
— | ||
|
28120
|
28120
28120-15010
Yoke Assy, Starter
[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
28120-15010 |
— | ||
|
28130
|
28130
28130-10020 Frame Assy, Starter Commutator EndSTARTER COMMUTATOR END [12.1989 - 12.1992] 1E..EP80 |
28130-10020 |
US $36.25 |
||
|
28130
|
28130
28130-10030
Frame Assy, Starter Commutator End
[12.1989 - 01.1992] 2E..EP81;2EE..EP81..MTM; 1E..EP80 W(50D20L BATTERY) |
28130-10030 |
— | ||
| replacement | |||||
|
28130
|
28130
28130-10050
Frame Assy, Starter Commutator End
[12.1989 - 01.1992] 2E..EP81;2EE..EP81..MTM; 1E..EP80 W(50D20L BATTERY) |
28130-10050 |
— | ||
|
28131
|
28131
90099-10134
Bearing, Starter Flange
[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
90099-10134 |
— | ||
|
28131
|
28131
90099-10157
Bearing, Starter Flange
[12.1989 - 12.1992] 1E..EP80 |
90099-10157 |
— | ||
|
28142
|
28142
28142-10020 Brush, Starter[12.1989 - 12.1992] 1E..EP80 |
28142-10020 |
from US $3.85 |
||
|
28143
|
28143
28143-10020
Spring, Starter Brush
[12.1989 - 12.1992] 1E..EP80 |
28143-10020 |
— | ||
|
28146
|
28146
28149-10020
Holder, Starter Brush
[12.1989 - 12.1992] 1E..EP80 |
28149-10020 |
— | ||
|
28150
|
28150
28150-10020
Switch Assy, Magnet Starter
[12.1989 - 12.1992] 1E..EP80 |
28150-10020 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-10021 Switch Assy, Magnet Starter[12.1989 - 12.1992] 1E..EP80 |
28150-10021 |
US $101.34 |
||
|
28150
|
28150
28150-37010 Switch Assy, Magnet Starter[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
28150-37010 |
US $141.23 |
||
| replacement | |||||
|
28150
|
28150
28150-37011
Switch Assy, Magnet Starter
[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
28150-37011 |
— | ||
|
28160
|
28160
28160-10020 Armature Assy, Starter[12.1989 - 12.1992] 1E..EP80 |
28160-10020 |
US $135.41 |
||
|
28160
|
28160
28160-15010 Armature Assy, Starter[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
28160-15010 |
US $230.05 |
||
|
28163
|
28163
28163-10020
Nut Or Collar, Pinion Stop, Starter
[12.1989 - 12.1992] 1E..EP80 |
28163-10020 |
— | ||
| replacement | |||||
|
28163
|
28163
28163-10021
Nut Or Collar, Pinion Stop, Starter
[12.1989 - 12.1992] 1E..EP80 |
28163-10021 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
28163-40011 |
— | ||
|
28199
|
28199
28199-10030
Cover, Starter
[12.1989 - 12.1992] 1E..EP80 W(50D20L BATTERY) |
28199-10030 |
— | ||
|
28199
|
28199
28199-15090
Cover, Starter End Frame
[12.1989 - 12.1992] 1E..EP80 |
28199-15090 |
— | ||
|
2814110020
|
2814110020
28141-10020
Insulator, Brush Holder
|
28141-10020 |
— | ||
|
9009901524
|
9009901524
90099-01524
New Genuine Part
|
90099-01524 |
— | ||
|
9009904332
|
9009904332
90099-04332
New Genuine Part
|
90099-04332 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907124
|
9009907124
90099-07124
Bearing(For Starter Housing)
|
90099-07124 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
