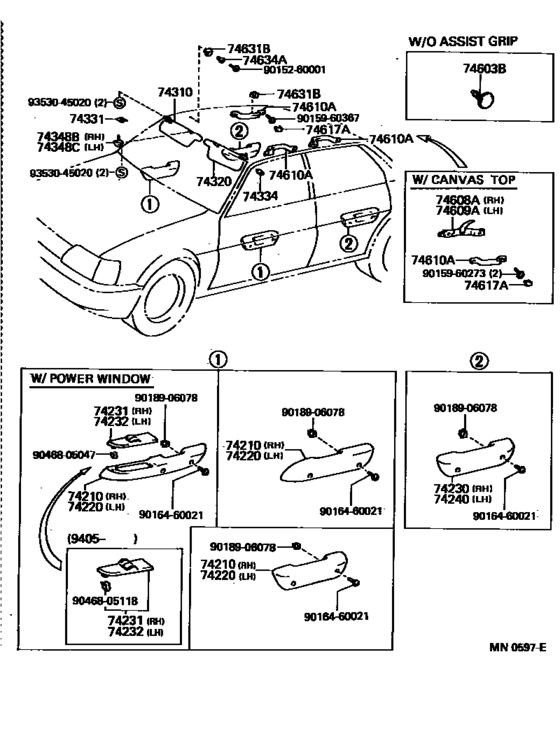

Armrest & Visor ([12.1989 - ] (8912- )) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74210
|
74210
74210-10030-03
Armrest Assy, Front, Rh
[12.1989 - 01.1992] EP8#..GL,S,SI W(POWER WINDOW),GRAY,TRIM1# |
74210-10030-03 |
— | ||
|
74210
|
74210
74210-10030-04
Armrest Assy, Front, Rh
[12.1989 - 01.1992] EP8#..GL,S,SI W(POWER WINDOW),BLUE,TRIM8# |
74210-10030-04 |
— | ||
|
74210
|
74210
74210-10031-P0 Armrest Assy, Front, Rh[12.1992 - 05.1994] EP81..GLI,SI W(POWER WINDOW),GRAY,TRIM1# |
74210-10031-P0 |
US $47.35 |
||
|
74210
|
74210
74210-10050-03 Armrest Assy, Front, Rh[12.1989 - 01.1996] EP8#..GL,GLI,S,SI GRAY,TRIM1# |
74210-10050-03 |
US $71.34 |
||
|
74210
|
74210
74210-10050-04 Armrest Assy, Front, Rh[12.1989 - 01.1992] EP8#..GL,S,SI BLUE,TRIM8#; EP8#,NP80..LHD..(XL,XLI) W(FULL FABRIC DOOR TRIM),BLUE,TRIM8# |
74210-10050-04 |
US $71.34 |
||
|
74220
|
74220
74220-10020-03
Armrest Assy, Front, Lh
[12.1989 - 01.1992] EP8#..GL,S,SI W(POWER WINDOW),GRAY,TRIM1# |
74220-10020-03 |
— | ||
|
74220
|
74220
74220-10020-04
Armrest Assy, Front, Lh
[12.1989 - 01.1992] EP8#..GL,S,SI W(POWER WINDOW),BLUE,TRIM8# |
74220-10020-04 |
— | ||
|
74220
|
74220
74220-10021-P0 Armrest Assy, Front, Lh[10.1992 - 05.1994] EP8#..GL,GLI,S,SI W(POWER WINDOW),GRAY,TRIM1# |
74220-10021-P0 |
US $47.35 |
||
|
74220
|
74220
74220-10040-03 Armrest Assy, Front, Lh[12.1989 - 01.1996] EP8#..GL,GLI,S,SI GRAY,TRIM1# |
74220-10040-03 |
US $71.34 |
||
|
74220
|
74220
74220-10040-04 Armrest Assy, Front, Lh[12.1989 - 01.1992] EP8#..GL,S,SI BLUE,TRIM8#; EP8#,NP80..LHD..(XL,XLI) W(FULL FABRIC DOOR TRIM),BLUE,TRIM8# |
74220-10040-04 |
US $71.34 |
||
|
74231
|
74231
74231-10030 Panel, Front Armrest Base, Upper RhFRONT ARMREST BASE, UPPER RH [12.1989 - 08.1990] EP81..GL,S,SI |
74231-10030 |
US $27.23 |
||
| replacement | |||||
|
74231
|
74231
74231-10030-C0 Panel, Front Armrest Base, Upper RhFRONT ARMREST BASE, UPPER RH [12.1989 - 08.1990] EP81..GL,S,SI |
74231-10030-C0 |
US $27.23 |
||
|
74231
|
74231
74231-10030-01 Panel, Front Armrest Base, Upper RhFRONT ARMREST BASE, UPPER RH [08.1990 - 01.1992] EP81..GL,S,SI BLACK,TRIM1#,8# |
74231-10030-01 |
US $27.23 |
||
| replacement | |||||
|
74231
|
74231
74231-10030-C0 Panel, Front Armrest Base, Upper RhFRONT ARMREST BASE, UPPER RH [08.1990 - 01.1992] EP81..GL,S,SI BLACK,TRIM1#,8# |
74231-10030-C0 |
US $27.23 |
||
|
74231
|
74231
74231-10030-C0 Panel, Front Armrest Base, Upper RhFRONT ARMREST BASE, UPPER RH [08.1992 - 10.1992] EP81..S,SI BLACK,TRIM1# |
74231-10030-C0 |
US $27.23 |
||
|
74231
|
74231
74231-10031-C0 Panel, Front Armrest Base, Upper RhFRONT ARMREST BASE, UPPER RH [10.1992 - 06.1993] EP81..S,SI BLACK,TRIM1# |
74231-10031-C0 |
US $27.23 |
||
| replacement | |||||
|
74231
|
74231
74231-10032-C0 Panel, Rear Door Armrest Base, Upper Rh[10.1992 - 06.1993] EP81..S,SI BLACK,TRIM1# |
74231-10032-C0 |
US $17.18 |
||
|
74231
|
74231
74231-10032-C0 Panel, Rear Door Armrest Base, Upper Rh[06.1993 - 01.1996] EP81..SI BLACK,TRIM1# |
74231-10032-C0 |
US $17.18 |
||
|
74232
|
74232
74232-10010 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [12.1989 - 08.1990] EP81..GL,S,SI |
74232-10010 |
US $27.23 |
||
| replacement | |||||
|
74232
|
74232
74232-10010-C0 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [12.1989 - 08.1990] EP81..GL,S,SI |
74232-10010-C0 |
US $27.23 |
||
|
74232
|
74232
74232-10010-01 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [08.1990 - 01.1992] EP81..GL,S,SI BLACK,TRIM1#,8# |
74232-10010-01 |
US $27.23 |
||
| replacement | |||||
|
74232
|
74232
74232-10010-C0 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [08.1990 - 01.1992] EP81..GL,S,SI BLACK,TRIM1#,8# |
74232-10010-C0 |
US $27.23 |
||
|
74232
|
74232
74232-10010-C0 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [08.1992 - 10.1992] EP81..S,SI BLACK,TRIM1# |
74232-10010-C0 |
US $27.23 |
||
|
74232
|
74232
74232-10011-C0 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [10.1992 - 05.1994] EP81..S,SI BLACK,TRIM1# |
74232-10011-C0 |
US $27.23 |
||
|
74232
|
74232
74232-10030-C0 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [05.1994 - 01.1996] EP81..SI BLACK,TRIM1# |
74232-10030-C0 |
US $24.61 |
||
|
74310
|
74310
74310-10430-03 Visor Assy, RhRH [12.1989 - 01.1992] EP81..GL,S,SI GRAY,TRIM1#,8#; EP8#,NP80..LHD..(XL,XLI) W(VANITY MIRROR),GRAY,TRIM1#,8# |
74310-10430-03 |
US $46.74 |
||
| replacement | |||||
|
74310
|
74310
74310-10440-03
Visor Assy, Rh
[12.1989 - 01.1992] EP81..GL,S,SI GRAY,TRIM1#,8#; EP8#,NP80..LHD..(XL,XLI) W(VANITY MIRROR),GRAY,TRIM1#,8# |
74310-10440-03 |
— | ||
|
74310
|
74310
74310-10440-03
Visor Assy, Rh
[12.1989 - 01.1992] EP8#,NP80..GL,S,SI,XL,XLI W(VANITY MIRROR & MIRROR COVER),GRAY,TRIM1#,8# |
74310-10440-03 |
— | ||
|
74310
|
74310
74310-10590-B1 Visor Assy, RhRH [05.1994 - 01.1996] EP81,NP80..LHD GRAY,TRIM1# |
74310-10590-B1 |
US $46.59 |
||
| replacement | |||||
|
74310
|
74310
74310-10600-B1
Visor Assy, Rh
[05.1994 - 01.1996] EP81,NP80..LHD GRAY,TRIM1# |
74310-10600-B1 |
— | ||
|
74310
|
74310
74310-10600-B1
Visor Assy, Rh
[05.1994 - 01.1996] EP81,NP80 W(VANITY MIRROR & MIRROR COVER),GRAY,TRIM1# |
74310-10600-B1 |
— | ||
|
74320
|
74320
74320-10210-03
Visor Assy, Lh
[12.1989 - 01.1992] EP81;EP80,NP80..STD,XL GRAY,TRIM1#,8# |
74320-10210-03 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-10230-03
Visor Assy, Lh
[12.1989 - 01.1992] EP81;EP80,NP80..STD,XL GRAY,TRIM1#,8# |
74320-10230-03 |
— | ||
|
74320
|
74320
74320-10230-03
Visor Assy, Lh
[12.1989 - 01.1992] EP8#,NP80..GL,S,SI,XL,XLI W(VANITY MIRROR & MIRROR COVER),GRAY,TRIM1#,8# |
74320-10230-03 |
— | ||
|
74320
|
74320
74320-10270-B1 Visor Assy, LhLH [05.1994 - 01.1996] EP81,NP80..LHD GRAY,TRIM1# |
74320-10270-B1 |
US $34.94 |
||
| replacement | |||||
|
74320
|
74320
74320-10290-B1
Visor Assy, Lh
[05.1994 - 01.1996] EP81,NP80..LHD GRAY,TRIM1# |
74320-10290-B1 |
— | ||
|
74320
|
74320
74320-10290-B1
Visor Assy, Lh
[05.1994 - 01.1996] EP81,NP80 W(VANITY MIRROR & MIRROR COVER),GRAY,TRIM1# |
74320-10290-B1 |
— | ||
|
74331
|
74331
74331-30040-03 Case, Visor Arm, RhVISOR ARM, RH [12.1989 - 01.1992] EP8#,NP80 GRAY,TRIM1#,8# |
74331-30040-03 |
US $2.77 |
||
| replacement | |||||
|
74331
|
74331
74331-30040-B1 Case, Visor Arm, RhVISOR ARM, RH [12.1989 - 01.1992] EP8#,NP80 GRAY,TRIM1#,8# |
74331-30040-B1 |
US $2.77 |
||
|
74334
|
74334
74334-30070-03 Case, Visor Arm, LhVISOR ARM, LH [12.1989 - 01.1992] EP8#,NP80 GRAY,TRIM1#,8# |
74334-30070-03 |
US $2.77 |
||
| replacement | |||||
|
74334
|
74334
74334-30070-B1 Case, Visor Arm, LhVISOR ARM, LH [12.1989 - 01.1992] EP8#,NP80 GRAY,TRIM1#,8# |
74334-30070-B1 |
US $2.77 |
||
|
74348B
|
74348B
74348-12010-33 Holder, Visor[12.1989 - 01.1992] EP8#,NP80 GRAY,TRIM1#,8# |
74348-12010-33 |
US $4.66 |
||
|
74348C
|
74348C
74348-12010-33 Holder, Visor[12.1989 - 01.1992] EP8#,NP80 GRAY,TRIM1#,8# |
74348-12010-33 |
US $4.66 |
||
|
74603B
|
74603B
90467-06048-B1 Clip, Roof Headlining[12.1989 - 01.1992] EP80..RHD..4F LIGHT GRAY,TRIM1#,8#; EP80..5F;EP80..LHD..4F..XL;EP81..GL,S,SI,XL,XLI LIGHT GRAY,TRIM1#,8# |
90467-06048-B1 |
US $1.89 |
||
|
74608A
|
74608A
74608-10010 Retainer Sub-Assy, Assist Grip, RhASSIST GRIP, RH [12.1989 - 07.1990] EP81..3D;EP80..3D..5F..XL |
74608-10010 |
US $20.82 |
||
|
74610A
|
74610A
74603-16010-13 Grip Sub-Assy, AssistASSIST, REAR [12.1989 - 01.1992] EP8#..GL,S,SI W(*IPM),SHADOW GRAY,TRIM1#,8# |
74603-16010-13 |
US $21.40 |
||
| replacement | |||||
|
74610A
|
74610A
74610-12030-B4 Grip Sub-Assy, Assist (Lt.Gray)[12.1989 - 01.1992] EP8#..GL,S,SI W(*IPM),SHADOW GRAY,TRIM1#,8# |
74610-12030-B4 |
from US $12.89 |
||
|
74610A
|
74610A
74610-12020-03 Grip Sub-Assy, Assist[12.1989 - 01.1992] EP8#..GL,S,SI,XL,XLI W(MOON ROOF),LIGHT GRAY,TRIM1#,8#,REAR |
74610-12020-03 |
US $26.35 |
||
| replacement | |||||
|
74610A
|
74610A
74610-12020-B2 Grip Sub-Assy, Assist[12.1989 - 01.1992] EP8#..GL,S,SI,XL,XLI W(MOON ROOF),LIGHT GRAY,TRIM1#,8#,REAR |
74610-12020-B2 |
US $26.35 |
||
|
74610A
|
74610A
74610-16010-03 Grip Sub-Assy, Assist[12.1989 - 01.1991] EP8#..3D..(GL,S,SI) W(*IPM & MOON ROOF) OR W(CANVASTOP),LIGHT GRAY,TRIM1#,8#; EP80..RHD..4F W(*IPM & MOON ROOF) OR W(*IPM & CANVASTOP) OR W(CANVASTOP),LIGHT GRAY,TRIM1#,8# |
74610-16010-03 |
US $19.66 |
||
| replacement | |||||
|
74610A
|
74610A
74610-12030-B4 Grip Sub-Assy, Assist (Lt.Gray)[12.1989 - 01.1991] EP8#..3D..(GL,S,SI) W(*IPM & MOON ROOF) OR W(CANVASTOP),LIGHT GRAY,TRIM1#,8#; EP80..RHD..4F W(*IPM & MOON ROOF) OR W(*IPM & CANVASTOP) OR W(CANVASTOP),LIGHT GRAY,TRIM1#,8# |
74610-12030-B4 |
from US $12.89 |
||
|
74617A
|
74617A
74617-16010-53 Plug, Assist Grip[12.1989 - 01.1991] EP8#..3D..(GL,S,SI) W(*IPM & MOON ROOF) OR W(CANVAS TOP),LIGHT GRAY,TRIM1#,8# |
74617-16010-53 |
US $1.46 |
||
|
74631B
|
74631B
74631-20040-13 Hook, CoatCOAT [12.1989 - 01.1992] EP8#..GL,S,SI GRAY,TRIM1#,8# |
74631-20040-13 |
US $4.37 |
||
| replacement | |||||
|
74631B
|
74631B
74631-14010-B0
Hook, Coat
[12.1989 - 01.1992] EP8#..GL,S,SI GRAY,TRIM1#,8# |
74631-14010-B0 |
— | ||
|
9015260001
|
9015260001
90152-60001
New Genuine Part
|
90152-60001 |
— | ||
| replacement | |||||
|
9015260001
|
9015260001
93230-16020 New Genuine Part |
93230-16020 |
US $2.48 |
||
|
9015960273
|
9015960273
90159-60273 New Genuine Part |
90159-60273 |
US $1.46 |
||
|
9015960367
|
9015960367
90159-60367 Screw |
90159-60367 |
from US $0.90 |
||
|
9016460021
|
9016460021
90164-60021 SCREW BINDING |
90164-60021 |
from US $0.70 |
||
|
9018906078
|
9018906078
90189-06078
New Genuine Part
|
90189-06078 |
— | ||
|
9046805047
|
9046805047
90468-05047 CLIP |
90468-05047 |
US $1.44 |
||
|
9046805118
|
9046805118
90468-05118 New Genuine Part |
90468-05118 |
US $0.73 |
||
|
9353045020
|
9353045020
93530-45020 SCREW |
93530-45020 |
from US $1.76 |
||
