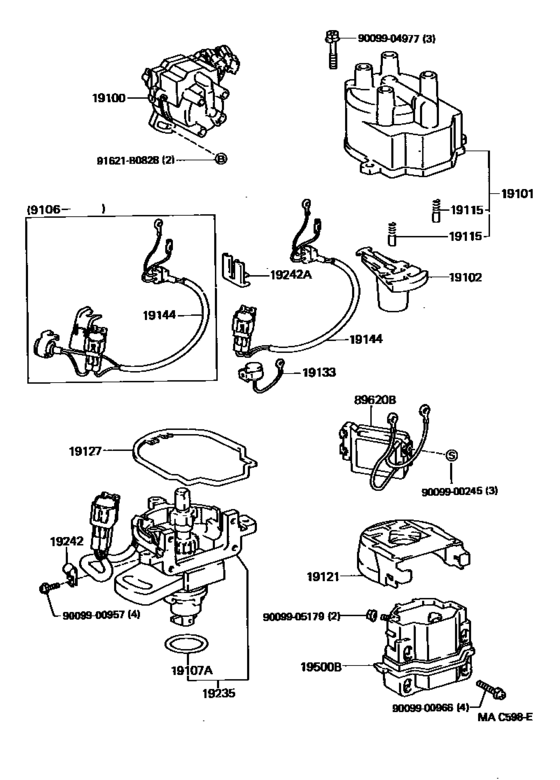

Distributor ([12.1989 - ] (8912- )2EE) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19020-11200 Distributor Assy[12.1989 - 06.1991] 2EE..EP81..5F |
19020-11200 |
US $1,355.54 |
||
|
19100
|
19100
19020-11350 Distributor Assy[06.1991 - 01.1996] 2EE..EP81 |
19020-11350 |
US $1,324.96 |
||
|
19101
|
19101
19101-11010 Cap Sub-Assy, Distributor[12.1989 - 06.1991] 2E..EP81;2EE..EP81..5F |
19101-11010 |
US $38.15 |
||
|
19101
|
19101
19101-11300
Cap Sub-Assy, Distributor
[06.1991 - 01.1992] 2EE..EP81 |
19101-11300 |
— | ||
|
19102
|
19102
19102-11031
Rotor Sub-Assy, Distributor
[12.1989 - 12.1991] 2E..EP81;2EE..EP81..3FC,5F |
19102-11031 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-16010 Rotor Sub-Assy, Distributor[12.1989 - 12.1991] 2E..EP81;2EE..EP81..3FC,5F |
19102-16010 |
from US $8.96 |
||
|
19102
|
19102
19102-16010 Rotor Sub-Assy, Distributor[12.1991 - 01.1992] 2EE..EP81 |
19102-16010 |
from US $8.96 |
||
|
19107A
|
19107A
90099-14091 O-Ring, Distributor Housing[12.1989 - 03.1991] 2EE..EP81..5F |
90099-14091 |
from US $3.32 |
||
|
19107A
|
19107A
90099-14127 Ring, O, Distributor Housing[08.1995 - 01.1996] 2EE..EP81 |
90099-14127 |
from US $3.69 |
||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[12.1989 - 01.1992] 2E..EP81;2EE..EP81..3FC,5F |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-11080 Cover, Dust Proof[12.1989 - 01.1992] 2E..EP81;2EE..EP81..3FC,5F |
19121-11080 |
from US $4.02 |
||
|
19127
|
19127
19127-15120 Packing, Dust Proof[12.1989 - 01.1992] 2E..EP81;2EE..EP81..3FC,5F |
19127-15120 |
from US $3.43 |
||
|
19133
|
19133
19133-11200 Condenser, DistributorDISTRIBUTOR [06.1991 - 08.1991] 2EE..EP81 |
19133-11200 |
US $9.61 |
||
| replacement | |||||
|
19133
|
19133
19133-16240 Condenser, Distributor[06.1991 - 08.1991] 2EE..EP81 |
19133-16240 |
from US $6.63 |
||
|
19133
|
19133
19133-16240 Condenser, Distributor[08.1991 - 01.1996] 2EE..EP81 |
19133-16240 |
from US $6.63 |
||
|
19144
|
19144
19144-11200
Lead, Distributor Breaker
[12.1989 - 06.1991] 2EE..EP81..5F |
19144-11200 |
— | ||
|
19144
|
19144
19144-11340
Lead, Distributor Breaker
[06.1991 - 01.1996] 2EE..EP81 |
19144-11340 |
— | ||
|
19235
|
19235
19235-11190 Housing, Distributor[12.1989 - 06.1991] 2EE..EP81..5F |
19235-11190 |
US $291.20 |
||
|
19235
|
19235
19235-11350 Housing, DistributorDISTRIBUTOR [06.1991 - 08.1991] 2EE..EP81 |
19235-11350 |
US $187.82 |
||
|
19235
|
19235
19235-11360 Housing, DistributorDISTRIBUTOR [08.1991 - 09.1991] 2EE..EP81 |
19235-11360 |
US $291.20 |
||
| replacement | |||||
|
19235
|
19235
19235-11350 Housing, DistributorDISTRIBUTOR [08.1991 - 09.1991] 2EE..EP81 |
19235-11350 |
US $187.82 |
||
|
19242
|
19242
19242-11190 Clamp, Cord[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
19242-11190 |
US $14.71 |
||
|
19242A
|
19242A
19242-11350 Clamp, Cord[06.1991 - 01.1996] 2EE..EP81 |
19242-11350 |
US $14.27 |
||
|
19500B
|
19500B
90919-02164 Coil Assy, Ignition[12.1989 - 01.1992] 2E..EP81;2EE..EP81..3FC,5F |
90919-02164 |
from US $121.10 |
||
|
89620B
|
89620B
89620-12410 Igniter Assy[12.1989 - 01.1992] EP81..EFI |
89620-12410 |
US $352.35 |
||
| replacement | |||||
|
89620B
|
89620B
89620-12440 Igniter Assy[12.1989 - 01.1992] EP81..EFI |
89620-12440 |
US $396.61 |
||
|
89620B
|
89620B
89620-12440 Igniter Assy[01.1992 - 01.1996] EP81..EFI |
89620-12440 |
US $396.61 |
||
|
91621B0828
|
91621B0828
91621-B0828
New Genuine Part
|
91621-B0828 |
— | ||
| replacement | |||||
|
91621B0828
|
91621B0828
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
9009900245
|
9009900245
90099-00245
New Genuine Part
|
90099-00245 |
— | ||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009900966
|
9009900966
90099-00966
New Genuine Part
|
90099-00966 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
