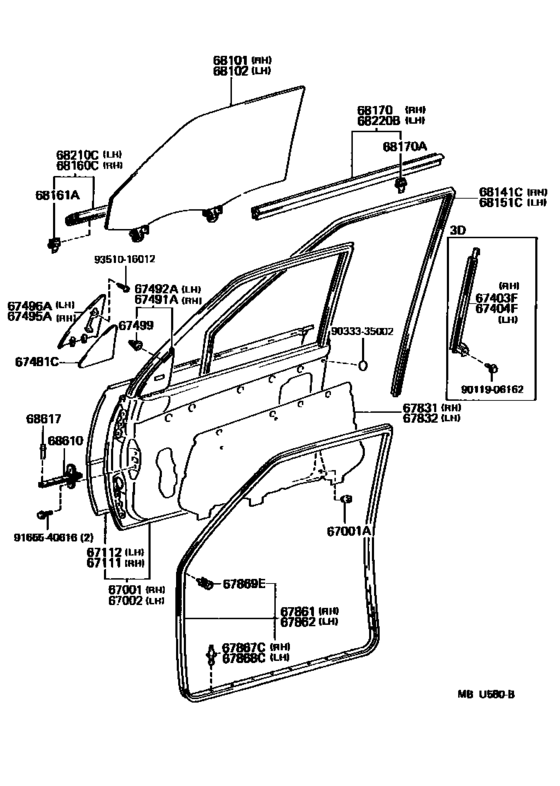

Front Door Panel & Glass ([12.1989 - ] (8912- )) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-10380 Panel Sub-Assy, Front Door, Rh[12.1989 - 01.1990] EP8#,NP80..3D |
67001-10380 |
US $860.50 |
||
| replacements | |||||
|
67001
|
67001
67001-10392 Panel Sub-Assy, Front Door, Rh[12.1989 - 01.1990] EP8#,NP80..3D |
67001-10392 |
US $892.53 |
||
|
67001
|
67001
90950-01345 New Genuine Part[12.1989 - 01.1990] EP8#,NP80..3D |
90950-01345 |
US $6.40 |
||
|
67001
|
67001
67001-10381 Panel Sub-Assy, Front Door, Rh[01.1990 - 01.1992] EP8#,NP80..3D |
67001-10381 |
US $853.22 |
||
| replacements | |||||
|
67001
|
67001
67001-10392 Panel Sub-Assy, Front Door, Rh[01.1990 - 01.1992] EP8#,NP80..3D |
67001-10392 |
US $892.53 |
||
|
67001
|
67001
90950-01345 New Genuine Part[01.1990 - 01.1992] EP8#,NP80..3D |
90950-01345 |
US $6.40 |
||
|
67001
|
67001
67001-10382 Panel Sub-Assy, Front Door, Rh[01.1992 - 01.1996] EP8#,NP80..3D |
67001-10382 |
US $892.53 |
||
| replacements | |||||
|
67001
|
67001
67001-10392 Panel Sub-Assy, Front Door, Rh[01.1992 - 01.1996] EP8#,NP80..3D |
67001-10392 |
US $892.53 |
||
|
67001
|
67001
90950-01429 PLUG[01.1992 - 01.1996] EP8#,NP80..3D |
90950-01429 |
US $1.76 |
||
|
67001
|
67001
67001-10390 Panel Sub-Assy, Front Door, Rh[12.1989 - 01.1990] EP80..LHD..3D..4F..XL W(POWER DOOR LOCK); EP80..RHD..4F;EP81,NP80..3D..(XL,XLI) W(POWER DOOR LOCK); EP80..3D..5F..XL W(POWER DOOR LOCK); EP80..GL W(*PW) OR W(POWER DOOR LOCK) OR W(ELECTRIC REMOTE CONTROL DOOR MIRROR); EP81..S,SI W(*PW) |
67001-10390 |
US $860.50 |
||
| replacement | |||||
|
67001
|
67001
67001-10392 Panel Sub-Assy, Front Door, Rh[12.1989 - 01.1990] EP80..LHD..3D..4F..XL W(POWER DOOR LOCK); EP80..RHD..4F;EP81,NP80..3D..(XL,XLI) W(POWER DOOR LOCK); EP80..3D..5F..XL W(POWER DOOR LOCK); EP80..GL W(*PW) OR W(POWER DOOR LOCK) OR W(ELECTRIC REMOTE CONTROL DOOR MIRROR); EP81..S,SI W(*PW) |
67001-10392 |
US $892.53 |
||
|
67001
|
67001
67001-10391 Panel Sub-Assy, Front Door, Rh[01.1990 - 01.1992] EP80..LHD..3D..4F..XL W(POWER DOOR LOCK); EP80..3D..5F..XL W(POWER DOOR LOCK); EP80..RHD..4F;EP81,NP80..3D..(XL,XLI) W(POWER DOOR LOCK); EP80..GL W(*PW) OR W(POWER DOOR LOCK) OR W(ELECTRIC REMOTE CONTROL DOOR MIRROR); EP81..S,SI W(*PW) |
67001-10391 |
US $853.22 |
||
| replacement | |||||
|
67001
|
67001
67001-10392 Panel Sub-Assy, Front Door, Rh[01.1990 - 01.1992] EP80..LHD..3D..4F..XL W(POWER DOOR LOCK); EP80..3D..5F..XL W(POWER DOOR LOCK); EP80..RHD..4F;EP81,NP80..3D..(XL,XLI) W(POWER DOOR LOCK); EP80..GL W(*PW) OR W(POWER DOOR LOCK) OR W(ELECTRIC REMOTE CONTROL DOOR MIRROR); EP81..S,SI W(*PW) |
67001-10392 |
US $892.53 |
||
|
67001
|
67001
67001-10392 Panel Sub-Assy, Front Door, Rh[01.1992 - 01.1996] EP8#,NP80..3D..(S,SI,XL,XLI) W(POWER DOOR LOCK) |
67001-10392 |
US $892.53 |
||
|
67001A
|
67001A
90541-09064 Cushion, Front Door Panel[12.1989 - 01.1996] EP8#,NP80 |
90541-09064 |
US $3.20 |
||
|
67002
|
67002
67002-10380 Panel Sub-Assy, Front Door, Lh[12.1989 - 01.1990] EP8#,NP80..3D..(GL,S,STD,XL,XLI); EP81..SI W(COLORED BUMPER); EP80..3D..5F..XL W(COLORED MOULDING & LEVER REMOTE CONTROL DOOR MIRROR) |
67002-10380 |
US $860.50 |
||
| replacements | |||||
|
67002
|
67002
67002-10392 Panel Sub-Assy, Front Door, Lh[12.1989 - 01.1990] EP8#,NP80..3D..(GL,S,STD,XL,XLI); EP81..SI W(COLORED BUMPER); EP80..3D..5F..XL W(COLORED MOULDING & LEVER REMOTE CONTROL DOOR MIRROR) |
67002-10392 |
US $892.53 |
||
|
67002
|
67002
90950-01345 New Genuine Part[12.1989 - 01.1990] EP8#,NP80..3D..(GL,S,STD,XL,XLI); EP81..SI W(COLORED BUMPER); EP80..3D..5F..XL W(COLORED MOULDING & LEVER REMOTE CONTROL DOOR MIRROR) |
90950-01345 |
US $6.40 |
||
|
67002
|
67002
67002-10381 Panel Sub-Assy, Front Door, Lh[01.1990 - 01.1992] EP8#,NP80..3D..(GL,S,STD,XL,XLI); EP81..SI W(COLORED BUMPER); EP80..3D..5F..XL W(COLORED MOULDING & LEVER REMOTE CONTROL DOOR MIRROR) |
67002-10381 |
US $853.22 |
||
| replacements | |||||
|
67002
|
67002
67002-10392 Panel Sub-Assy, Front Door, Lh[01.1990 - 01.1992] EP8#,NP80..3D..(GL,S,STD,XL,XLI); EP81..SI W(COLORED BUMPER); EP80..3D..5F..XL W(COLORED MOULDING & LEVER REMOTE CONTROL DOOR MIRROR) |
67002-10392 |
US $892.53 |
||
|
67002
|
67002
90950-01345 New Genuine Part[01.1990 - 01.1992] EP8#,NP80..3D..(GL,S,STD,XL,XLI); EP81..SI W(COLORED BUMPER); EP80..3D..5F..XL W(COLORED MOULDING & LEVER REMOTE CONTROL DOOR MIRROR) |
90950-01345 |
US $6.40 |
||
|
67002
|
67002
67002-10382 Panel Sub-Assy, Front Door, Lh[01.1992 - 01.1996] EP8#,NP80..3D |
67002-10382 |
US $892.53 |
||
| replacements | |||||
|
67002
|
67002
67002-10392 Panel Sub-Assy, Front Door, Lh[01.1992 - 01.1996] EP8#,NP80..3D |
67002-10392 |
US $892.53 |
||
|
67002
|
67002
90950-01429 PLUG[01.1992 - 01.1996] EP8#,NP80..3D |
90950-01429 |
US $1.76 |
||
|
67002
|
67002
67002-10391 Panel Sub-Assy, Front Door, Lh[12.1989 - 01.1992] EP81..S,SI W(*PW) OR W(POWER DOOR LOCK); EP80..GL W(*PW & COLORED SIDE MOULDING);W(POWER DOOR LOCK) OR W(ELECTRIC REMOTE CONTROL DOO R MIRROR) OR W(COLORED BUMPER & *PW) |
67002-10391 |
US $853.22 |
||
| replacement | |||||
|
67002
|
67002
67002-10392 Panel Sub-Assy, Front Door, Lh[12.1989 - 01.1992] EP81..S,SI W(*PW) OR W(POWER DOOR LOCK); EP80..GL W(*PW & COLORED SIDE MOULDING);W(POWER DOOR LOCK) OR W(ELECTRIC REMOTE CONTROL DOO R MIRROR) OR W(COLORED BUMPER & *PW) |
67002-10392 |
US $892.53 |
||
|
67002
|
67002
67002-10392 Panel Sub-Assy, Front Door, Lh[01.1992 - 01.1996] EP8#,NP80..3D..(S,SI,XL,XLI) W(POWER DOOR LOCK) |
67002-10392 |
US $892.53 |
||
|
67111
|
67111
67111-10250 Panel, Front Door, Outer Rh[12.1989 - 01.1990] EP8#,NP80..3D |
67111-10250 |
US $349.44 |
||
| replacement | |||||
|
67111
|
67111
67111-10251 Panel, Front Door, Outer Rh[12.1989 - 01.1990] EP8#,NP80..3D |
67111-10251 |
US $346.53 |
||
|
67111
|
67111
67111-10251 Panel, Front Door, Outer Rh[01.1990 - 01.1996] EP8#,NP80..3D |
67111-10251 |
US $346.53 |
||
|
67112
|
67112
67112-10250 Panel, Front Door, Outer Lh[12.1989 - 01.1990] EP8#,NP80..3D..(GL,S,STD,XL,XLI); EP81..SI W(COLORED BUMPER); EP80..3D..5F..XL W(COLORED SIDE MOULDING & LEVER REMOTE CONTROL DOOR MIRROR) |
67112-10250 |
US $349.44 |
||
| replacement | |||||
|
67112
|
67112
67112-10251 Panel, Front Door, Outer Lh[12.1989 - 01.1990] EP8#,NP80..3D..(GL,S,STD,XL,XLI); EP81..SI W(COLORED BUMPER); EP80..3D..5F..XL W(COLORED SIDE MOULDING & LEVER REMOTE CONTROL DOOR MIRROR) |
67112-10251 |
US $346.53 |
||
|
67112
|
67112
67112-10251 Panel, Front Door, Outer Lh[12.1989 - 01.1990] EP81..S,SI W(*PW) OR W(POWER DOOR LOCK); EP80..GL W(*PW & COLORED SIDE MOULDING);W(POWER DOOR LOCK) OR (ELECTRIC REMOTE CONTROL DOOR MIRROR) OR W(COL0RED BUMPER & *PW); EP8#,NP80..3D..(XL,XLI) W(COLORED BUMPER & *PW) OR (SIDE PROTECTI0 |
67112-10251 |
US $346.53 |
||
|
67403F
|
67403F
67403-10070 Frame Sub-Assy, Front Door, Rear Lower RhFRONT DOOR, REAR LOWER RH [12.1989 - 01.1996] EP8#,NP80..3D |
67403-10070 |
US $23 |
||
|
67404F
|
67404F
67404-10070 Frame Sub-Assy, Front Door, Rear Lower LhFRONT DOOR, REAR LOWER LH [12.1989 - 01.1996] EP8#,NP80..3D |
67404-10070 |
US $23 |
||
|
67481C
|
67481C
67481-10040 Seal, Front Door Front Lower FrameFRONT DOOR FRONT LOWER FRAME [12.1989 - 05.1994] EP8#..GL,GLI,S,SI |
67481-10040 |
US $3.93 |
||
|
67491A
|
67491A
67491-10120 Garnish, Front Door Lower Frame Bracket, RhFRONT DOOR LOWER FRAME BRACKET, RH [12.1989 - 05.1994] EP8#..3D..(GL,GLI,S,SI); EP8#,NP80..3D..(XL,XLI) W(LEVER REMOTE CONTROL DOOR MIRROR) |
67491-10120 |
US $12.52 |
||
|
67492A
|
67492A
67492-10120 Garnish, Front Door Lower Frame Bracket, LhFRONT DOOR LOWER FRAME BRACKET, LH [12.1989 - 05.1994] EP8#..3D..(GL,GLI,S,SI); EP8#,NP80..3D..(XL,XLI) W(LEVER REMOTE CONTROL DOOR MIRROR) |
67492-10120 |
US $12.52 |
||
|
67499
|
67499
67499-32010
Retainer, Front Door Lower Frame Bracket Garnish
[12.1989 - 01.1996] EP8#,NP80 |
67499-32010 |
— | ||
|
67831
|
67831
67831-10130 Cover, Front Door Service Hole, Rh[12.1989 - 01.1996] EP8#,NP80..3D |
67831-10130 |
US $5.24 |
||
|
67832
|
67832
67831-10130 Cover, Front Door Service Hole, Rh[12.1989 - 01.1996] EP8#,NP80..3D |
67831-10130 |
US $5.24 |
||
|
67861
|
67861
67861-10150 Weatherstrip, Front Door, RhFRONT DOOR, RH [12.1989 - 02.1990] EP8#,NP80..3D |
67861-10150 |
US $116.48 |
||
| replacement | |||||
|
67861
|
67861
67861-10200 Weatherstrip, Front Door, RhFRONT DOOR, RH [12.1989 - 02.1990] EP8#,NP80..3D |
67861-10200 |
US $113.57 |
||
|
67861
|
67861
67861-10200 Weatherstrip, Front Door, RhFRONT DOOR, RH [02.1990 - 01.1996] EP8#,NP80..3D |
67861-10200 |
US $113.57 |
||
|
67862
|
67862
67862-10150 Weatherstrip, Front Door, LhFRONT DOOR, LH [12.1989 - 02.1990] EP8#,NP80..3D |
67862-10150 |
US $116.48 |
||
| replacement | |||||
|
67862
|
67862
67862-10200 Weatherstrip, Front Door, LhFRONT DOOR, LH [12.1989 - 02.1990] EP8#,NP80..3D |
67862-10200 |
US $113.57 |
||
|
67862
|
67862
67862-10200 Weatherstrip, Front Door, LhFRONT DOOR, LH [02.1990 - 01.1996] EP8#,NP80..3D |
67862-10200 |
US $113.57 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[10.1994 - 01.1996] EP81,NP80..3D |
67867-12150 |
from US $1.60 |
||
|
67867C
|
67867C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[06.1991 - 10.1994] EP8#,NP80..3D |
67868-12050 |
from US $3.32 |
||
|
67867C
|
67867C
67868-12080 Retainer, Front Door Weatherstrip, Rh[12.1989 - 06.1991] EP8#,NP80..3D |
67868-12080 |
US $3.49 |
||
| replacement | |||||
|
67867C
|
67867C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[12.1989 - 06.1991] EP8#,NP80..3D |
67868-12050 |
from US $3.32 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[10.1994 - 01.1996] EP81,NP80..3D |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[12.1989 - 10.1994] EP8#,NP80..3D |
67868-12050 |
from US $3.32 |
||
|
67869E
|
67869E
67869-12020 Clip, Door Glass Weatherstrip(For Front Door)[12.1989 - 01.1996] EP8#,NP80 |
67869-12020 |
US $2.62 |
||
|
68101
|
68101
68110-10220 Glass Sub-Assy, Front Door, Rh[12.1989 - 01.1996] EP8#,NP80..3D *TEM,T=3.5,CLEAR |
68110-10220 |
US $253.34 |
||
| replacement | |||||
|
68101
|
68101
68110-10230 Glass Sub-Assy, Front Door, RhFRONT DOOR, RH [12.1989 - 01.1996] EP8#,NP80..3D *TEM,T=3.5,CLEAR |
68110-10230 |
US $260.62 |
||
|
68101
|
68101
68110-10230 Glass Sub-Assy, Front Door, RhFRONT DOOR, RH [12.1989 - 05.1994] EP8#,NP80..3D *TT,T=3.5,BLUE |
68110-10230 |
US $260.62 |
||
|
68101
|
68101
68110-10300 Glass Sub-Assy, Front Door, Rh[12.1989 - 01.1996] EP8#..3D..(GL,GLI,S,SI) *TEM,T=3.5,CLEAR,W(POWER WINDOW) |
68110-10300 |
US $254.80 |
||
| replacement | |||||
|
68101
|
68101
68110-10310 Glass Sub-Assy, Front Door, RhFRONT DOOR, RH [12.1989 - 01.1996] EP8#..3D..(GL,GLI,S,SI) *TEM,T=3.5,CLEAR,W(POWER WINDOW) |
68110-10310 |
US $266.45 |
||
|
68101
|
68101
68110-10310 Glass Sub-Assy, Front Door, RhFRONT DOOR, RH [12.1989 - 05.1994] EP8#..3D..(GL,GLI,S,SI) *TT,T=3.5,BLUE,W(POWER WINDOW) |
68110-10310 |
US $266.45 |
||
|
68102
|
68102
68120-10230 Glass Sub-Assy, Front Door, Lh[12.1989 - 01.1996] EP8#,NP80..3D *TEM,T=3.5,CLEAR |
68120-10230 |
US $253.34 |
||
| replacement | |||||
|
68102
|
68102
68120-10240 Glass Sub-Assy, Front Door, LhFRONT DOOR, LH [12.1989 - 01.1996] EP8#,NP80..3D *TEM,T=3.5,CLEAR |
68120-10240 |
US $260.62 |
||
|
68102
|
68102
68120-10240 Glass Sub-Assy, Front Door, LhFRONT DOOR, LH [12.1989 - 05.1994] EP8#,NP80..3D *TT,T=3.5,BLUE |
68120-10240 |
US $260.62 |
||
|
68102
|
68102
68120-10310 Glass Sub-Assy, Front Door, Lh[12.1989 - 01.1996] EP8#..3D..(GL,GLI,S,SI) *TEM,T=3.5,CLEAR,W(POWER WINDOW) |
68120-10310 |
US $254.80 |
||
| replacement | |||||
|
68102
|
68102
68120-10320 Glass Sub-Assy, Front Door, LhFRONT DOOR, LH [12.1989 - 01.1996] EP8#..3D..(GL,GLI,S,SI) *TEM,T=3.5,CLEAR,W(POWER WINDOW) |
68120-10320 |
US $266.45 |
||
|
68102
|
68102
68120-10320 Glass Sub-Assy, Front Door, LhFRONT DOOR, LH [12.1989 - 05.1994] EP8#..3D..(GL,GLI,S,SI) *TT,T=3.5,BLUE,W(POWER WINDOW) |
68120-10320 |
US $266.45 |
||
|
68141C
|
68141C
68141-10160
Run, Front Door Glass, Rh
[12.1989 - 01.1992] EP8#,NP80..3D |
68141-10160 |
— | ||
| replacement | |||||
|
68141C
|
68141C
68141-10180
Run, Front Door Glass, Rh
[12.1989 - 01.1992] EP8#,NP80..3D |
68141-10180 |
— | ||
|
68141C
|
68141C
68141-10180
Run, Front Door Glass, Rh
[01.1992 - 01.1996] EP8#,NP80..3D |
68141-10180 |
— | ||
|
68151C
|
68151C
68151-10010
Run, Front Door Glass, Lh
[12.1989 - 01.1992] EP8#,NP80..3D |
68151-10010 |
— | ||
| replacement | |||||
|
68151C
|
68151C
68151-10030
Run, Front Door Glass, Lh
[12.1989 - 01.1992] EP8#,NP80..3D |
68151-10030 |
— | ||
|
68151C
|
68151C
68151-10030
Run, Front Door Glass, Lh
[01.1992 - 01.1996] EP8#,NP80..3D |
68151-10030 |
— | ||
|
68160C
|
68160C
68160-10130
Weatherstrip Assy, Front Door Glass, Outer Rh
[12.1989 - 01.1990] EP8#,NP80..3D |
68160-10130 |
— | ||
| replacement | |||||
|
68160C
|
68160C
68160-10131
Weatherstrip Assy, Front Door Glass, Outer Rh
[12.1989 - 01.1990] EP8#,NP80..3D |
68160-10131 |
— | ||
|
68160C
|
68160C
68160-10131
Weatherstrip Assy, Front Door Glass, Outer Rh
[01.1990 - 01.1996] EP8#,NP80..3D |
68160-10131 |
— | ||
|
68161A
|
68161A
68211-10090
Clip(For Front Door Glass Outer Weatherstrip)
[12.1989 - 05.1994] EP8#,NP80..3D RH |
68211-10090 |
— | ||
| replacement | |||||
|
68161A
|
68161A
68212-10010 Clip(For Front Door Glass Outer Weatherstrip)[12.1989 - 05.1994] EP8#,NP80..3D RH |
68212-10010 |
US $3.49 |
||
|
68161A
|
68161A
68212-10010 Clip(For Front Door Glass Outer Weatherstrip)[12.1989 - 01.1996] EP8#,NP80..3D LH |
68212-10010 |
US $3.49 |
||
|
68170
|
68170
68171-10110
Weatherstrip Assy, Front Door Glass, Inner
[12.1989 - 01.1996] EP8#..3D..(GL,GLI,S,SI) |
68171-10110 |
— | ||
|
68210C
|
68210C
68210-10110
Weatherstrip Assy, Front Door Glass, Outer Lh
[12.1989 - 01.1990] EP8#,NP80..3D |
68210-10110 |
— | ||
| replacement | |||||
|
68210C
|
68210C
68210-10111
Weatherstrip Assy, Front Door Glass, Outer Lh
[12.1989 - 01.1990] EP8#,NP80..3D |
68210-10111 |
— | ||
|
68210C
|
68210C
68210-10111
Weatherstrip Assy, Front Door Glass, Outer Lh
[01.1990 - 01.1996] EP8#,NP80..3D |
68210-10111 |
— | ||
|
68220B
|
68220B
68172-10090
Weatherstrip Assy, Front Door Glass, Inner Lh
[12.1989 - 01.1996] EP8#..3D..(GL,GLI,S,SI) |
68172-10090 |
— | ||
|
68610
|
68610
68610-10040
Check Assy, Front Door
[12.1989 - 01.1992] EP8#,NP80..3D |
68610-10040 |
— | ||
|
68610
|
68610
68610-10060
Check Assy, Front Door
[01.1992 - 04.1992] EP8#,NP80..3D RH |
68610-10060 |
— | ||
|
68610
|
68610
68620-10020
Check Assy, Front Door
[01.1992 - 04.1992] EP8#,NP80..3D LH |
68620-10020 |
— | ||
| replacement | |||||
|
68610
|
68610
68610-10060
Check Assy, Front Door
[01.1992 - 04.1992] EP8#,NP80..3D LH |
68610-10060 |
— | ||
|
68617
|
68617
68617-12030 Pin, Front Door Check[12.1989 - 01.1996] EP8#,NP80 |
68617-12030 |
US $3.67 |
||
|
9011906162
|
9011906162
90119-06162
New Genuine Part
|
90119-06162 |
— | ||
| replacement | |||||
|
9011906162
|
9011906162
90119-06361 BOLT WWASHER |
90119-06361 |
from US $1.28 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9351016012
|
9351016012
93510-16012 Screw, Pillar Joint Setting |
93510-16012 |
US $2.33 |
||
