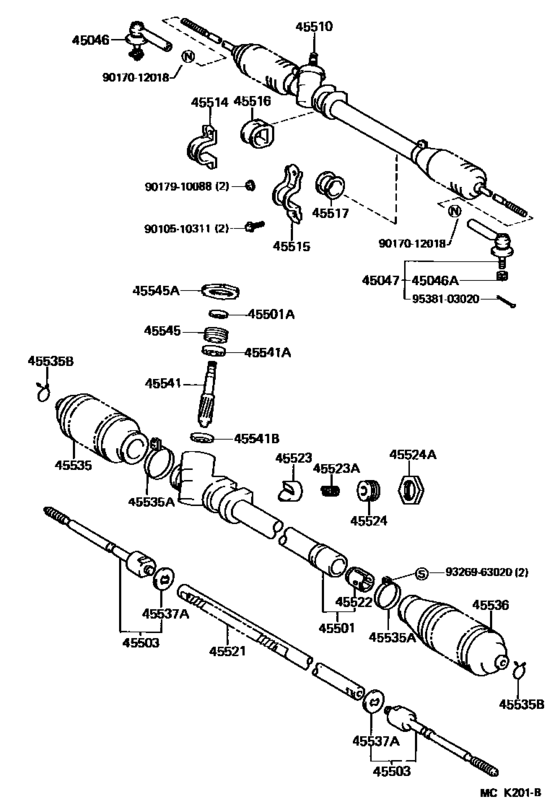

Front Steering Gear & Link ([12.1989 - 01.1992] MANUAL STEERING (8912-9201)) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-19205
End Sub-Assy, Tie Rod, Rh
[12.1989 - 01.1991] EP8#,NP80 |
45046-19205 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-19206 End Sub-Assy, Tie Rod[12.1989 - 01.1991] EP8#,NP80 |
45046-19206 |
from US $42.80 |
||
|
45046
|
45046
45046-19206 End Sub-Assy, Tie Rod[01.1991 - 01.1996] EP8#,NP80 |
45046-19206 |
from US $42.80 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[12.1989 - 01.1996] EP8#,NP80 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19205
End Sub-Assy, Tie Rod, Rh
[12.1989 - 01.1991] EP8#,NP80 |
45046-19205 |
— | ||
| replacement | |||||
|
45047
|
45047
45046-19206 End Sub-Assy, Tie Rod[12.1989 - 01.1991] EP8#,NP80 |
45046-19206 |
from US $42.80 |
||
|
45047
|
45047
45046-19206 End Sub-Assy, Tie Rod[01.1991 - 01.1996] EP8#,NP80 |
45046-19206 |
from US $42.80 |
||
|
45501
|
45501
45501-10120 Housing Sub-Assy, Steering RackSTEERING RACK [12.1989 - 01.1992] EP8#,NP80..LHD |
45501-10120 |
US $141.23 |
||
|
45501
|
45501
45501-10130 Housing Sub-Assy, Steering RackSTEERING RACK [01.1992 - 01.1996] EP8#,NP80..LHD |
45501-10130 |
US $141.23 |
||
|
45501A
|
45501A
90311-15002 Seal, Oil(For Steering Bevel Gear Housing)[12.1989 - 01.1996] EP8#,NP80 |
90311-15002 |
from US $2.06 |
||
|
45503
|
45503
45503-19155
End Sub-Assy, Steering Rack
[12.1989 - 01.1995] EP8#,NP80 |
45503-19155 |
— | ||
| replacement | |||||
|
45503
|
45503
45503-19195 End Sub-Assy, Steering Rack[12.1989 - 01.1995] EP8#,NP80 |
45503-19195 |
US $74.95 |
||
|
45503
|
45503
45503-19195 End Sub-Assy, Steering Rack[01.1995 - 01.1996] EP81,NP80 |
45503-19195 |
US $74.95 |
||
|
45510
|
45510
45510-10140 Gear Assy, SteeringSTEERING [12.1989 - 01.1992] EP8#,NP80..LHD |
45510-10140 |
US $640.64 |
||
|
45510
|
45510
45510-10190 Gear Assy, SteeringSTEERING [01.1992 - 01.1996] EP8#,NP80..LHD |
45510-10190 |
US $640.64 |
||
| replacement | |||||
|
45510
|
45510
45510-10230
Gear Assy, Steering
[01.1992 - 01.1996] EP8#,NP80..LHD |
45510-10230 |
— | ||
|
45514
|
45514
45514-10050 Bracket, Steering Rack Housing, No.1[12.1989 - 01.1992] EP8#,NP80 |
45514-10050 |
US $8.30 |
||
|
45514
|
45514
45514-16050
Bracket, Steering Rack Housing, No.1
[01.1992 - 01.1996] EP8#,NP80 |
45514-16050 |
— | ||
|
45514
|
45514
45514-16060 Bracket, Steering Rack Housing, No.1[05.1994 - 01.1996] EP81 W(POWER STEERING) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[05.1994 - 01.1996] EP81 W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45514-16060 Bracket, Steering Rack Housing, No.1[05.1994 - 01.1996] EP81 W(POWER STEERING) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45515
|
45515
45514-16061 Bracket, Steering Rack Housing, No.1[05.1994 - 01.1996] EP81 W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45515-10050
Bracket, Steering Rack Housing, No.2
[12.1989 - 01.1996] EP8#,NP80 |
45515-10050 |
— | ||
|
45516
|
45516
45516-10040 Grommet, Steering Rack Housing, No.1[12.1989 - 08.1990] EP8#,NP80 |
45516-10040 |
US $10.48 |
||
|
45516
|
45516
45516-16050
Grommet, Steering Rack Housing, No.1
[08.1990 - 01.1996] EP8#,NP80 |
45516-16050 |
— | ||
|
45516
|
45516
45516-16060 Grommet, Steering Rack Housing, No.1[05.1994 - 01.1996] EP81 W(POWER STEERING) |
45516-16060 |
from US $21.43 |
||
|
45517
|
45517
45517-10070 Grommet, Steering Rack Housing, No.2[05.1994 - 01.1996] EP81 W(POWER STEERING) |
45517-10070 |
US $17.63 |
||
|
45517
|
45517
45517-10080 Grommet, Steering Rack Housing, No.2[12.1989 - 01.1996] EP8#,NP80 |
45517-10080 |
US $13.10 |
||
|
45521
|
45521
45521-10130 Rack, SteeringSTEERING [12.1989 - 01.1996] EP8#,NP80..LHD |
45521-10130 |
US $84.45 |
||
|
45522
|
45522
45522-10050 Bush, Steering Rack[12.1989 - 01.1992] EP8#,NP80 |
45522-10050 |
US $28.13 |
||
|
45522
|
45522
45522-10080 Bush, Steering Rack[01.1992 - 01.1996] EP8#,NP80 |
45522-10080 |
from US $6.64 |
||
|
45523
|
45523
45504-10020 Guide, Rack(For Steering Gear)RACK(FOR STEERING GEAR) [01.1992 - 01.1996] EP8#,NP80 |
45504-10020 |
US $13.69 |
||
|
45523
|
45523
45523-10020 Guide, Rack(For Steering Gear)[12.1989 - 08.1990] EP8#,NP80 |
45523-10020 |
US $16.16 |
||
| replacements | |||||
|
45523
|
45523
45523-10041 Guide, Rack(For Steering Gear)RACK(FOR STEERING GEAR) [12.1989 - 08.1990] EP8#,NP80 |
45523-10041 |
US $21.84 |
||
|
45523
|
45523
45524-16040 Cap, Steering Rack Guide Spring[12.1989 - 08.1990] EP8#,NP80 |
45524-16040 |
US $7.13 |
||
|
45523
|
45523
90501-26042 Spring(For Power Steering Rack Guide)[12.1989 - 08.1990] EP8#,NP80 |
90501-26042 |
US $2.04 |
||
|
45523
|
45523
45523-10040 Guide, Rack(For Steering Gear)[08.1990 - 01.1992] EP8#,NP80 |
45523-10040 |
US $21.69 |
||
| replacement | |||||
|
45523
|
45523
45523-10041 Guide, Rack(For Steering Gear)RACK(FOR STEERING GEAR) [08.1990 - 01.1992] EP8#,NP80 |
45523-10041 |
US $21.84 |
||
|
45523
|
45523
45523-10090 Guide, Rack(For Steering Gear)RACK(FOR STEERING GEAR) [05.1994 - 01.1996] EP81..LHD W(POWER STEERING) |
45523-10090 |
US $19.95 |
||
|
45523A
|
45523A
90501-26038 Spring(For Power Steering Rack Guide)[12.1989 - 08.1990] EP8#,NP80 |
90501-26038 |
US $2.97 |
||
|
45523A
|
45523A
90501-26042 Spring(For Power Steering Rack Guide)[08.1990 - 01.1992] EP8#,NP80 |
90501-26042 |
US $2.04 |
||
|
45523A
|
45523A
90501-32032 Spring(For Steering Gear Rack Guide)[01.1992 - 01.1996] EP8#,NP80 |
90501-32032 |
US $3.35 |
||
|
45524
|
45524
45524-10020 Cap, Steering Rack Guide Spring[12.1989 - 08.1990] EP8#,NP80 |
45524-10020 |
US $7.72 |
||
|
45524
|
45524
45524-10040 Cap, Rack Guide Spring(For Power Steering)STEERING RACK GUIDE SPRING [05.1994 - 01.1996] EP81..LHD |
45524-10040 |
US $9.03 |
||
| replacement | |||||
|
45524
|
45524
45524-12041
Cap, Steering Rack Guide Spring
[05.1994 - 01.1996] EP81..LHD |
45524-12041 |
— | ||
|
45524
|
45524
45524-16040 Cap, Steering Rack Guide Spring[08.1990 - 01.1992] EP8#,NP80 |
45524-16040 |
US $7.13 |
||
|
45524A
|
45524A
90179-30002 Nut(For Power Steering Rack Guide Cap)[12.1989 - 01.1992] EP8#,NP80 |
90179-30002 |
US $2.62 |
||
|
45535
|
45535
45535-10021 Boot, Steering Rack, No.1[12.1989 - 01.1996] EP8#,NP80 |
45535-10021 |
from US $25.68 |
||
|
45535
|
45535
45535-16010 Boot, Steering Rack, No.1STEERING RACK, NO.1 [05.1994 - 01.1996] EP81..LHD W(POWER STEERING) |
45535-16010 |
from US $25.68 |
||
|
45535A
|
45535A
90461-10273 Clamp(For Steering Rack Boot)[12.1989 - 01.1996] EP8#,NP80 NO.1,ID=41.5 |
90461-10273 |
from US $4.96 |
||
|
45535A
|
45535A
90461-10646 Clamp(For Steering Rack Boot)[12.1989 - 01.1996] EP8#,NP80 NO.2,ID=38.0 |
90461-10646 |
US $4.35 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[12.1989 - 01.1996] EP8#,NP80 |
90467-18003 |
from US $1.92 |
||
|
45536
|
45536
45535-16010 Boot, Steering Rack, No.1STEERING RACK, NO.1 [05.1994 - 01.1996] EP81..LHD W(POWER STEERING) |
45535-16010 |
from US $25.68 |
||
|
45536
|
45536
45536-10060 Boot, Steering Rack, No.2[12.1989 - 01.1996] EP8#,NP80 |
45536-10060 |
US $26.38 |
||
|
45537A
|
45537A
90214-12002
Washer, Claw(For Power Steering Rack End)
[12.1989 - 01.1996] EP8#,NP80 |
90214-12002 |
— | ||
|
45541
|
45541
45541-16071 Pinion, Steering[12.1989 - 01.1996] EP8#,NP80..LHD |
45541-16071 |
US $55.91 |
||
|
45541A
|
45541A
90363-15015 Bearing, Radial Ball(For Steering Pinion Upper)[12.1989 - 01.1996] EP8#,NP80 |
90363-15015 |
from US $12.23 |
||
|
45541B
|
45541B
90363-13004 Bearing, Radial Ball(For Steering Pinion Upper)[12.1989 - 01.1996] EP8#,NP80 |
90363-13004 |
from US $12.23 |
||
|
45545
|
45545
45545-10020 Screw, Pinion Bearing Adjusting[12.1989 - 01.1996] EP8#,NP80 |
45545-10020 |
US $14.56 |
||
|
45545A
|
45545A
90179-38001 Nut(For Pinion Bearing Adjusting Screw)[12.1989 - 01.1996] EP8#,NP80 |
90179-38001 |
US $8.91 |
||
|
9010510311
|
9010510311
90105-10311 New Genuine Part |
90105-10311 |
US $2.62 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.76 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
