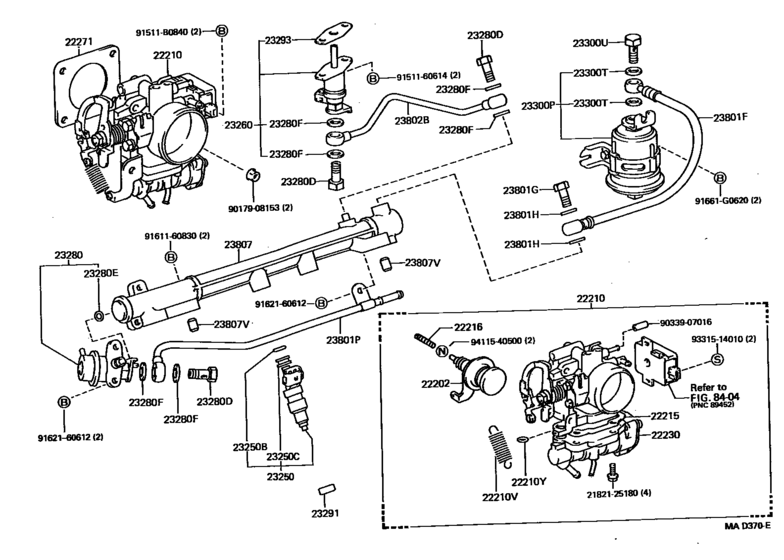

Fuel Injection System ([12.1989 - ] (8912- )2EE) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22202
|
22202
22202-11031 Dash Pot Sub-Assy(For Throttle Body)[12.1989 - 01.1996] 2EE..EP81..5F |
22202-11031 |
US $99.01 |
||
|
22210
|
22210
22210-11120 Body Assy, ThrottleTHROTTLE [12.1989 - 06.1991] 2EE..EP81..5F |
22210-11120 |
US $947.86 |
||
| replacement | |||||
|
22210
|
22210
22210-11121 Body Assy, Throttle[12.1989 - 06.1991] 2EE..EP81..5F |
22210-11121 |
US $947.86 |
||
|
22210
|
22210
22210-11300 Body Assy, ThrottleTHROTTLE [06.1991 - 01.1992] 2EE..EP81..5F |
22210-11300 |
US $947.86 |
||
| replacement | |||||
|
22210
|
22210
22210-11301 Body Assy, Throttle[06.1991 - 01.1992] 2EE..EP81..5F |
22210-11301 |
US $947.86 |
||
|
22210
|
22210
22210-11310 Body Assy, ThrottleTHROTTLE [01.1992 - 11.1993] 2EE..EP81..5F |
22210-11310 |
US $947.86 |
||
| replacement | |||||
|
22210
|
22210
22210-11311 Body Assy, ThrottleTHROTTLE [01.1992 - 11.1993] 2EE..EP81..5F |
22210-11311 |
US $947.86 |
||
|
22210
|
22210
22210-11311 Body Assy, ThrottleTHROTTLE [11.1993 - 01.1996] 2EE..EP81..5F |
22210-11311 |
US $947.86 |
||
|
22210V
|
22210V
90507-12021
Spring, Tension, W/damper (For Throttle Return)
[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
90507-12021 |
— | ||
|
22210Y
|
22210Y
96711-19009 Ring, O(For Oil Level Gage Guide)[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
96711-19009 |
from US $1.92 |
||
|
22215
|
22215
22215-11110 Gasket, Throttle Body Cover[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
22215-11110 |
from US $4.78 |
||
|
22216
|
22216
22216-74010
Screw, Dash Pot Adjusting
[12.1989 - 06.1991] 2EE..EP81..5F |
22216-74010 |
— | ||
|
22216
|
22216
22216-74311
Screw, Dash Pot Adjusting
[06.1991 - 01.1992] 2EE..EP81 NO.2 |
22216-74311 |
— | ||
| replacement | |||||
|
22216
|
22216
90079-13010 Screw, Dash Pot Adjusting[06.1991 - 01.1992] 2EE..EP81 NO.2 |
90079-13010 |
US $2.91 |
||
|
22216
|
22216
90079-13010 Screw, Dash Pot Adjusting[11.1993 - 01.1996] 2EE..EP81 |
90079-13010 |
US $2.91 |
||
|
22230
|
22230
22230-11090 Valve Assy, Auxiliary AirAUXILIARY AIR [12.1989 - 06.1991] 2EE..EP81..5F |
22230-11090 |
US $282.46 |
||
| replacement | |||||
|
22230
|
22230
22230-11091 Valve Assy, Auxiliary Air[12.1989 - 06.1991] 2EE..EP81..5F |
22230-11091 |
US $282.46 |
||
|
22230
|
22230
22230-11110
Valve Assy, Auxiliary Air
[06.1991 - 11.1993] 2EE..EP81 |
22230-11110 |
— | ||
| replacement | |||||
|
22230
|
22230
22230-11111
Valve Assy, Auxiliary Air
[06.1991 - 11.1993] 2EE..EP81 |
22230-11111 |
— | ||
|
22230
|
22230
22230-11111
Valve Assy, Auxiliary Air
[11.1993 - 01.1996] 2EE..EP81 |
22230-11111 |
— | ||
|
22271
|
22271
22271-11011 Gasket, Throttle Body[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
22271-11011 |
US $4.66 |
||
|
23250
|
23250
23209-11040 Injector Assy, Fuel[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
23209-11040 |
US $275.18 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[12.1989 - 01.1992] 2EE..EP81..3FC,5F |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[12.1989 - 01.1992] 2EE..EP81..3FC,5F |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-19066 Injector Assy, Cold Start Fuel[12.1989 - 06.1992] 2EE..EP81..3FC,5F |
23260-19066 |
US $136.86 |
||
|
23260
|
23260
23260-19067 Injector Assy, Cold Start FuelCOLD START FUEL [06.1992 - 01.1996] 2EE..EP81 |
23260-19067 |
US $136.86 |
||
|
23280
|
23280
23280-11030 Regulator Assy, Fuel PressureFUEL PRESSURE [12.1989 - 01.1996] 2EE..EP81..3FC,5F |
23280-11030 |
US $132.50 |
||
|
23280D
|
23280D
90401-08003 Bolt, Union[12.1989 - 05.1993] 2EE..EP81..3FC,5F |
90401-08003 |
US $2.24 |
||
|
23280D
|
23280D
90401-08004 Bolt Union(For Oil Jet)[05.1993 - 01.1996] 2EE..EP81 |
90401-08004 |
US $3.14 |
||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
90301-07001 |
from US $2.93 |
||
|
23280F
|
23280F
90430-08005 Gasket[12.1989 - 01.1992] 2EE..EP81..3FC,5F |
90430-08005 |
US $2.24 |
||
|
23280F
|
23280F
90430-08012 Gasket[01.1992 - 05.1993] 2EE..EP81 |
90430-08012 |
US $1.92 |
||
|
23280F
|
23280F
90430-08014 Gasket(For Oil Filter Outlet Pipe)[05.1993 - 01.1996] 2EE..EP81 |
90430-08014 |
from US $0.86 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
23291-41010 |
from US $2.77 |
||
|
23293
|
23293
23293-62020
Gasket(For Surge Tank Cover)
[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
23293-62020 |
— | ||
|
23300P
|
23300P
23300-19245 Filter, Fuel(For Efi)FUEL(FOR EFI) [12.1989 - 05.1994] 2EE..EP81..LHD..(3FC,5F) |
23300-19245 |
US $103.38 |
||
| replacement | |||||
|
23300P
|
23300P
23300-19415 Filter Assy, FuelFUEL [12.1989 - 05.1994] 2EE..EP81..LHD..(3FC,5F) |
23300-19415 |
US $103.38 |
||
|
23300P
|
23300P
23300-19246 Filter, Fuel(For Efi)FUEL(FOR EFI) [05.1994 - 01.1996] 2EE..EP81..LHD |
23300-19246 |
US $103.38 |
||
| replacement | |||||
|
23300P
|
23300P
23300-19415 Filter Assy, FuelFUEL [05.1994 - 01.1996] 2EE..EP81..LHD |
23300-19415 |
US $103.38 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[12.1989 - 05.1994] 2EE..EP81..3FC,5F |
90430-12005 |
from US $0.76 |
||
|
23300T
|
23300T
90430-12026 Gasket[05.1994 - 01.1996] 2EE..EP81 |
90430-12026 |
from US $0.94 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
90401-12097 |
from US $3.08 |
||
|
23801F
|
23801F
23271-10010 Hose, Fuel, No.1FUEL, NO.1 [12.1989 - 01.1996] 2EE..EP81..LHD..(3FC,5F) |
23271-10010 |
US $33.49 |
||
|
23801G
|
23801G
90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set)[07.1993 - 01.1996] 2EE..EP81 |
90401-12029 |
from US $8.04 |
||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[12.1989 - 07.1993] 2EE..EP81..3FC,5F |
90401-12097 |
from US $3.08 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[12.1989 - 01.1992] 2EE..EP81..3FC,5F |
90430-12005 |
from US $0.76 |
||
|
23801H
|
23801H
90430-12026 Gasket[01.1992 - 01.1996] 2EE..EP81 |
90430-12026 |
from US $0.94 |
||
|
23801P
|
23801P
23801-11040 Pipe Sub-Assy, Fuel, No.1[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
23801-11040 |
US $28.25 |
||
|
23802B
|
23802B
23802-11031 Pipe Sub-Assy, Fuel, No.2[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
23802-11031 |
US $26.35 |
||
|
23807
|
23807
23807-11030 Pipe Sub-Assy, Fuel Delivery[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
23807-11030 |
US $199.47 |
||
|
23807V
|
23807V
90561-08036 Spacer, No.1(For Delivery Pipe)[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
90561-08036 |
US $1.28 |
||
|
91511B0840
|
91511B0840
91511-B0840
Bolt(For Alternator)
|
91511-B0840 |
— | ||
| replacement | |||||
|
91511B0840
|
91511B0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
91661G0620
|
91661G0620
91661-G0620
New Genuine Part
|
91661-G0620 |
— | ||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
