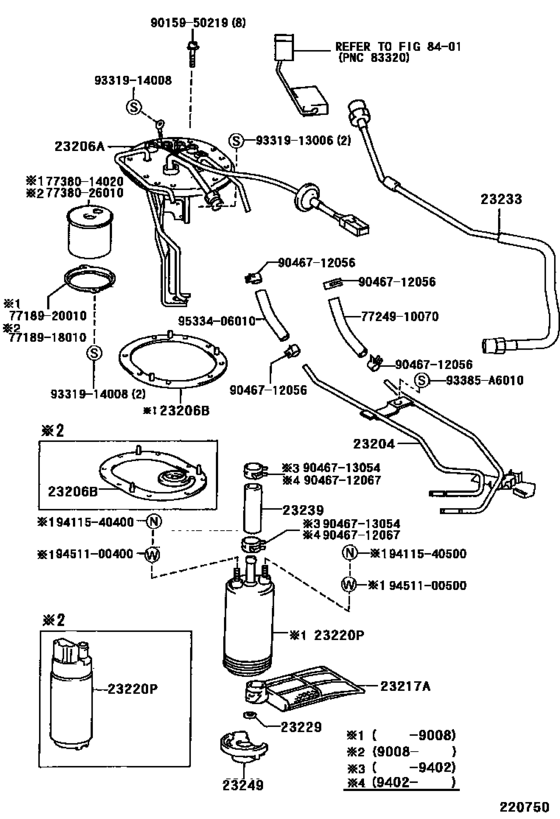

Fuel Injection System ([12.1989 - ] (8912- )2EE) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23204
|
23204
23204-11080 Tube Sub-Assy, Fuel Pump Return[12.1989 - 08.1990] 2EE..EP81..5F |
23204-11080 |
US $94.64 |
||
|
23204
|
23204
23204-11140 Tube Sub-Assy, Fuel Pump Return[08.1990 - 01.1996] 2EE..EP81 |
23204-11140 |
US $44.70 |
||
|
23206A
|
23206A
23206-11080 Bracket, Fuel Pump[12.1989 - 08.1990] 2EE..EP81..SI; 2EE..EP81..5F..XLI W(TACHO METER) |
23206-11080 |
US $107.74 |
||
| replacement | |||||
|
23206A
|
23206A
23206-11H00 Bracket, Fuel Pump[12.1989 - 08.1990] 2EE..EP81..SI; 2EE..EP81..5F..XLI W(TACHO METER) |
23206-11H00 |
US $113.57 |
||
|
23206A
|
23206A
23206-11160
Bracket, Fuel Pump
[08.1990 - 01.1996] 2EE..EP81..SI |
23206-11160 |
— | ||
| replacements | |||||
|
23206A
|
23206A
23206-11450
Tube Sub-Assy, Fuel Suction
[08.1990 - 01.1996] 2EE..EP81..SI |
23206-11450 |
— | ||
|
23206A
|
23206A
23239-74010
Hose, Fuel Pump
[08.1990 - 01.1996] 2EE..EP81..SI |
23239-74010 |
— | ||
|
23206B
|
23206B
77169-10020
Gasket, Fuel Pump Bracket
[12.1989 - 08.1990] 2EE..EP81..5F |
77169-10020 |
— | ||
|
23206B
|
23206B
77169-16030 Gasket, Fuel Pump Bracket[08.1990 - 01.1996] 2EE..EP81 |
77169-16030 |
US $8.32 |
||
|
23217A
|
23217A
23217-11010
Filter, Fuel Pump
[12.1989 - 08.1990] 2EE..EP81..5F |
23217-11010 |
— | ||
|
23217A
|
23217A
23217-11020
Filter, Fuel Pump
[08.1990 - 03.1994] 2EE..EP81 |
23217-11020 |
— | ||
|
23217A
|
23217A
23217-16490 Filter, Fuel Pump[03.1994 - 01.1996] 2EE..EP81 AISAN |
23217-16490 |
from US $11.19 |
||
|
23220P
|
23220P
23220-43070 Pump Assy, Fuel[12.1989 - 08.1990] 2EE..EP81..5F |
23220-43070 |
US $534.80 |
||
|
23220P
|
23220P
23220-74020
Pump Assy, Fuel
[03.1994 - 01.1996] 2EE..EP81 AISAN |
23220-74020 |
— | ||
| replacements | |||||
|
23220P
|
23220P
23217-0D070 Filter, Fuel Pump[03.1994 - 01.1996] 2EE..EP81 AISAN |
23217-0D070 |
from US $8.07 |
||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[03.1994 - 01.1996] 2EE..EP81 AISAN |
23221-28280 |
from US $421.47 |
||
|
23220P
|
23220P
23229-16010 Clip(For Fuel Pump Filter)[03.1994 - 01.1996] 2EE..EP81 AISAN |
23229-16010 |
from US $0.84 |
||
|
23220P
|
23220P
23221-46010 Pump Assy, Fuel[08.1990 - 03.1994] 2EE..EP81 |
23221-46010 |
from US $324.91 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[12.1989 - 03.1994] 2EE..EP81..3FC,5F |
23229-16010 |
from US $0.84 |
||
|
23233
|
23233
23091-11040 Hose, Fuel Pump[01.1992 - 05.1992] 2EE..EP81 |
23091-11040 |
US $110.66 |
||
| replacement | |||||
|
23233
|
23233
23091-11090
Hose, Fuel Pump
[01.1992 - 05.1992] 2EE..EP81 |
23091-11090 |
— | ||
|
23233
|
23233
23091-11050 Hose, Fuel Pump[12.1989 - 01.1992] 2EE..EP81..3FC,5F |
23091-11050 |
US $104.83 |
||
| replacement | |||||
|
23233
|
23233
23091-11090
Hose, Fuel Pump
[12.1989 - 01.1992] 2EE..EP81..3FC,5F |
23091-11090 |
— | ||
|
23233
|
23233
23091-11090
Hose, Fuel Pump
[11.1994 - 01.1996] 2EE..EP81..SI; 2EE..EP81..XLI |
23091-11090 |
— | ||
|
23239
|
23239
23239-11010 Hose, Fuel Pump[02.1994 - 01.1996] 2EE..EP81 |
23239-11010 |
US $10.88 |
||
|
23239
|
23239
23239-63010 Hose, Fuel Pump[12.1989 - 02.1994] 2EE..EP81..3FC,5F |
23239-63010 |
from US $2.09 |
||
|
23249
|
23249
23249-74150 Rubber, Cushion(For Fuel Pump)[12.1989 - 08.1990] 2EE..EP81..5F |
23249-74150 |
US $17.63 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[08.1990 - 01.1996] 2EE..EP81 |
23249-74610 |
from US $8.56 |
||
|
93385A6010
|
93385A6010
93385-A6010 New Genuine Part |
93385-A6010 |
US $1.46 |
||
|
7718918010
|
7718918010
77189-18010 Retainer, Fuel Check Valve |
77189-18010 |
US $3.93 |
||
|
7718920010
|
7718920010
77189-20010
Retainer, Fuel Check Valve
|
77189-20010 |
— | ||
|
7724910070
|
7724910070
77249-10070
Hose, Fuel, No.2 (For Fuel Tank To Canister Tube)
|
77249-10070 |
— | ||
|
7738014020
|
7738014020
77380-14020 Valve Assy, Fuel Cut Off |
77380-14020 |
US $18.85 |
||
|
7738026010
|
7738026010
77380-26010 Valve Assy, Fuel Cut Off |
77380-26010 |
from US $10.74 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.80 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9046712067
|
9046712067
90467-12067 Clip(For Fuel Pump Hose) |
90467-12067 |
from US $1.27 |
||
|
9046713054
|
9046713054
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
9046713054
|
9046713054
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9331913006
|
9331913006
93319-13006 New Genuine Part |
93319-13006 |
US $0.44 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.88 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9533406010
|
9533406010
95334-06010 Hose, Fuel |
95334-06010 |
from US $2.96 |
||
