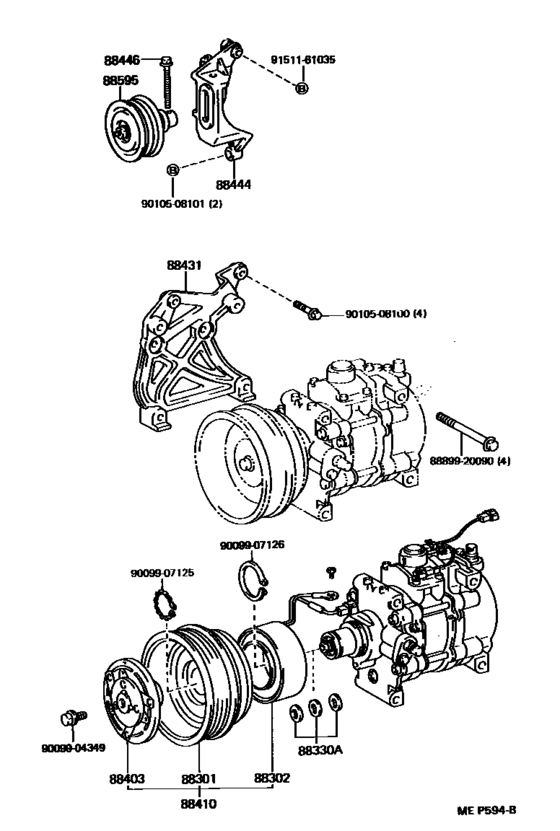

Heating & Air Conditioning - Compressor ([12.1989 - 01.1996] (8912-9601)) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-10150
Rotor Sub-Assy, Magnet Clutch
[01.1992 - 12.1993] EP8#..LHD |
88412-10150 |
— | ||
|
88301
|
88301
88412-16080
Rotor Sub-Assy, Magnet Clutch
[12.1993 - 01.1996] EP81..LHD |
88412-16080 |
— | ||
|
88302
|
88302
88411-16050
Stator Sub-Assy, Magnet Clutch
[01.1992 - 12.1993] EP8#..LHD |
88411-16050 |
— | ||
|
88302
|
88302
88411-1A040
Stator Sub-Assy, Magnet Clutch
[12.1993 - 01.1996] EP81..LHD |
88411-1A040 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[01.1992 - 01.1996] EP8#..LHD |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[01.1992 - 12.1993] EP8#..LHD |
88403-16011 |
US $82.47 |
||
|
88403
|
88403
88403-1A010
Hub Sub-Assy, Magnet Clutch
[12.1993 - 01.1996] EP81..LHD |
88403-1A010 |
— | ||
|
88410
|
88410
88410-10280 Clutch Assy, Magnet[12.1993 - 01.1996] EP81..LHD |
88410-10280 |
US $551.82 |
||
|
88410
|
88410
88410-16090 Clutch Assy, Magnet[01.1992 - 12.1993] EP8#..LHD |
88410-16090 |
US $554.74 |
||
|
88431
|
88431
88431-16060
Bracket, Compressor Mounting, No.1
[01.1992 - 01.1996] EP8#..LHD |
88431-16060 |
— | ||
|
88444
|
88444
88444-10031
Bracket, Idle Pulley
[01.1992 - 01.1996] EP81..LHD |
88444-10031 |
— | ||
|
88446
|
88446
88446-12030
Bolt, Idle Pulley
[01.1992 - 01.1996] EP8#..LHD |
88446-12030 |
— | ||
|
88595
|
88595
88440-16050
Pulley, Cooler Compressor Idle
[08.1994 - 01.1996] EP81..LHD |
88440-16050 |
— | ||
|
88595
|
88595
88440-17010 Pulley Assy, Idle[01.1992 - 08.1994] EP8#..LHD |
88440-17010 |
US $94.72 |
||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
US $4 |
||
|
9009907126
|
9009907126
90099-07126
New Genuine Part
|
90099-07126 |
— | ||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
US $1.44 |
||
|
9010508101
|
9010508101
90105-08101 New Genuine Part |
90105-08101 |
US $1.22 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $1.07 |
||
