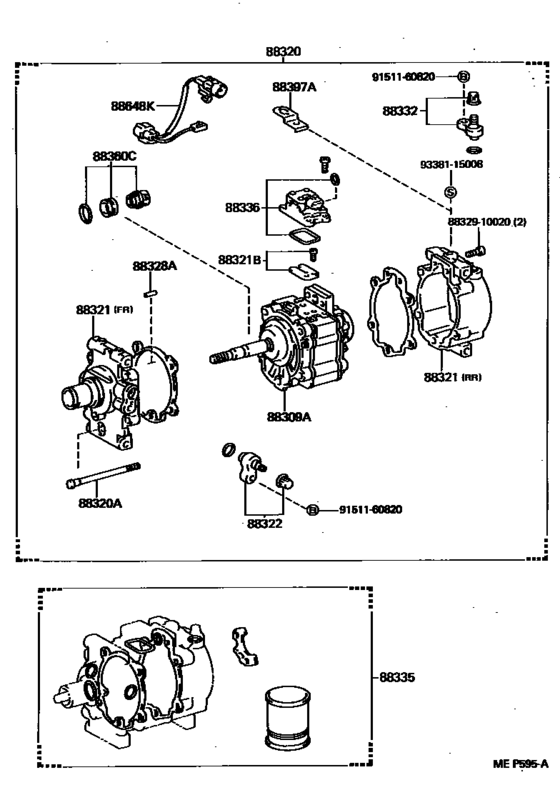

Heating & Air Conditioning - Compressor ([12.1989 - 01.1996] (8912-9601)) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88309A
|
88309A
88309-10070
Pump Sub-Assy, Compressor
[01.1992 - 12.1993] EP8#..LHD |
88309-10070 |
— | ||
|
88309A
|
88309A
88309-12080
Pump Sub-Assy, Compressor
[12.1993 - 01.1996] EP81..LHD |
88309-12080 |
— | ||
| replacements | |||||
|
88309A
|
88309A
88336-10070
Sensor, Compressor
[12.1993 - 01.1996] EP81..LHD |
88336-10070 |
— | ||
|
88309A
|
88309A
88309-12230
Pump Sub-Assy, Compressor
[12.1993 - 01.1996] EP81..LHD |
88309-12230 |
— | ||
|
88320
|
88320
88320-10280
Compressor Assy, Cooler
[01.1992 - 07.1992] EP8#..LHD |
88320-10280 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-10350
Compressor Assy, Cooler
[01.1992 - 07.1992] EP8#..LHD |
88320-10350 |
— | ||
|
88320
|
88320
88320-10350
Compressor Assy, Cooler
[07.1992 - 12.1993] EP8#..LHD |
88320-10350 |
— | ||
|
88320
|
88320
88320-10410
Compressor Assy, Cooler
[12.1993 - 01.1996] EP81..LHD |
88320-10410 |
— | ||
|
88320A
|
88320A
88329-16030
Bolt, Through
[05.1994 - 01.1996] EP81..LHD |
88329-16030 |
— | ||
|
88321
|
88321
88321-10060
Head, Cooler Compressor Cylinder
[01.1992 - 12.1993] EP8#..LHD FRONT |
88321-10060 |
— | ||
|
88321
|
88321
88321-12090
Head, Cooler Compressor Cylinder
[12.1993 - 01.1996] EP81..LHD FRONT |
88321-12090 |
— | ||
|
88321
|
88321
88322-12080
Head, Cooler Compressor Cylinder
[12.1993 - 01.1996] EP81..LHD REAR |
88322-12080 |
— | ||
|
88321
|
88321
88322-16030
Head, Cooler Compressor Cylinder
[01.1992 - 12.1993] EP8#..LHD REAR |
88322-16030 |
— | ||
|
88321B
|
88321B
88307-10010
Reed Sub-Assy, Valve
[01.1992 - 01.1996] EP8#..LHD |
88307-10010 |
— | ||
|
88322
|
88322
88376-12010 Cap, BlindBLIND [12.1993 - 01.1996] EP81..LHD |
88376-12010 |
US $6.18 |
||
|
88322
|
88322
88376-16020
Valve, Suction
[01.1992 - 12.1993] EP8#..LHD |
88376-16020 |
— | ||
|
88332
|
88332
88376-12020 Cap, BlindBLIND [12.1993 - 01.1996] EP81..LHD |
88376-12020 |
US $6.18 |
||
|
88332
|
88332
88376-16040
Cap, Blind
[01.1992 - 12.1993] EP8#..LHD |
88376-16040 |
— | ||
|
88335
|
88335
88335-10020
Gasket Kit, Overhaul
[01.1992 - 12.1993] EP8#..LHD |
88335-10020 |
— | ||
|
88335
|
88335
88335-12070
Gasket Kit, Overhaul
[12.1993 - 01.1996] EP81..LHD |
88335-12070 |
— | ||
|
88336
|
88336
88336-10020
Sensor, Compressor
[01.1992 - 01.1996] EP8#..LHD |
88336-10020 |
— | ||
|
88360C
|
88360C
88360-10020
Seal Assy, Shaft
[01.1992 - 12.1993] EP8#..LHD |
88360-10020 |
— | ||
|
88360C
|
88360C
88360-12090
Seal Assy, Shaft
[12.1993 - 01.1996] EP81..LHD |
88360-12090 |
— | ||
|
88397A
|
88397A
88397-16030
Clip, Compressor
[01.1992 - 01.1996] EP8#..LHD |
88397-16030 |
— | ||
|
88648K
|
88648K
88648-10220
Wire Sub-Assy, Sensor
[01.1992 - 12.1993] EP8#..LHD |
88648-10220 |
— | ||
|
88648K
|
88648K
88648-16180
Wire Sub-Assy, Sensor
[12.1993 - 01.1996] EP81..LHD |
88648-16180 |
— | ||
|
8832910020
|
8832910020
88329-10020
Bolt, Through
|
88329-10020 |
— | ||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9338115008
|
9338115008
93381-15008 SCREWWWASHER |
93381-15008 |
US $1.44 |
||
