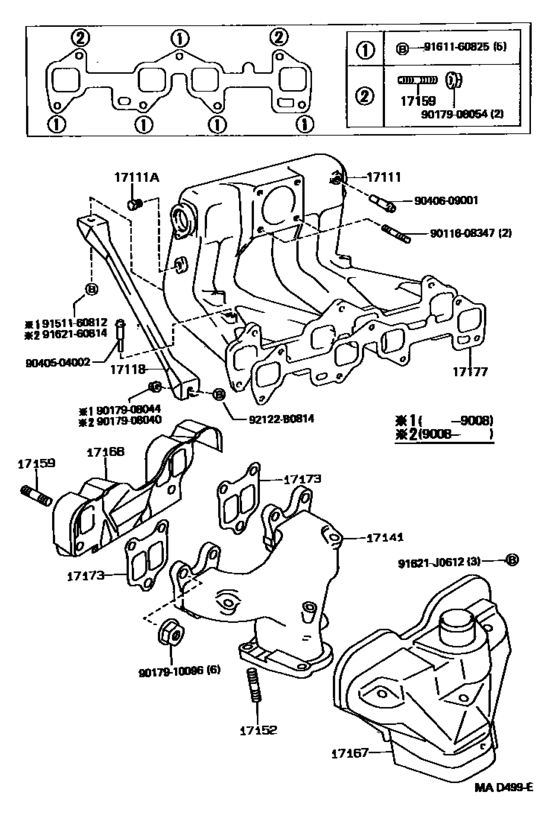

Manifold ([12.1989 - ] (8912- )2EE) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-11093 Manifold, Intake[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
17101-11093 |
US $285.38 |
||
|
17111A
|
17111A
90345-51006 Plug, W/head Taper Screw, No.2[12.1989 - 11.1990] 2EE..EP81..5F |
90345-51006 |
from US $0.96 |
||
|
17111A
|
17111A
90345-51008 Plug, W/head Taper Screw, No.1[11.1990 - 12.1992] 2EE..EP81 |
90345-51008 |
US $3.20 |
||
|
17118
|
17118
17118-11070 Stay, Manifold[12.1989 - 01.1996] 2EE..EP81..3FC,5F |
17118-11070 |
US $31.60 |
||
|
17141
|
17141
17141-10010
Manifold, Exhaust
[12.1989 - 01.1996] 1E..EP80;2EE..EP81..3FC,5F |
17141-10010 |
— | ||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[12.1989 - 01.1996] 1E..EP80;2EE..EP81..3FC,5F |
90116-10017 |
from US $2.92 |
||
|
17159
|
17159
90116-10131
Bolt, Stud(For Manifold To Cylinder Head)
[01.1994 - 01.1996] 2EE..EP81 EXHAUST MANIFOLD |
90116-10131 |
— | ||
|
17159
|
17159
92122-61028 Bolt, Stud(For Manifold To Cylinder Head)[12.1989 - 01.1994] 1E,2E..EP8#;2EE..EP81..3FC,5F EXHAUST MANIFOLD |
92122-61028 |
US $5.28 |
||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[12.1989 - 01.1996] 1E,2E..EP8#;2EE..EP81..3FC,5F INTAKE MANIFOLD |
92132-60825 |
US $3.20 |
||
|
17167
|
17167
17167-10020
Insulator, Exhaust Manifold Heat, No.1
[12.1989 - 11.1992] 2EE..EP81..3FC,5F |
17167-10020 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-10022
Insulator, Exhaust Manifold Heat, No.1
[12.1989 - 11.1992] 2EE..EP81..3FC,5F |
17167-10022 |
— | ||
|
17167
|
17167
17167-10021
Insulator, Exhaust Manifold Heat, No.1
[11.1992 - 05.1993] 2EE..EP81 |
17167-10021 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-10022
Insulator, Exhaust Manifold Heat, No.1
[11.1992 - 05.1993] 2EE..EP81 |
17167-10022 |
— | ||
|
17167
|
17167
17167-10022
Insulator, Exhaust Manifold Heat, No.1
[05.1993 - 01.1996] 2EE..EP81 |
17167-10022 |
— | ||
|
17168
|
17168
17168-10011 Insulator, Exhaust Manifold Heat, No.2[12.1989 - 01.1996] 1E,2E..EP8#;2EE..EP81..3FC,5F |
17168-10011 |
US $43.51 |
||
|
17173
|
17173
17173-10021 Gasket, Exhaust Manifold To Head[12.1989 - 01.1996] 1E,2E..EP8#;2EE..EP81..3FC,5F |
17173-10021 |
from US $8.95 |
||
|
17177
|
17177
17177-10011
Gasket, Intake Manifold To Head, No.1
[12.1989 - 04.1991] 1E,2E..EP8#;2EE..EP81..5F |
17177-10011 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-10020 Gasket, Intake Manifold To Head, No.1[12.1989 - 04.1991] 1E,2E..EP8#;2EE..EP81..5F |
17177-10020 |
from US $10.86 |
||
|
17177
|
17177
17177-10020 Gasket, Intake Manifold To Head, No.1[04.1991 - 01.1996] 1E,2E#..EP8# |
17177-10020 |
from US $10.86 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
92122B0814
|
92122B0814
92122-B0814 New Genuine Part |
92122-B0814 |
US $2.04 |
||
|
9011608347
|
9011608347
90116-08347 New Genuine Part |
90116-08347 |
US $1.31 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.60 |
||
|
9017910096
|
9017910096
90179-10096 New Genuine Part |
90179-10096 |
US $2.56 |
||
|
9040504002
|
9040504002
90405-04002
Union, Vacuum Hose
|
90405-04002 |
— | ||
|
9040609001
|
9040609001
90406-09001 Union(For Positive Crankcase Ventilation) |
90406-09001 |
US $2.62 |
||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9162160814
|
9162160814
91621-60814
Bolt (For Transmission Control Cable Bracket)
|
91621-60814 |
— | ||
| replacement | |||||
|
9162160814
|
9162160814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.82 |
||
