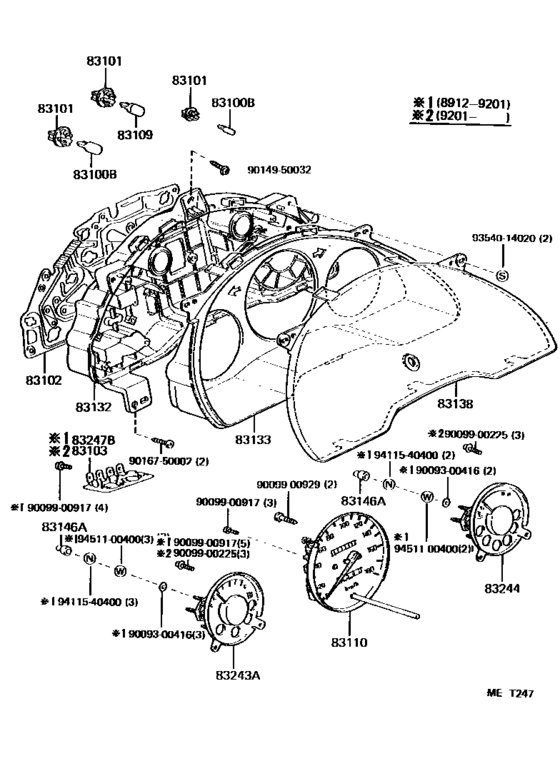

Meter ([12.1989 - 01.1996] W/O(TACHOMETER) (8912-9601)) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[01.1992 - 01.1996] EP81..S,SI 14V 3.0W; EP81..GLI,XL,XLI 14V 3.0W |
83119-32010 |
from US $2.32 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[12.1989 - 01.1992] EP81..LHD..(GL,XL) 12V 1.2W W/O SOCKET; EP80..LHD..XL 12V 1.2W W/O SOCKET; NP80;EP8#..S,SI,STD,XLI 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[12.1989 - 01.1992] EP81..SI 12V 3.4W; EP81..LHD..(GL,XL) 12V 3.4W; EP81..S 12V 3.4W; EP81..XLI 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[12.1989 - 01.1992] EP81..SI 12V 3.4W; EP81..LHD..(GL,XL) 12V 3.4W; EP81..S 12V 3.4W; EP81..XLI 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[01.1992 - 01.1996] EP81..S,SI BULB:12V 3.4W; EP81..GLI,XL,XLI BULB:12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[12.1989 - 01.1992] EP80..STD 12V 1.4W; EP81..LHD..(GL,XL) BULB:12V 1.4W; EP80..LHD..XL BULB:12V 1.4W; NP80;EP81..S,SI,STD,XLI BULB:12V 1.4W |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-24010 Socket Sub-Assy, Combination Meter Bulb[01.1992 - 01.1996] EP81..S,SI BULB:14V 3.0W; EP81..GLI,XL,XLI BULB:14V 3.0W |
83101-24010 |
US $2.57 |
||
|
83102
|
83102
83149-10190
Plate Sub-Assy, Combination Meter Circuit, No.1
[12.1989 - 01.1992] EP81..SI; EP81..(3FC,5F)..XLI W(*66 & *TAC & ECONO METER) OR W(*TAC & ECONO METER) |
83149-10190 |
— | ||
|
83102
|
83102
83149-10690
Plate Sub-Assy, Combination Meter Circuit, No.1
[01.1992 - 01.1996] EP81..S,SI; EP81..GLI,XL,XLI W(TACHOMETER) |
83149-10690 |
— | ||
|
83109
|
83109
83109-24010 Bulb, Combination Meter, No.1[01.1992 - 01.1996] EP81..GLI,S,SI,XL,XLI 12V 1.4W,GREEN CAP |
83109-24010 |
US $4.02 |
||
|
83109
|
83109
83109-24020 Bulb, Combination Meter, No.1[01.1992 - 01.1996] EP81..GLI,S,SI,XL,XLI 12V 3.4W W(GREEN CAP) |
83109-24020 |
from US $6.12 |
||
|
83110
|
83110
83110-1C040
Speedometer Assy
[12.1989 - 01.1992] EP81..SI; EP81..XLI W(TACHOMETER) |
83110-1C040 |
— | ||
|
83110
|
83110
83110-1C080
Speedometer Assy
[01.1992 - 01.1996] EP81..S,SI; EP81..LHD..(XL,XLI) W(TACHOMETER) |
83110-1C080 |
— | ||
|
83110
|
83110
83110-1C480
Speedometer Assy
[09.1993 - 01.1996] EP81..SI W(ECONO METER); EP81..LHD..XLI W(*TAC & ECONO METER) |
83110-1C480 |
— | ||
|
83132
|
83132
83132-1C070
Case, Combination Meter
[12.1989 - 01.1992] EP81..S,SI; EP81..XLI W(TACHOMETER); EP81..LHD..(GL,XL) W(*66 & TACHOMETER) OR W(TACHOMETER) |
83132-1C070 |
— | ||
|
83132
|
83132
83132-1C490
Case, Combination Meter
[01.1992 - 05.1994] EP81..SI; EP81..GLI,XLI W(TACHOMETER) |
83132-1C490 |
— | ||
|
83132
|
83132
83132-1M050
Case, Combination Meter
[05.1994 - 01.1996] EP81..SI; EP81..RHD W(TACHOMETER); EP81..XLI W(TACHOMETER) |
83132-1M050 |
— | ||
|
83133
|
83133
83133-10790
Plate, Combination Meter, No.1
[12.1989 - 01.1992] EP81..S,SI; EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
83133-10790 |
— | ||
|
83133
|
83133
83133-1C010
Plate, Combination Meter, No.1
[01.1992 - 01.1996] EP81..S,SI; EP81..GLI,XL,XLI W(TACHOMETER) |
83133-1C010 |
— | ||
|
83138
|
83138
83138-10430
Glass, Speedometer
[12.1989 - 01.1992] EP81..S,SI; EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
83138-10430 |
— | ||
|
83138
|
83138
83138-10490
Glass, Speedometer
[01.1992 - 01.1996] EP81..S,SI; EP81..GLI,XL,XLI W(TACHOMETER) |
83138-10490 |
— | ||
|
83243A
|
83243A
83243-10430 Gauge Sub-Assy, Fuel Receiver[12.1989 - 01.1992] EP81..S,SI; EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
83243-10430 |
US $122.30 |
||
|
83243A
|
83243A
83243-10770 Gauge Sub-Assy, Fuel Receiver[01.1992 - 01.1996] EP81..S,SI; EP81..GLI,XL,XLI W(TACHOMETER) |
83243-10770 |
US $75.71 |
||
|
83244
|
83244
83244-10250 Gauge Sub-Assy, Water Temperature Receiver[12.1989 - 01.1992] EP81..S,SI; EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
83244-10250 |
US $90.27 |
||
|
83244
|
83244
83244-10370 Gauge Sub-Assy, Water Temperature Receiver[01.1992 - 01.1996] EP81..S,SI; EP81..GLI,XL,XLI W(TACHOMETER) |
83244-10370 |
US $70.47 |
||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
US $1.28 |
||
|
9016750002
|
9016750002
90167-50002
Direct
|
90167-50002 |
— | ||
| replacement | |||||
|
9016750002
|
9016750002
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
