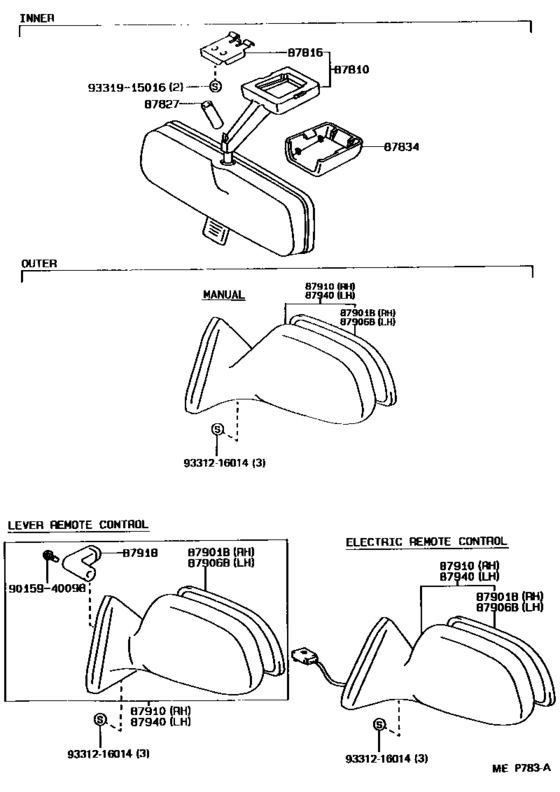

Mirror ([12.1989 - 01.1996] (8912-9601)) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-10250-03 Mirror Assy, Inner Rear ViewINNER REAR VIEW [12.1989 - 01.1996] EP81;EP80,NP80..GL,XL GRAY,TRIM1# |
87810-10250-03 |
US $126.67 |
||
| replacement | |||||
|
87810
|
87810
87810-12221-B1 Mirror Assy, Inner Rear View[12.1989 - 01.1996] EP81;EP80,NP80..GL,XL GRAY,TRIM1# |
87810-12221-B1 |
US $121.36 |
||
|
87810
|
87810
87810-10250-04 Mirror Assy, Inner Rear ViewINNER REAR VIEW [12.1989 - 01.1992] EP81;EP80,NP80..GL,XL BLUE,TRIM8# |
87810-10250-04 |
US $126.67 |
||
|
87816
|
87816
74372-30030 Spring, Inner Rear View Mirror[12.1989 - 01.1996] EP8#,NP80 |
74372-30030 |
US $2.97 |
||
|
87827
|
87827
87828-90A00
Absorber, Inner Rear View Mirror
[12.1989 - 01.1996] EP8#,NP80 |
87828-90A00 |
— | ||
|
87834
|
87834
87834-10010-03
Cover, Inner Rear View Mirror Stay Holder
[12.1989 - 01.1992] EP8#,NP80 GRAY,TRIM1#,8# |
87834-10010-03 |
— | ||
| replacement | |||||
|
87834
|
87834
87834-10010-B0 Cover, Inner Rear View Mirror Stay Holder[12.1989 - 01.1992] EP8#,NP80 GRAY,TRIM1#,8# |
87834-10010-B0 |
US $3.32 |
||
|
87901B
|
87901B
87931-1A290 Mirror Sub-Assy, Outer Rear View, RhOUTER REAR VIEW, RH [12.1989 - 01.1992] EP81..GL,S,SI; EP8#,NP80..LHD..(XL,XLI) DOOR MIRROR---LEVER REMOTE CONTROL TYPE |
87931-1A290 |
US $29.12 |
||
|
87906B
|
87906B
87961-1A370 Mirror Sub-Assy, Outer Rear View, LhOUTER REAR VIEW, LH [12.1989 - 01.1992] EP81..GL,S,SI; EP8#,NP80..LHD..(XL,XLI) DOOR MIRROR---LEVER REMOTE CONTROL TYPE |
87961-1A370 |
US $29.12 |
||
|
87910
|
87910
87910-10510
Mirror Assy, Outer Rear View, Rh
[12.1989 - 05.1994] EP81..S,SI; EP8#,NP80..LHD..3D..(XL,XLI) DOOR MIRROR---LEVER REMOTE CONTROL TYPE |
87910-10510 |
— | ||
|
87910
|
87910
87910-10730-D0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [10.1994 - 12.1994] EP81..LHD..3D JEANS PACKAGE,SUPER RED 2,3E5 |
87910-10730-D0 |
US $199.47 |
||
|
87910
|
87910
87910-10730-J0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [10.1994 - 12.1994] EP81..LHD..3D JEANS PACKAGE,DARK BLUE MM,8K0 |
87910-10730-J0 |
US $199.47 |
||
|
87910
|
87910
87910-10730-J1 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [10.1994 - 12.1994] EP81..LHD..3D JEANS PACKAGE,LT.BLUE M,8D8 |
87910-10730-J1 |
US $199.47 |
||
|
87918
|
87918
87918-10010 Knob, Control Outer MirrorCONTROL OUTER MIRROR [12.1989 - 01.1996] EP8#,NP80..GL,GLI,S,SI,XL,XLI |
87918-10010 |
US $8.74 |
||
|
87940
|
87940
87940-10510 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [12.1989 - 05.1994] EP81..S,SI; EP8#,NP80..LHD..3D..(XL,XLI) DOOR MIRROR---LEVER REMOTE CONTROL TYPE |
87940-10510 |
US $187.82 |
||
|
87940
|
87940
87940-10720-D0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [10.1994 - 12.1994] EP81..LHD..3D JEANS PACKAGE,SUPER RED 2,3E5 |
87940-10720-D0 |
US $199.47 |
||
|
87940
|
87940
87940-10720-J0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [10.1994 - 12.1994] EP81..LHD..3D JEANS PACKAGE,DARK BLUE MM,8K0 |
87940-10720-J0 |
US $199.47 |
||
|
87940
|
87940
87940-10720-J1 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [10.1994 - 12.1994] EP81..LHD..3D JEANS PACKAGE,LT.BLUE M,8D8 |
87940-10720-J1 |
US $199.47 |
||
|
9015940098
|
9015940098
90159-40098
New Genuine Part
|
90159-40098 |
— | ||
|
9331216014
|
9331216014
93312-16014 SCREW W/WASHER |
93312-16014 |
US $0.52 |
||
|
9331915016
|
9331915016
93319-15016 Screw, Cover Set, No.1 |
93319-15016 |
from US $1.41 |
||
